2-34

empty cartridge case over the lever arm to increase
the amount of leverage applied.

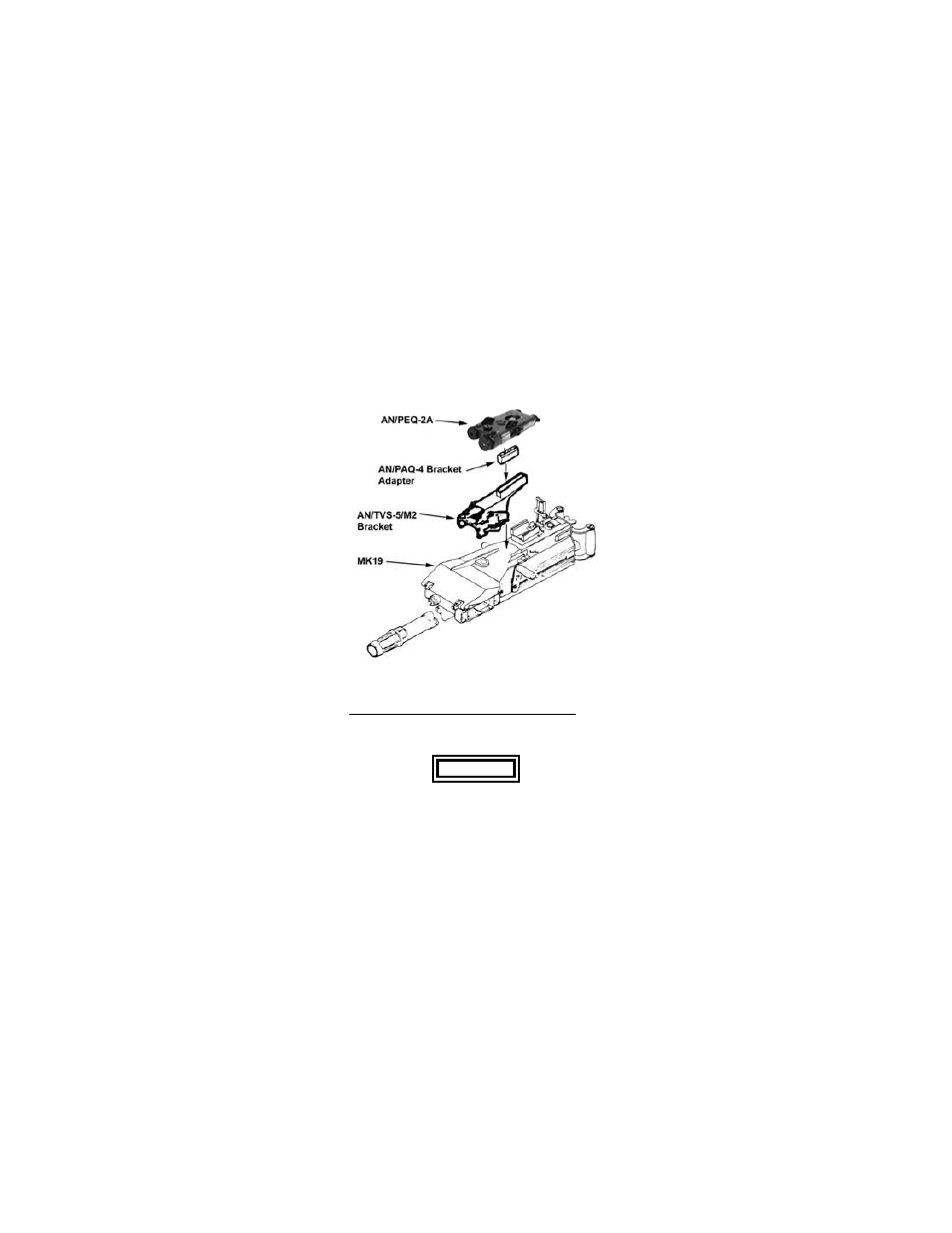

Figure 2-19 MK19 Using AN/TVS-5 Mounting Bracket

and Bracket Adapter

2.3.16 M4/M16 with MILES Mounting Procedure.
The AN/PEQ-2A is attached to the M16A2, M4/M4A1 or M4
MWS (Top Rail) using the Training Extender Bracket.

WARNING

Be sure the weapon is CLEAR and SAFE before
proceeding.
