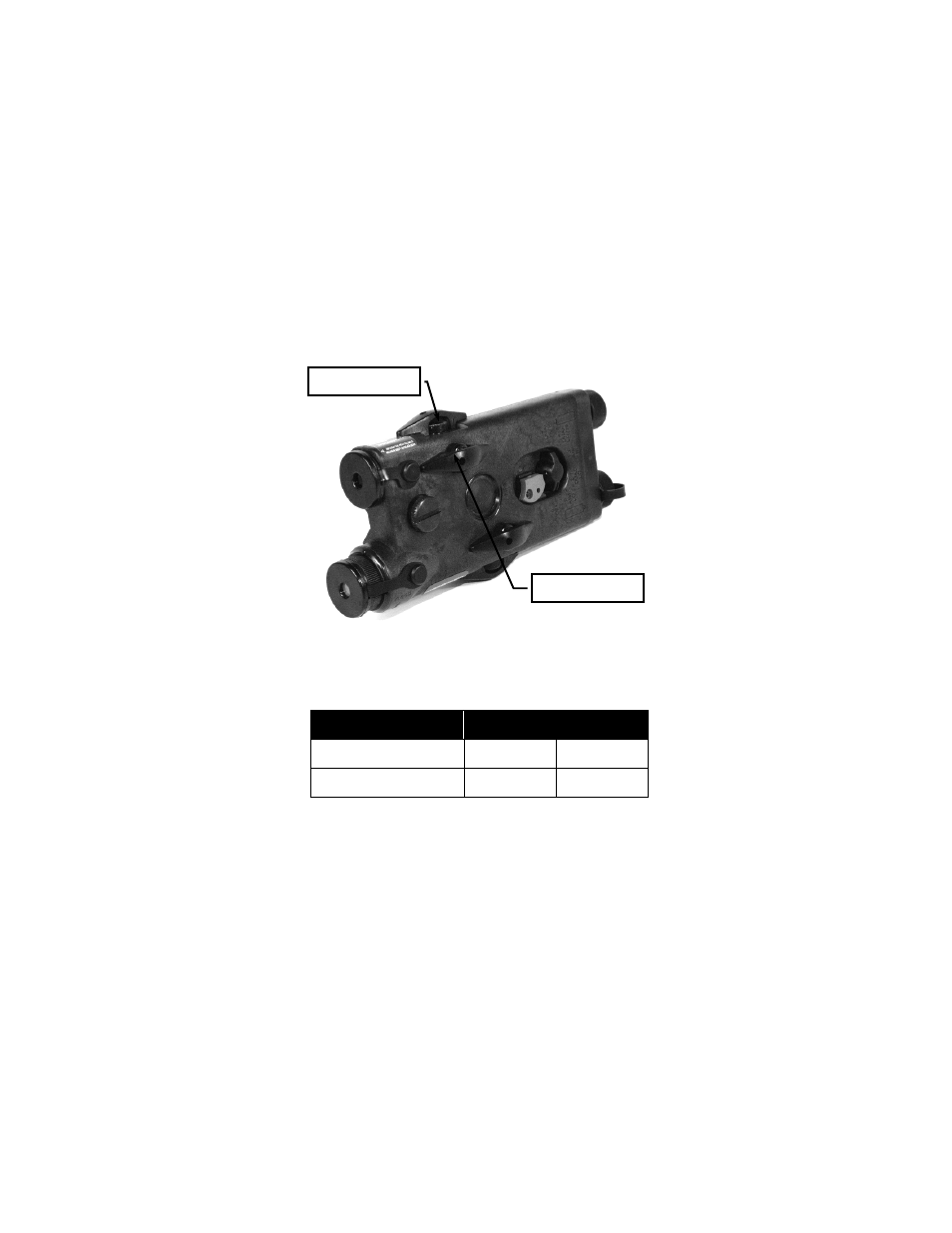

Figure 2-24 Aim Laser Adjusters (Left Side Mounted)
Table 2-2 Shot Group Movement for Aim Lasers
(Left Side Mounted)
Adjuster
Rotation
Shot Group
Movement
Top Adjuster
Elevation
CW
CCW
Up
Down
Side Adjuster
Windage
CW
CCW
Left
Right
TOP ADJUSTER
SIDE ADJUSTER
