2-10

c. Mount the AN/PEQ-2A to the Rail Grabber Bracket

as shown in Figure 2-6. Turn the thumbscrew
clockwise to tighten. Use a screwdriver or similar
tool in the slot of the thumbscrew to fully secure the
AN/PEQ-2A to the Rail Grabber Bracket.

d. Install the Remote Cable Switch in a convenient

location (see paragraph 2.5.3).

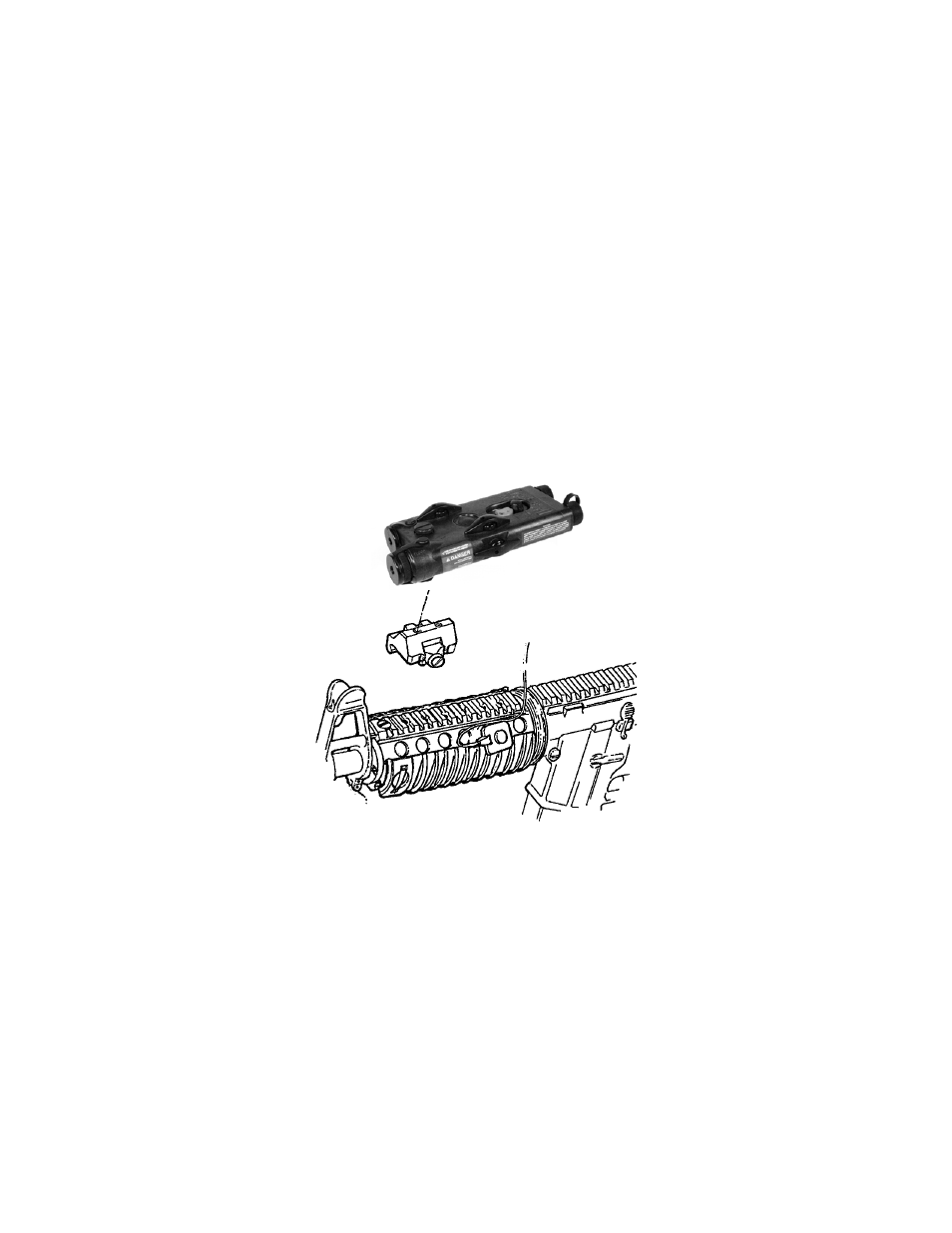

Figure 2-6 M4/M16A4 MWS Using Insight Rail Grabber

Bracket
