2-37
2.4 BORESIGHTING / ZEROING PROCEDURES
The AN/PEQ-2A is equipped with boresight adjusters for
independent adjustment of the aiming and illumination
beams in both elevation and azimuth.

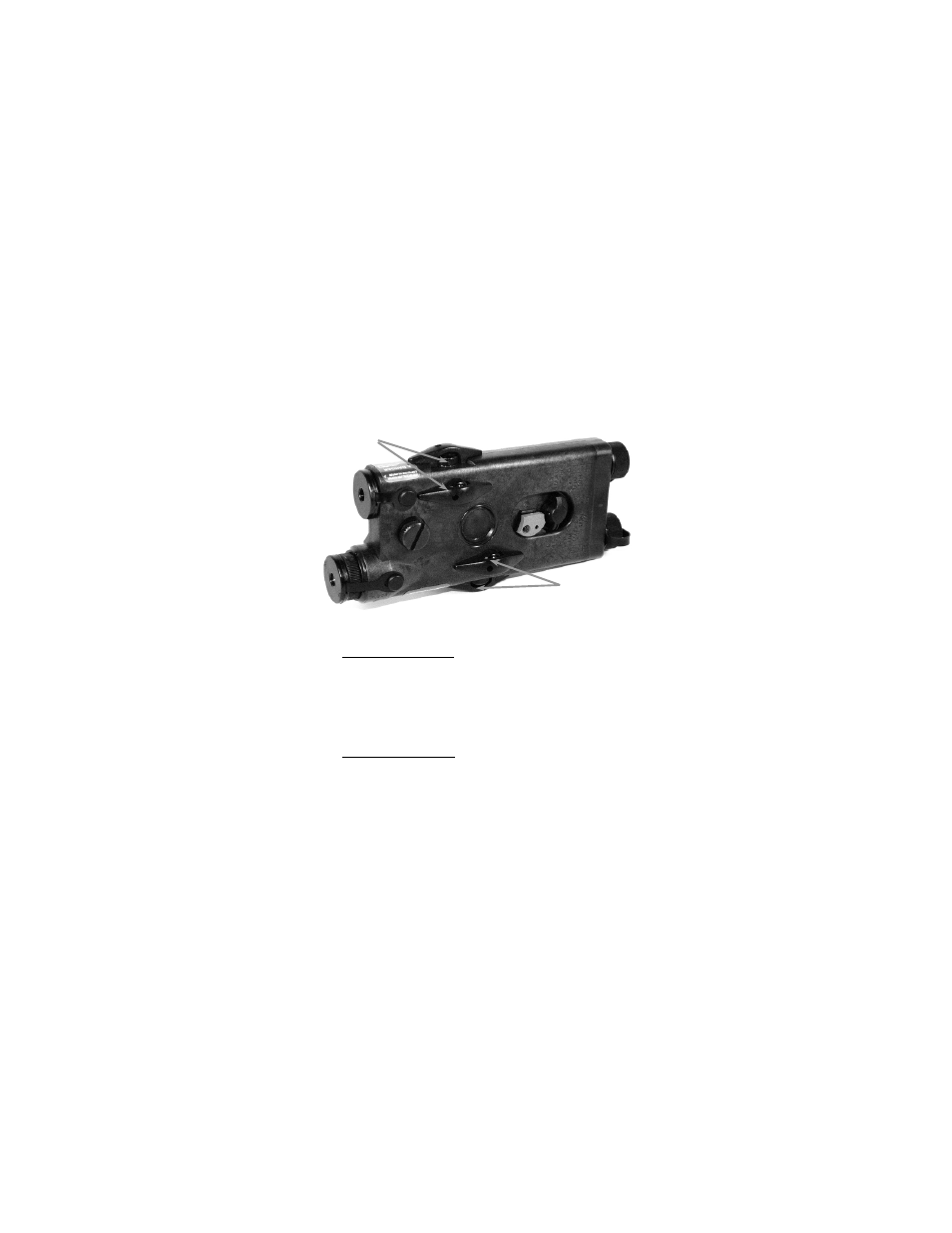

Figure 2-22 Boresight Adjusters
2.4.1 Aim Laser Adjusters. Table 2-1 indicates the direction
of adjuster rotation and resultant shot group movement when
the AN/PEQ-2A is Top Mounted. Tables 2-2 and 2-3
indicate the direction of adjuster rotation and resultant shot
group movement when the AN/PEQ-2A is Side Mounted (left
/ right).
2.4.2 Illuminator Adjusters. Table 2-4 indicates the direction
of adjuster rotation and resultant illumination beam
movement for centering the illumination area on the aiming
beam when the AN/PEQ-2A is Top Mounted. Tables 2-5
and 2-6 indicate the direction of adjuster rotation and
resultant illumination beam movement for centering the
illumination area on the aiming beam when the AN/PEQ-2A
is Side Mounted (left / right).
Aim Laser
Adjusters
Illuminator
Adjusters
