2
Using the Software
Error and status messages
The right side of the users interface displays a series of warnings and
status messages. These are described as follows:
Sensor not zeroed
This message is displayed when the application first detects a sensor
or the sensor needs to be re-zeroed. Refer to “Zero your sensor” on
page 26 for more information. Refer to Figure 37 on page 42.
Sensor frequency, offset and duty cycle enabled
These message let you know your measurement frequency setting. It
also shows if offset has been enable along with the duty cycle. Refer
to Figure 37 on page 42.

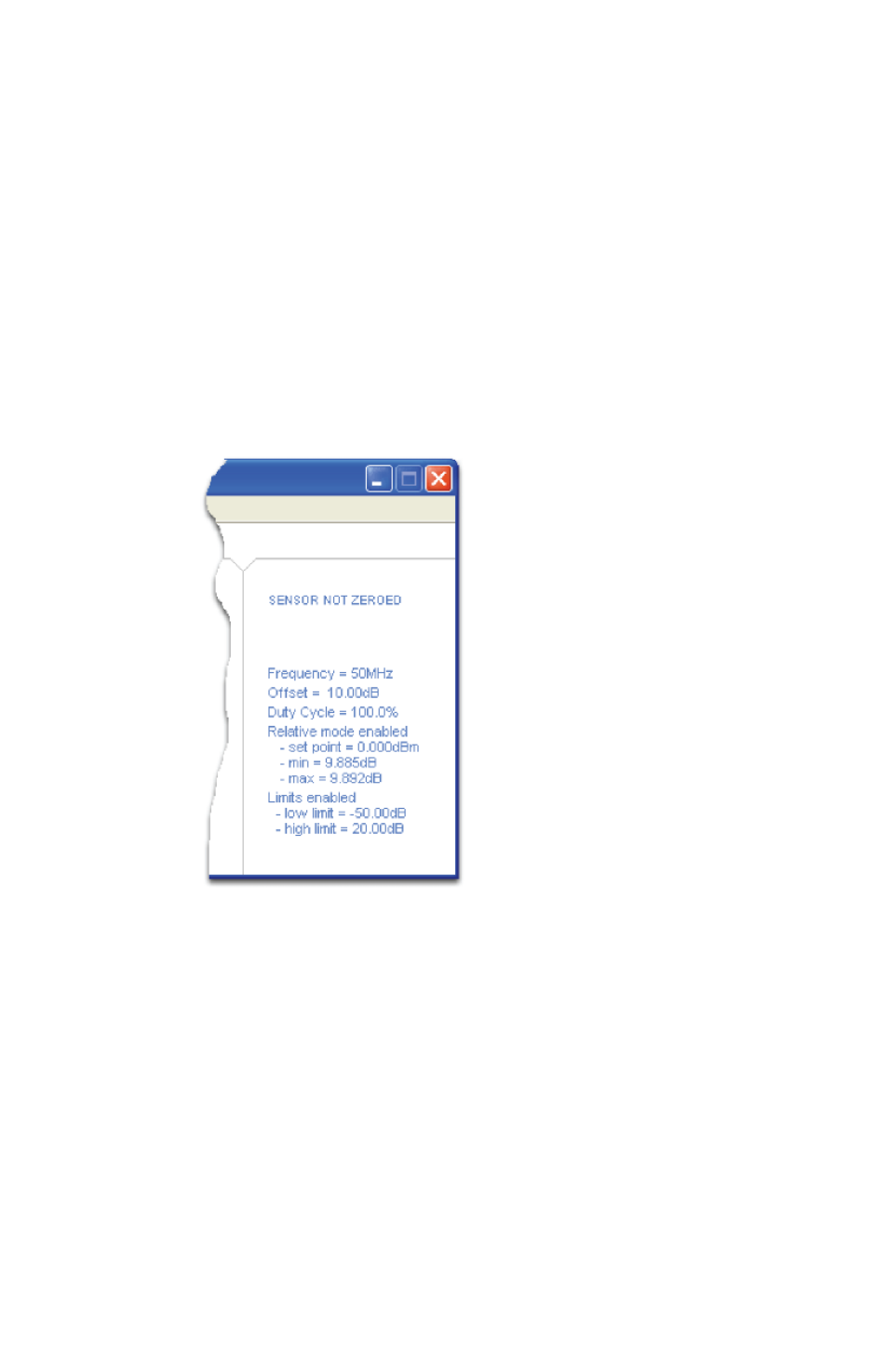

Figure Frequency, Offset and Duty Cycle messages
