Connecting multiple sensors
It is possible to connect and monitor multiple sensors. The number
of sensors you can connect to your PC depends on your system
configuration. For example, you may chose to use a USB hub
interface. If this is the case, then carefully read the USB hub
manufacturer’s instructions when connecting and configuring
external USB devices.
Refer to Figure 17 “A typical multiple sensor configuration” on page
23 for a diagram of a typical multiple sensor configuration.

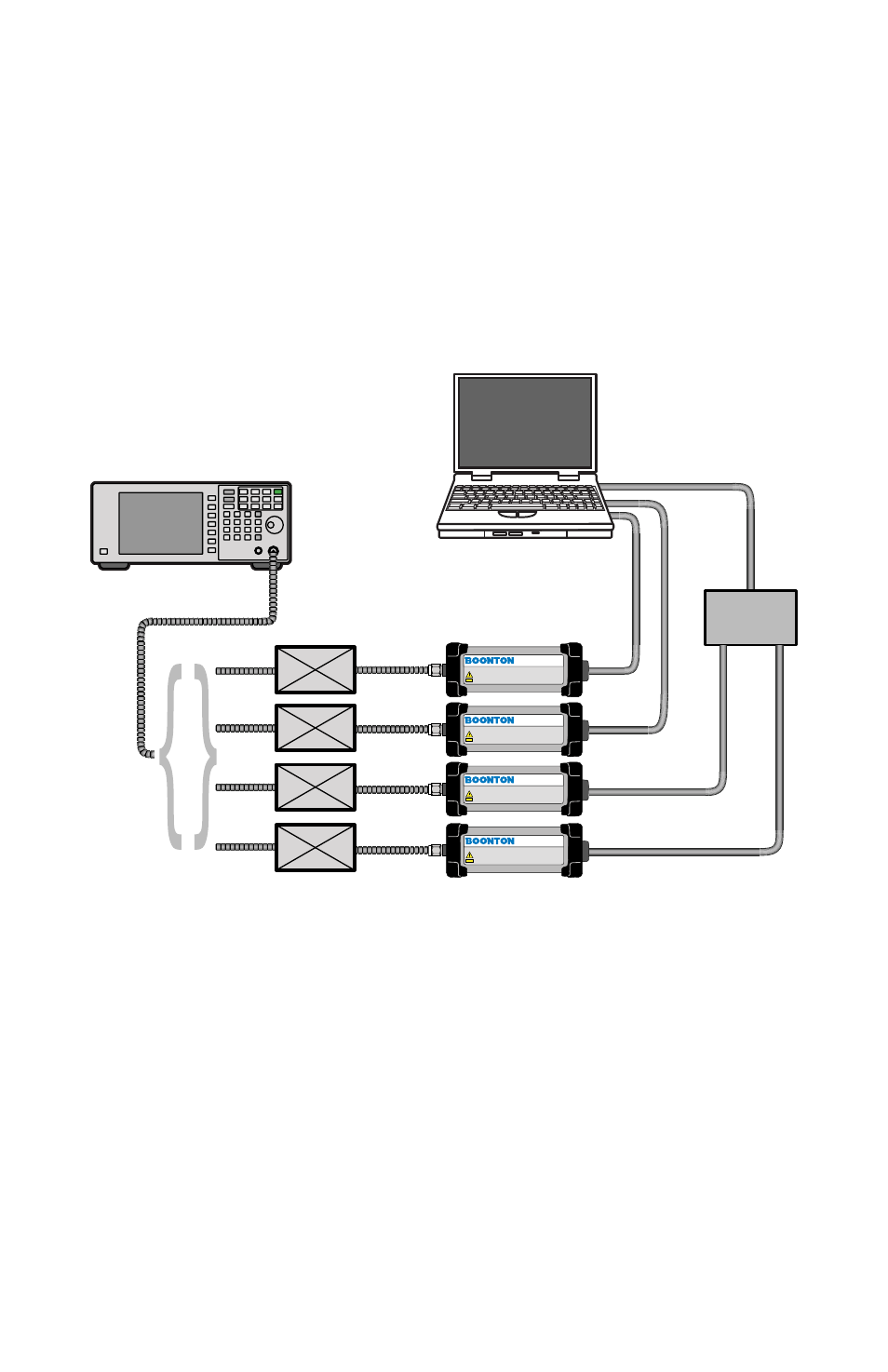

Figure 1 A typical multiple sensor configuration
Your PC
Test signal source
USB
Hub
Units
Under Test (UUT)
USB
Cables
USB
Cables
Signal cables
52000 Sensors
52012 CW Power Sensor
ESD
Earth ground must be connected Max pwr +23dBm avg, +30dBm peak for 1us +/- 10.0VDC Max.
10MHz - 12.4GHz
10nW - 100mW (-50dBm to 20dBm)
52012 CW Power Sensor
ESD
Earth ground must be connected Max pwr +23dBm avg, +30dBm peak for 1us +/- 10.0VDC Max.
10MHz - 12.4GHz
10nW - 100mW (-50dBm to 20dBm)
52012 CW Power Sensor
ESD
Earth ground must be connected Max pwr +23dBm avg, +30dBm peak for 1us +/- 10.0VDC Max.
10MHz - 12.4GHz
10nW - 100mW (-50dBm to 20dBm)
52012 CW Power Sensor
ESD
Earth ground must be connected
Max pwr +23dBm avg, +30dBm peak for 1us +/- 10.0VDC Max.
10MHz - 12.4GHz
10nW - 100mW (-50dBm to 20dBm)
