NewLife ® Elite Service Manual
A-6

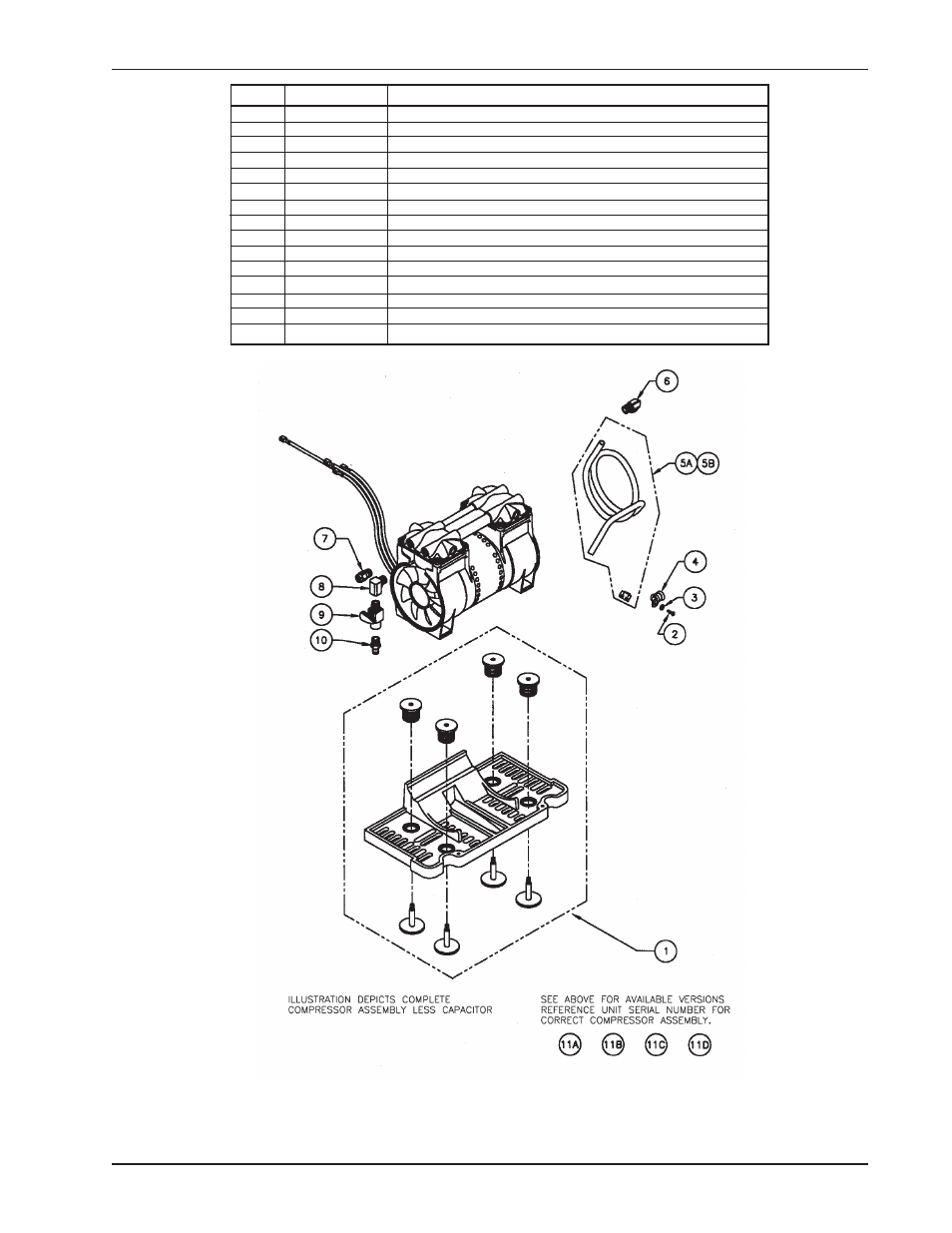

Figure A.6: Compressor Assembly
Ref No. Part No. Description
1 KI070-1 Kit, Vibration, Spring Mount includes bumpers/capacitor bracket (not shown)
2 SC003-2 #6 Phillips 3/8” Long
3 WA002-8 #6 Washer
4 CL007-1 Clamp, Hose 3/8”
5A HX002-1 Heat exchanger, Medserv
5B HX002-2 Heat exchanger (Elite)
6 F0104-1 Fitting, brass, Comp. Align. 3/8”
7 VA005-1 Valve relief, ¼ mpt
8 F0045-2 Fitting, brass, street elbow ¼” mpt
9 VA008-1 Valve, plug ¼ (EcoCheck only)
10 F0006-4 Fitting, Brass, DBL Barb ¼” x ½”
11A CO006-1R(T/N) Compressor Assy, Complete 120/60
11B CO006-4R(T/N) Compressor Assy, Complete 220/50
11C CO006-9R(T/N) Compressor Assy, Complete 220/50 Dual 6
11D CO006-10R(T/N) Compressor Assy, Complete 120/60 Dual 6
