12
Hydraulic Downforce
Quick Reference Guide
AL: 2006350 ENG Rev B
Is a pressure
displayed on the
valve’s gauge?

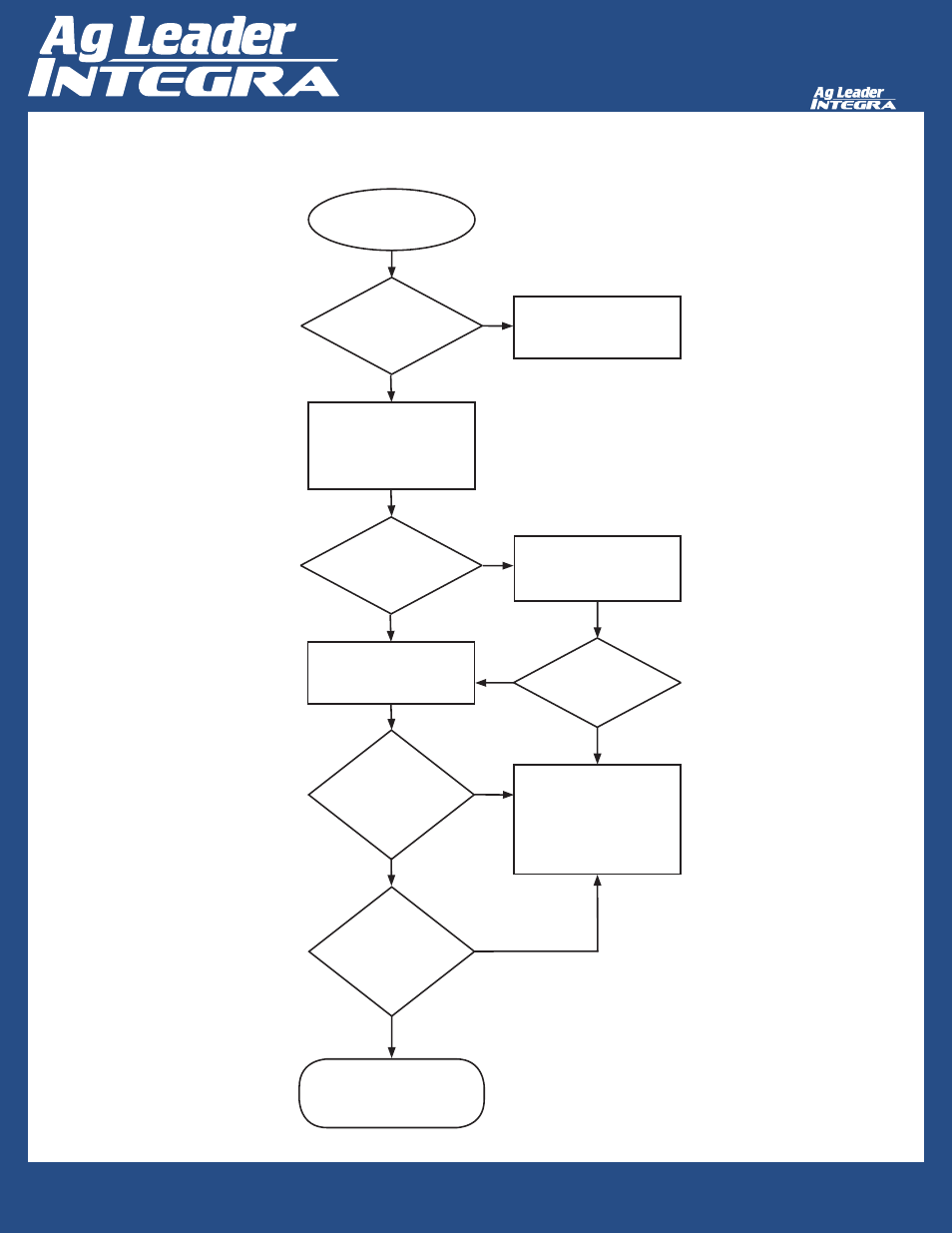

Troubleshooting Step 4: Hydraulics
From
the
display, Can
pressure be released
from the system using the
down arrow in manual
control?
Yes
No
Start Tractor and engage
hydraulics
Move red circular override
knobs to the inner position
(automatic control).
Yes
Troubleshooting Complete.
System should be in field-ready
state.
Is Tractor
running with hydraulics
engaged?
Start
At the down force control
valve, move the red circular
manual override knobs to
the other position (electronic
control override).
Yes
Adjust manual override
pressure using allen head
adjustment just above the
electronic PWM valve.
Is
pressure still
at 0?
No
No
Ensure Pressure, Return and
Tank lines are completely
connected. Ensure SCV
remote is engaged in the
correct direction. Ensure
system is set for continuous
flow (motor mode).
No
Yes
No
From
the
display, Can
pressure be increased
in the system using the up
arrow in manual
control?
Yes
