Hydraulic Downforce
Quick Reference Guide
AL: 2006350 ENG Rev B
Lights
present on Down
Force Module?

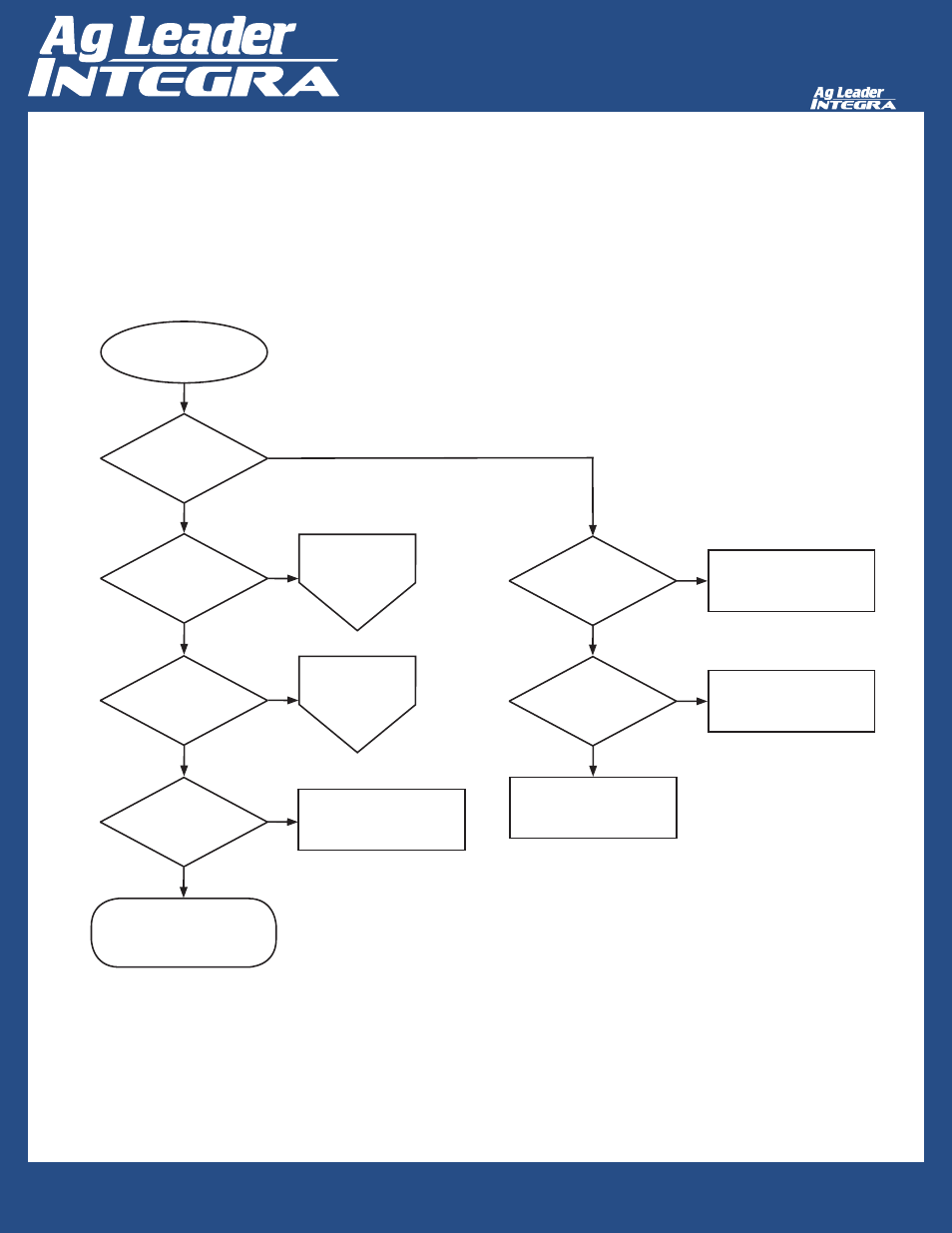

Troubleshooting Step 2: Power and Cables
Start
Are all lights
green?
Troubleshooting Complete.
System should be in field-ready
state.
Go to Step 5:
Indicator Lights
Yes
Yes
No
Correct cabling errors to
match Figure 1: Cable
Diagram.
Are row module
lights green?
Yes
Does
cabling match
the Figure 1: Cable
Diagram?
Yes
Connect CAN A
Display powered
on?
Yes
No
Check power control relay.
No
Go to Step 5:
Indicator Lights
No
Is
CAN A
connected?
Yes
Power on Display
No
No
