Section 4: SCSI Bridge Electronics
*Set-Up*
Release
Button
to Start
Enter
Set-Up 1
PRESS to
Select
Enter
Set-Up 2
PRESS to
Select Enter
Set-Up 3
PRESS to
Select
Exit
Set-Up
PRESS to
Select
Mode
Switch

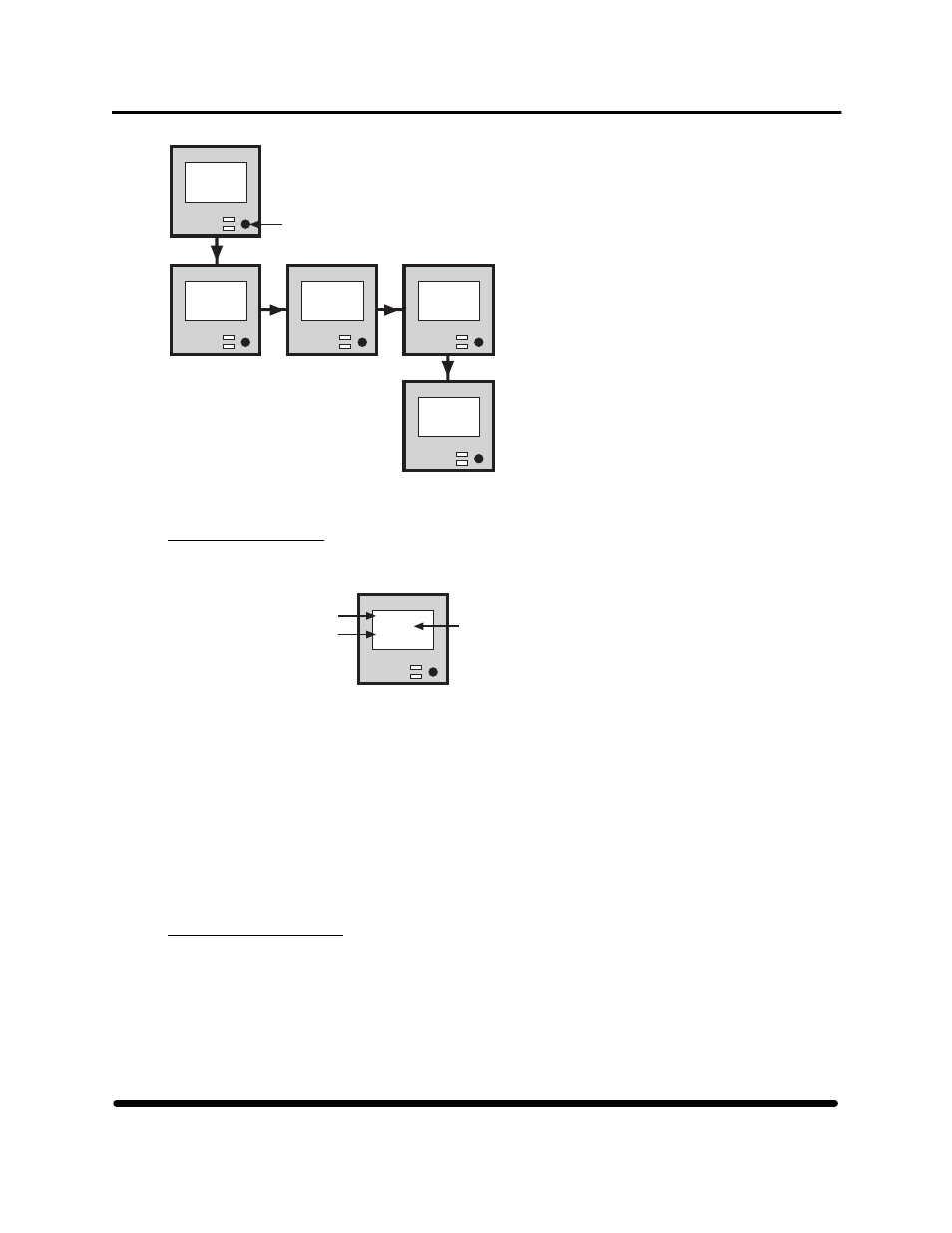

Figure 50
Tape Drive setup menus
2.5.1 Setup
Overview
2.5.1.1 Within each menu, the individual items generally take this format on the 4-line LCD:
SCSI ID:
[00]
PRESS to
Alter Parameter
Setting
Instruction
LCD Setup Format
Figure 51 Tape drive LCD setup format
1. PARAMETER denotes the configuration being reviewed or edited.
2. SETTING (in SETUP 1 and SETUP 2) is the value that you can change.
3. INSTRUCTION describes what action should be taken if the mode switch is
pressed. If the mode switch is inactive for four seconds, the display changes. In
general, the menu system is designed to show continuously the current settings
with the instruction PRESS to Alter, which lets the operator alter the value.
2.5.2 Changing a Setting
Depending on the menu item, alter settings by the appropriate method that follows. When the
instruction reads PRESS to Alter, you have the option of exiting from the editing mode or
remaining in the editing mode to review the settings.
