Section 1: General Information
O l
Copper
SCSI Cable
to PMF CRU
SCSI Port
SCSI
Terminator
on Port

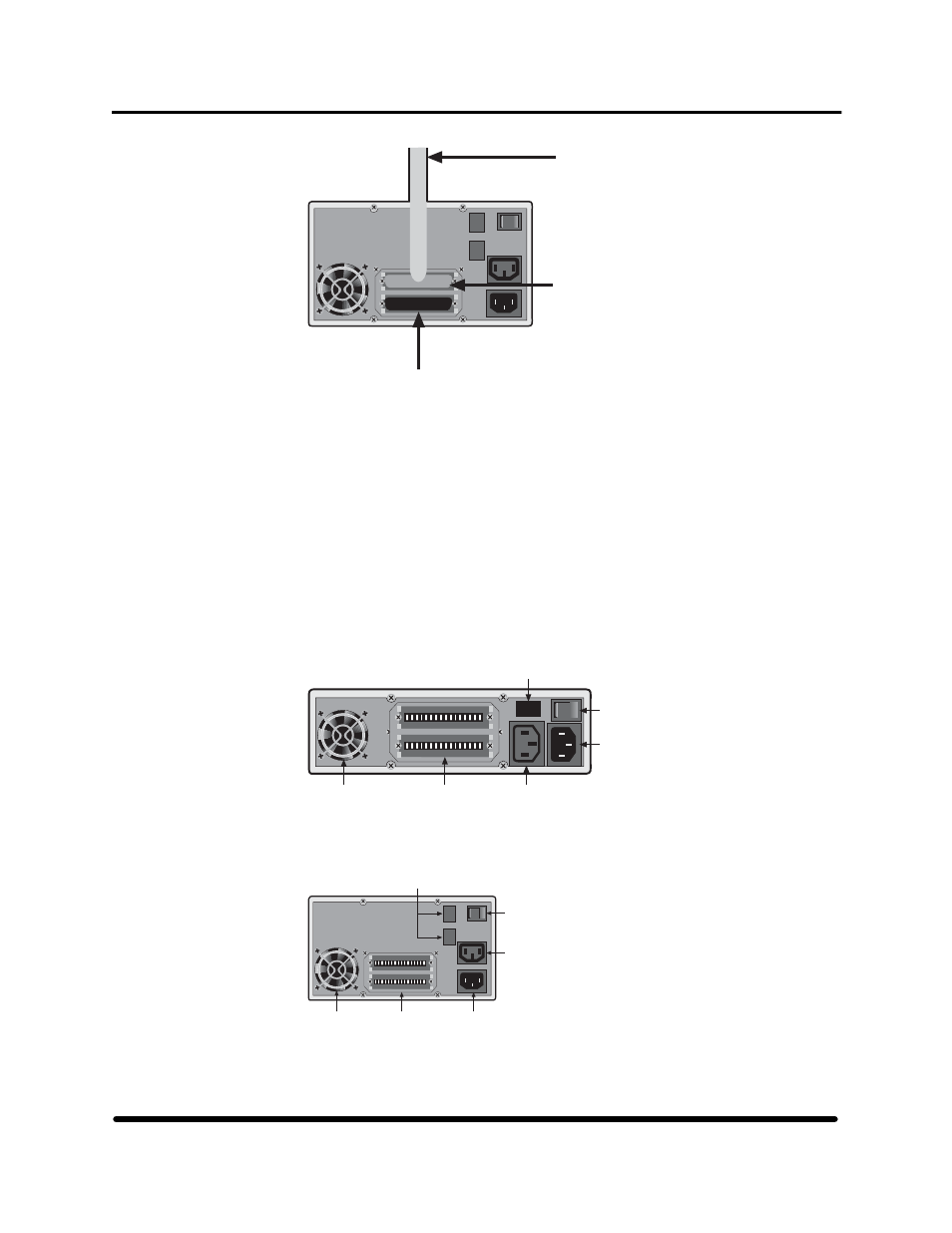

Figure 7
Connecting the SCSI cable to the drive
3.2.3.4 Bringing the Tape Drive Online
After the 5242 or 5242-ACL tape drive has been installed and the cables attached, bring the
tape drives online. For each tape drive:
1. Verify the AC power cord for the tape drive is plugged into an external power source.
2. Check that the 5242-ACL magazine is not in the drive.
3. Apply power to the tape drive by setting the AC power switch to the ON (|) position. To
power off the tape drive, set the AC power switch to the OFF (0) position. See Figures 8
and 9.
O l
Fan AC Out
Power
Connector
AC In
Power
Connector
Power
Switch
SCSI
Connectors
AC Out
Power
Connector
Blank
Figure 8
AC power switch on the 5242 tape drive
O l
Fan SCSI
Connectors
AC In
Power
Connector
AC Out
Power
Connector
Power
Switch
Blank
Figure 9
AC power switch on the 5242-ACL tape drive
HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 11 HP Part Number 528296-03 July 2005
