• Connection: The text box on the left indicates the topology. This text box can display FC-AL or
P-to-P (point-to-point).
Use the list on the right to specify the topology.
CAUTION: Some fabric switches require you to specify the point-to-point topology. If your system
uses a fabric switch, check the fabric switch’s documentation to determine whether the fabric
switch requires the point-to-point topology.
• Set: Applies settings in the Change Port Mode box to the Port table.
• Clear: Cancels settings in the Change Port Mode box.
• If you select an iSCSI channel adapter, this box displays items related to iSCSI ports and iSNS servers
(for more information, see ” iSCSI port and iSNS server settings ” on page 42).

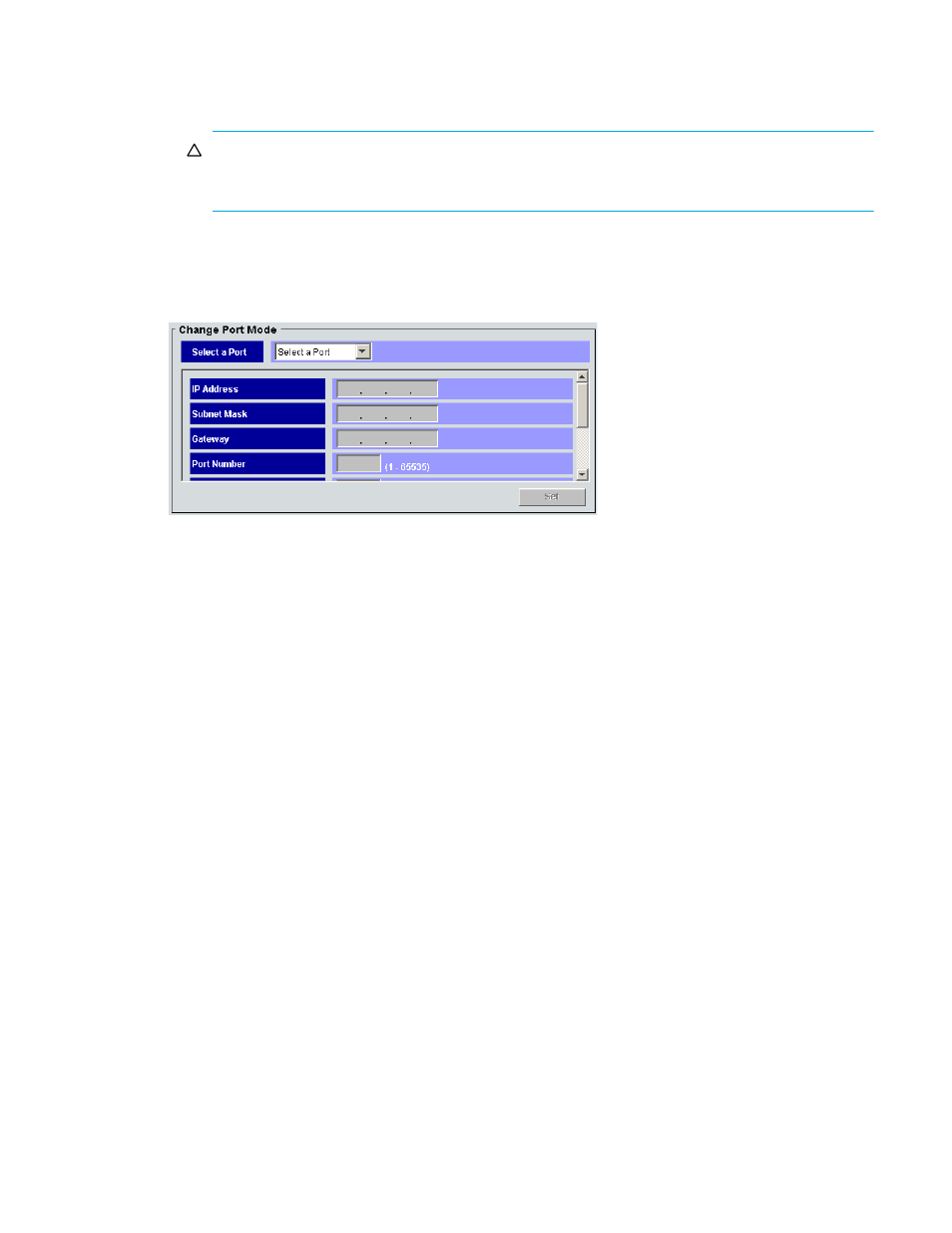

Figure 28 Change Port Mode box (iSCSI port and iSNS server)
• Select a Port: To change a port’s settings, select the port from this list.
• IP Address: Selected port’s IP address.
• Subnet Mask: Subnet mask.
• Gateway: Gateway address.
• Port Number: Port number.
• Keep Alive Timer: Keep-alive timer value. The unit is seconds.
• iSNS Server: Specifies whether to register information about the iSCSI port in the iSNS server.
• Enable: Registers the iSCSI port.
• Disable: Does not register the iSCSI port.
• IP Address of iSNS Server: iSNS server’s IP address.
• Port Number of iSNS Server: iSNS server’s TCP port number.
• Set: Applies settings in the Change Port Mode box to the Port table.
CHN list
This list appears if you select an icon under the NAS folder in the Package tree. CHN is the channel
adapter for NAS.
