Viewing Advanced Statistics
This page displays information that may be used for the advanced troubleshooting of switch-related
issues.
To view the advanced statistics, click Advanced Statistics.
The Advanced Statistics page appears.
The Advanced Statistics page displays the following information:
To clear the statistics on any page:
1. Click the Clear Statistic Data check box.
2. Click Submit.
A message box is displayed confirming the request.
3. Click OK to clear the statistic data.

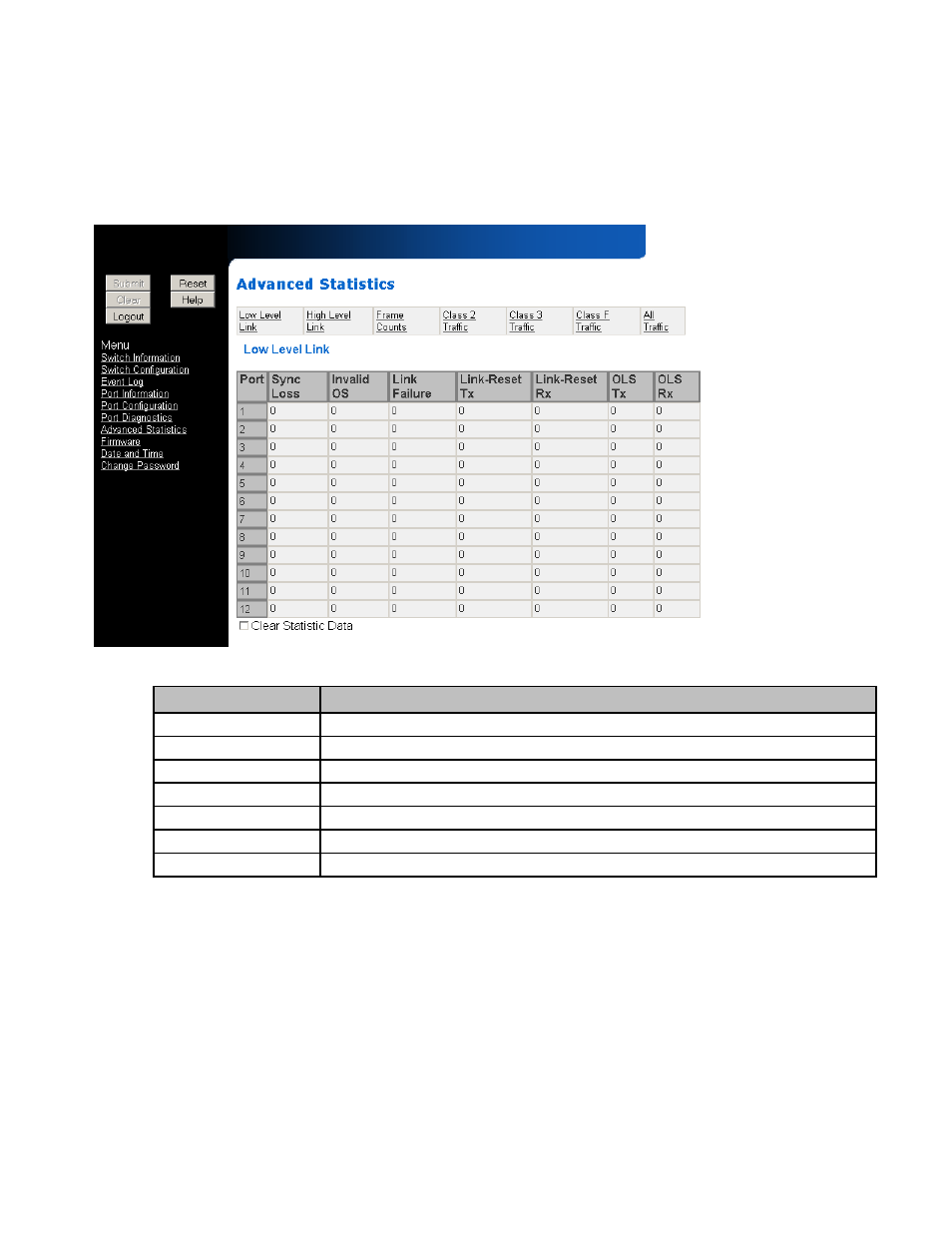

Figure 14 Advanced Statistics page
Diagnostic Description
Low-level Link Low-level FC-1 traffic information.
High-level Link High-level FC-1 traffic information.
Frame Counts Frame count (FC-2 level traffic) information.
Class 2 Traffic Class-2 Fibre Channel data as defined by the current Fibre Channel specification.
Class 3 Traffic Class-3 Fibre Channel data as defined by the current Fibre Channel specification.
Class F Traffic Class-F Fibre Channel data as defined by the current Fibre Channel specification.
All Traffic All defined classes of Fibre Channel traffic.
