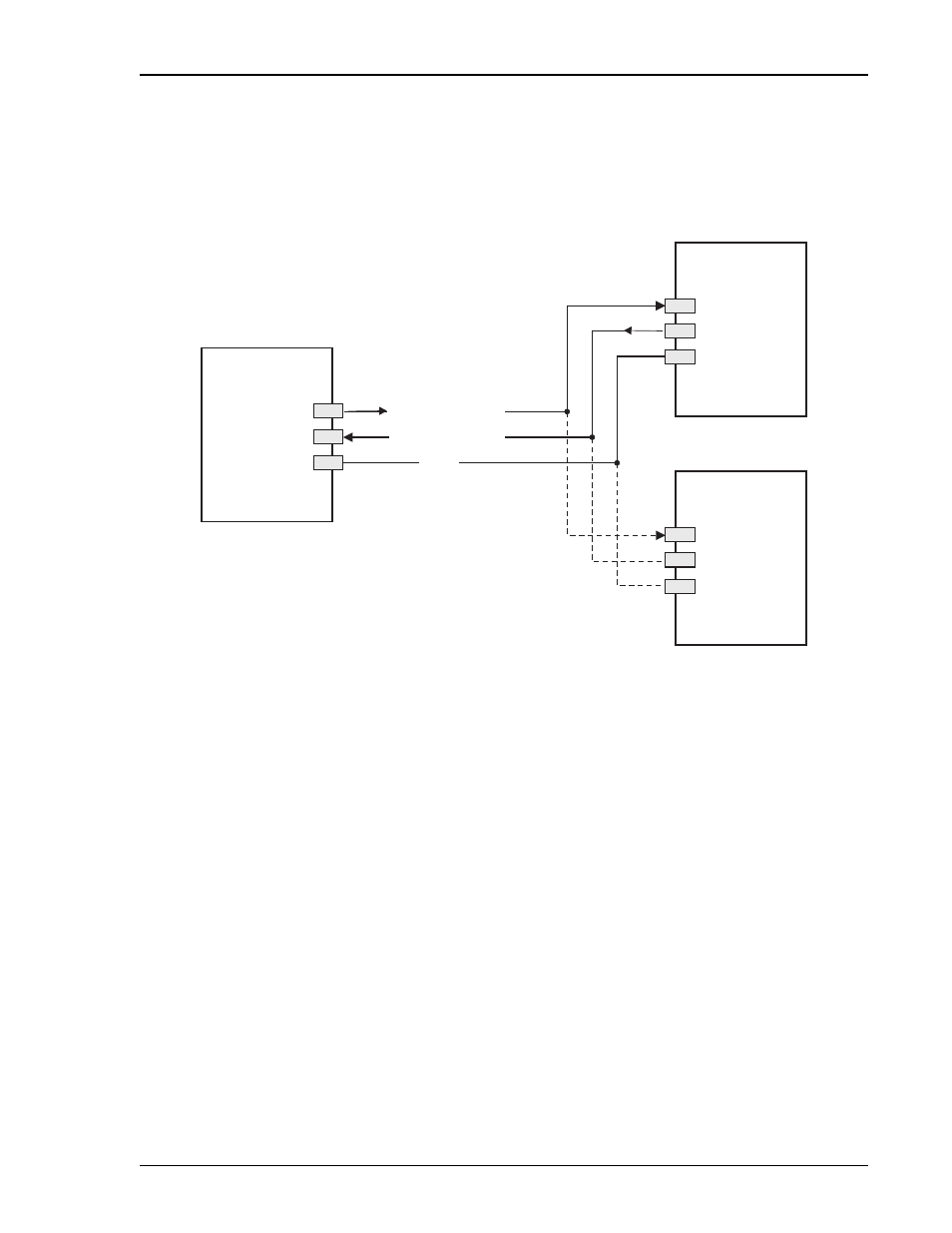

Figure 35 shows the pinout for the craft port connector and its connection to a DB-9 or DB-25 connector on a
maintenance terminal.
Figure 35. RS-232 Craft Port Pinouts
H2TU-C-319
DB-9 Connector
(DCE)
RD (Receive Data)
TD (Transmit Data) 2
3
5
DB-9 Connector
(DTE)
DB-25 Connector
(DTE)
2
3
5
2
3
7
GND
Terminal
Terminal
