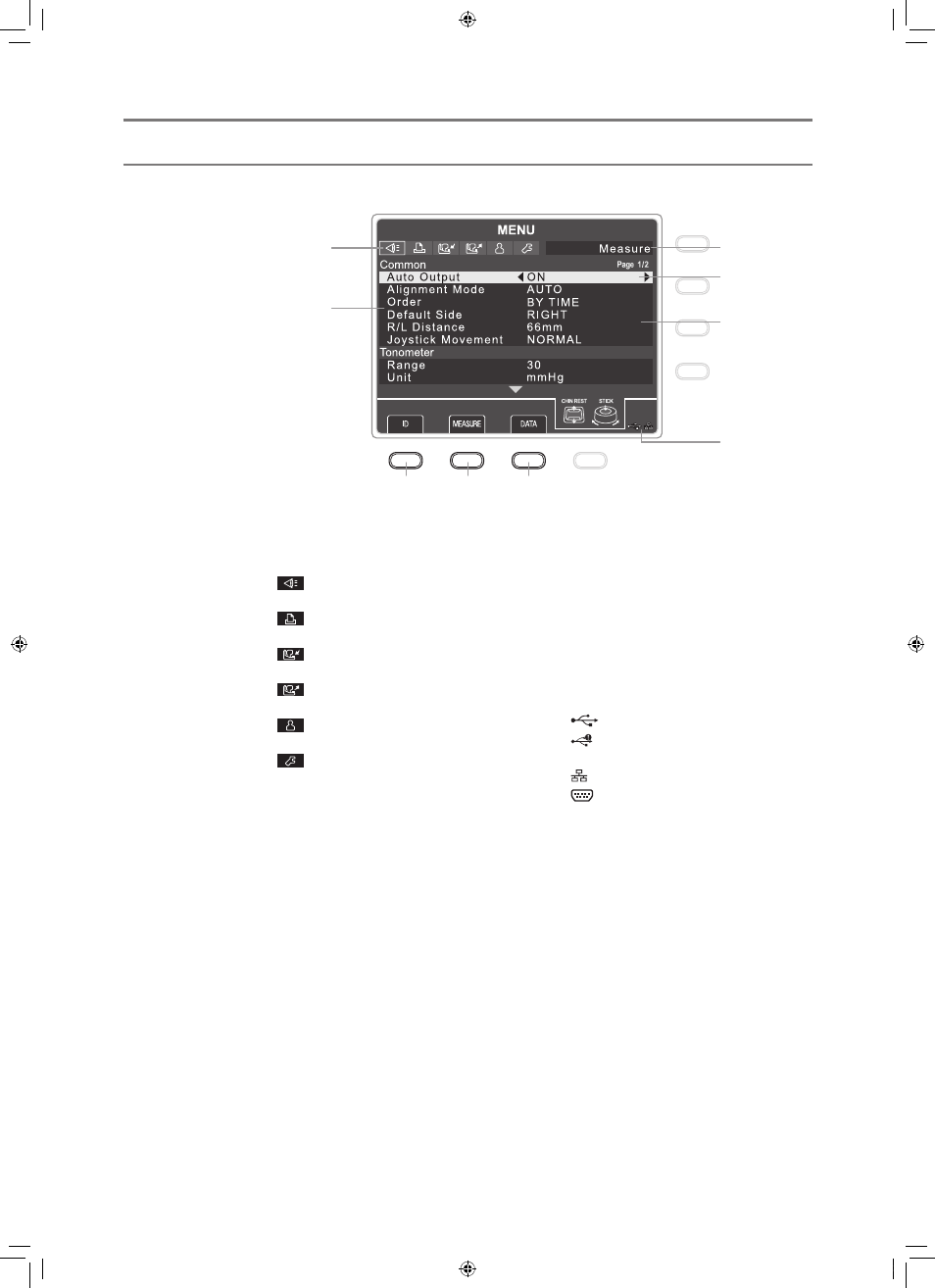

MENU Screen
Perform the settings for measurements, printing, and operating the measurement unit.
7 8 6
9
3
4
5
1
2
1 Settings tab
The items to set are grouped according to their
purpose. Selected items are shown in orange.
Measure tab: Settings for intraocular
pressure measurements
Print tab: Settings for printing with the built-
in printer
Input tab: Settings for inputting data from an
external device
Output tab: Settings for outputting data to
an external device
Patient tab: Settings for patient ID and
patient No.
Other tab: Settings for time, power saving
mode, and the LCD, and shows information about
the firmware.
2 Setting items
The setting items for each tab are displayed.
3 Name of the selected tab
4 Cursor
Shows the position of the selected setting value,
setting item, and tab. They light orange when
selected.
5 Settings
The settings for each setting item are displayed.
6 ID key
Press to switch to the PATIENTID screen.
7 MEASURE key
Press to switch to the Measurement screen.
8 DATA key
Press to switch to the DATA screen.
9 External device connection status
Shows the status of external device connection.
: USB device is connected
: Error has occurred in USB device
connection
: LAN is connected
: RS-232C device is connected
No display: No connection
