APPENDIX

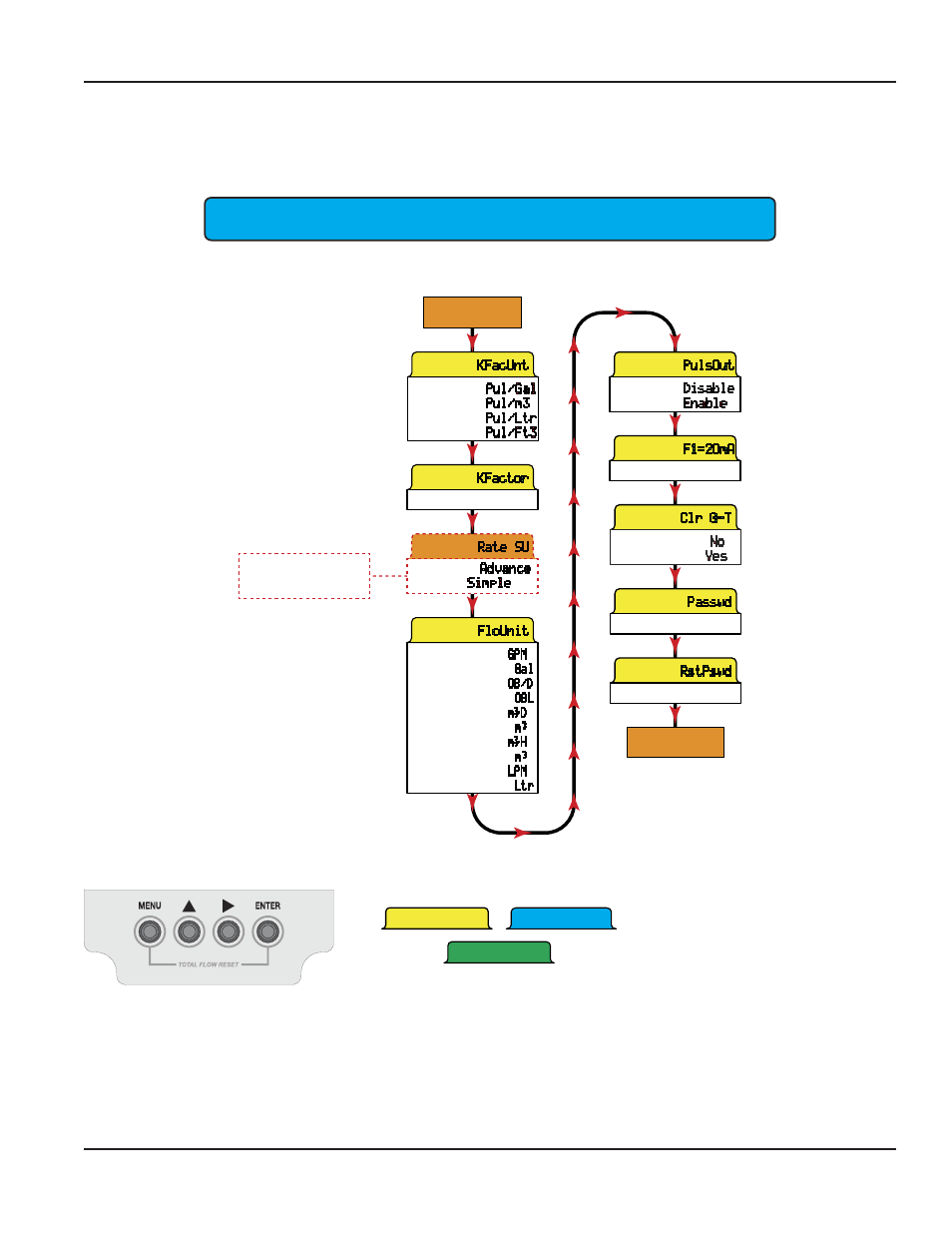

Menu Maps
Rate SU can only
be accessed from
the Advanced menu.
Standard ER-500 - Rate SU is set to Simple
Disabled
Enabled
PulsOut
Pulse Output
Numeric Entry
KFactor
K-Factor Value
Pulses/Gallon
Pulses/M³
Pulses/Liter
Pulses/Ft³
KFacUnt
K-Factor Unit
Rate SU
Rate Unit Setup
Advanced
Simple
START
Numeric Entry
Passwd
Password
Numeric Entry
RstPswd
Reset Password
START
Flo Unit
Rate/Total Units
Gallons/Min
Gallons
Oil Barrel/Day
Barrels
Meters³/Day
Meters ³
Meters³/Hour
Meters³
Liters/Min
Liters
Basic Advance
Sub Menu
Press and Hold MENU button
for Extended settings
F1=20mA
20mA Frequency
Numeric Entry
Clr G-T
Clear Grand Total
No
Yes
