Roll-Over

Indicator

Totalizer

Mode

Total

Roll-Overs

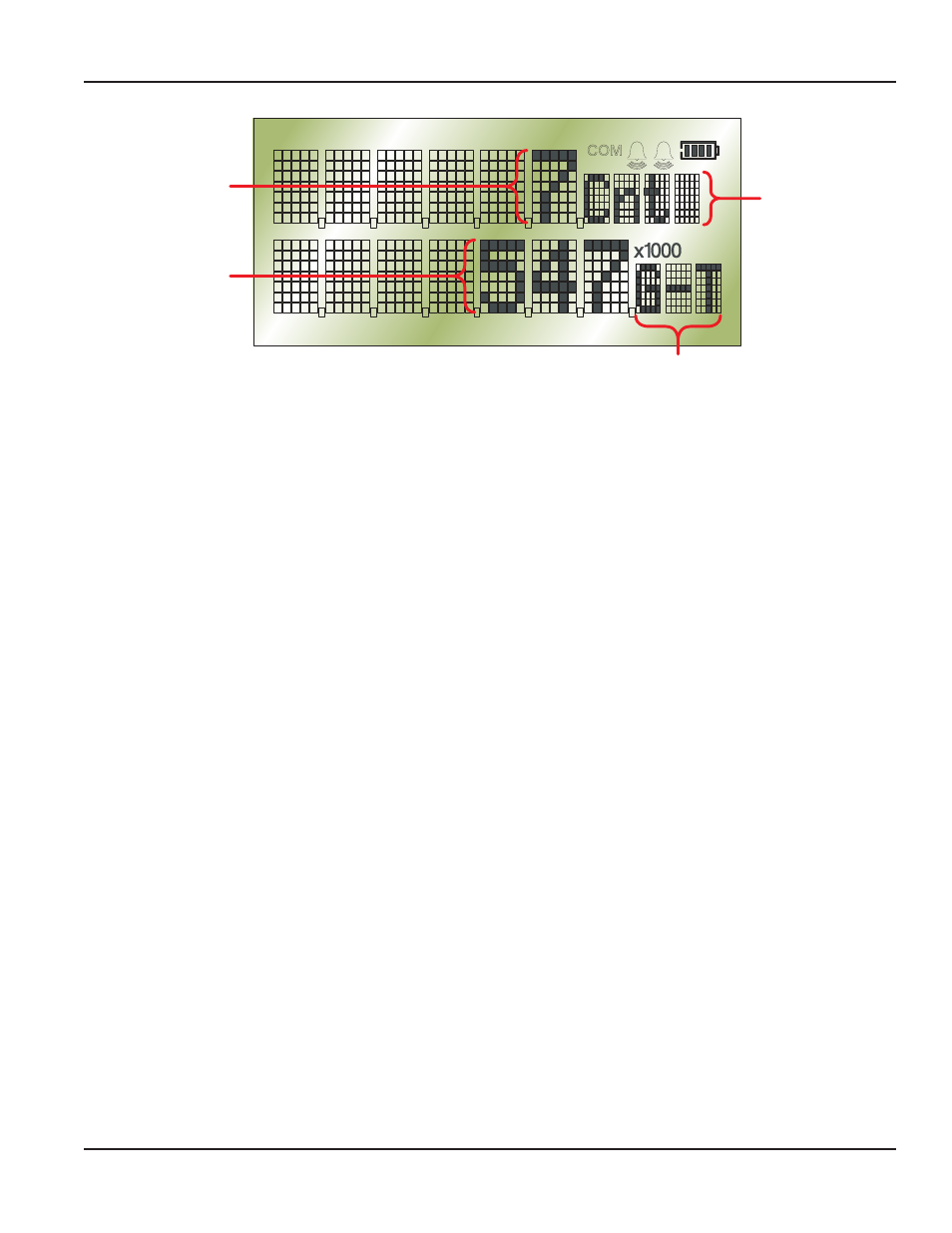

Figure 12: Grand total

(3) Test (Test)
The test Test setting places the monitor into a special diagnostic mode that shows the current input frequency

and the accumulated input counts

shows the layout for test mode values The diagnostic mode makes it

possible for the user to see precisely the frequency input the monitor is seeing and is very useful in troubleshooting

and electrical noise detection

If the current setting requires a change, press the

► arrow button to advance to an alternate choice Once the correct choice

is displayed, press the MENU button once to save the new selection and advance to the next parameter

Select Display's K factor Unit (KFacUnt)

Basic Function

At the K factor unit KFacUnt prompt, press the ENTER button once The display now shows the current K factor unit If the

current selection is correct, press the ENTER button to advance to the next parameter For meters calibrated in gallons, use

Pul/Gal; for meters calibrated in cubic meters, use Pul/m3 Other K factor units are selected in a similar way

Enter Flow Sensor's K factor (KFactor)

Basic Function

NOTE:

The K factor supplied with your meter or calculated from calibration data is needed to complete this step

At the K factor KFactor prompt, press the ENTER button once The most significant digit in the K factor value begins to flash

Using the

▲ arrow button, increment the display digit until it matches the meter’s K factor digit If the current selection is

correct, press the

► arrow button to advance to the next digit Repeat this process until all K factor digits have been entered

Press the ENTER button once to save the K factor

NOTE:

The number of digits entered before and after the decimal point is determined by the size of the flow sensor used

The largest K factors are associated with the smallest bore size sensors The maximum allowable K factor is 99999 9

The minimum must be at least 1 000 If an out of range number is entered the display flashes Limit and refuses to

allow the entry

Select Rate Unit Setup (Rate SU)

Extended Function (Standard Version Only)

The rate unit setup Rate SU is only available on the standard model monitor For the most basic unit setup choices the

ER-500 monitor has a Simple setup option accessed through the rate unit setup parameter If simple is selected the

rate and total choices are reduced to the five most common combinations avoiding the need to make unit and interval

choices When Advance is selected the monitor allows access to all rate, total, and interval parameters
