OPERATING THE MONITOR
Run Mode
The monitor has four modes of operation referred to as run, program, extended programming and test modes Figure 7 shows
the run mode LCD layout and where each piece of information about the process is found During normal operation the
monitor is in run mode
2 1
Battery
Indicator
Alarm
Activation
Rate
Units
Totalizer
Units
Totalizer
Multiplier
Total
Rate
Communications
Indicator

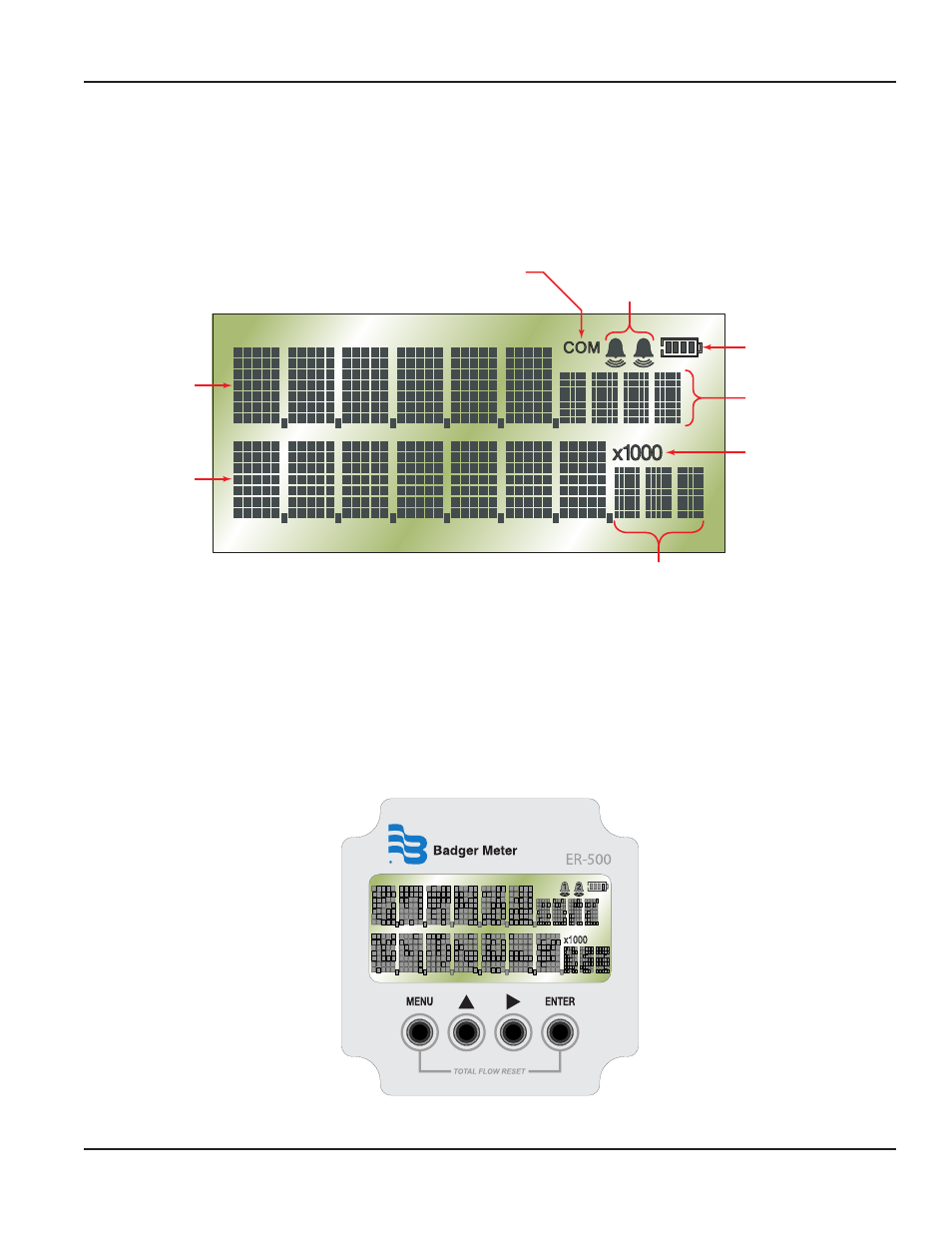

Figure 7: Run mode display annunciators
Program and Extended Programming Modes
Programming is accomplished in either the program mode or the extended programming mode To access the program
mode, momentarily press and then release the MENU button (See Figure 8 ) The first programming screen is displayed The
extended programming mode is accessed by pressing and holding the MENU button until the first extended programming
option appears After programming the display with the necessary information, a lock out feature can be turned on to prevent
unauthorized access or changing of the meter’s setup parameters
COM 1 2
Figure 8: Keypad detail
