PROGRAMMING
Conventions
The individual programming parameters are arranged as follows
Top Line - Indicates what the parameter is and if it is a selection or an entry
Bottom Line - Indicates what menu level the parameter resides in
Parameters
Select Display Function (Display)
Extended Function
The ER-500 monitor has three display selections
(1) Flow (Flow)
The flow Flow setting is used for normal operation of the monitor In this mode the display shows both the

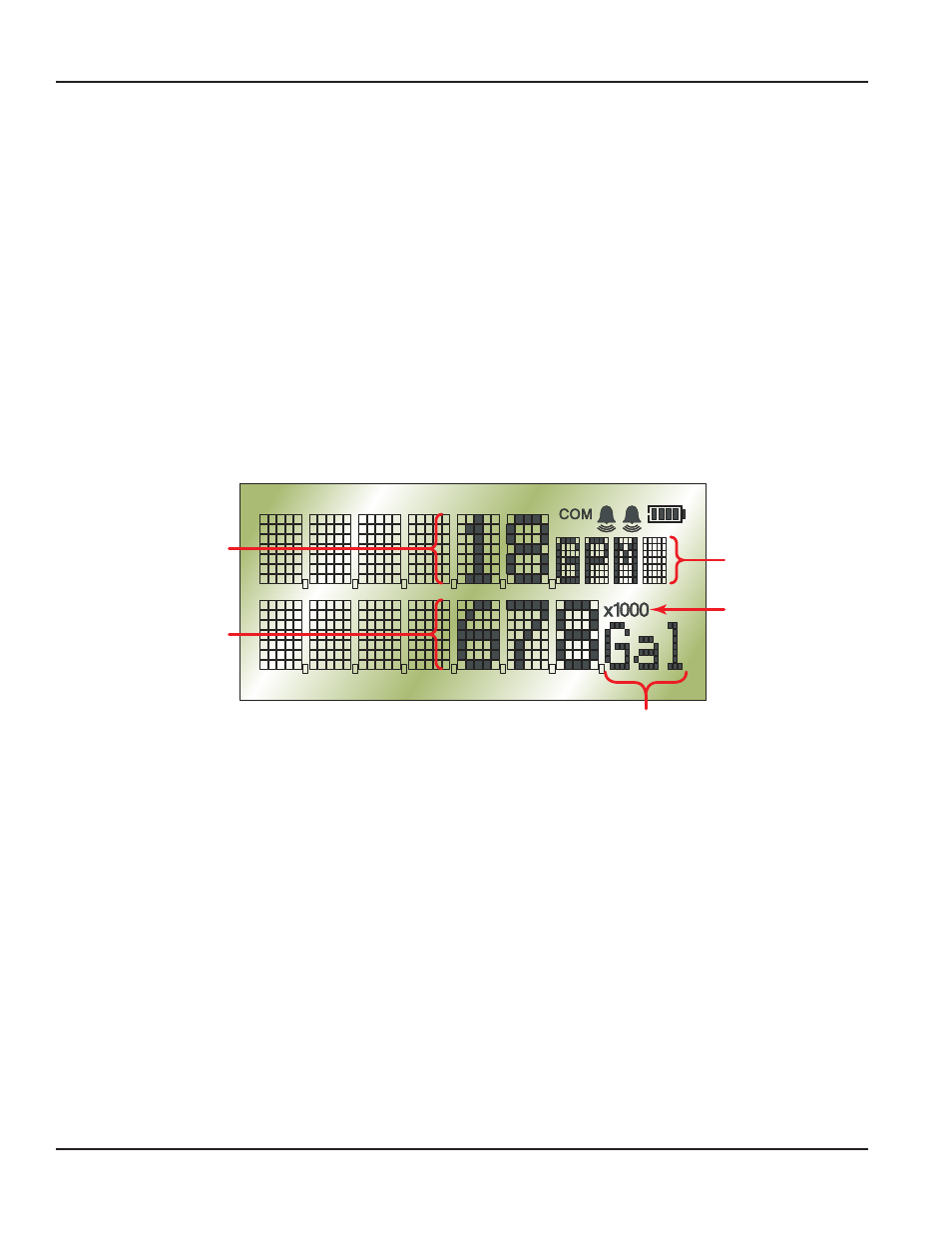

instantaneous flow rate and current total simultaneously (See Figure 11 )
2 1
Current Total Units
Flow Rate
Units
Totalizer
Multiplier Current
Total
Instantaneous
Flow Rate
Figure 11: Instantaneous flow rate and current total
(2) Flow Grand Total (Flow GT)
The flow grand total Flow GT choice causes the meter to alternate between the instantaneous flow and the grand
total with roll-over counts (See Figure 12 )
The grand total is the accumulation of all the fluid that has gone through the meter sense the last time the grand
total was cleared This totalizer is in addition to the current total totalizer on the display and is always enabled
In addition the grand total screen also displays the number of times the grand total has reached its maximum count
(9,999,999) and rolled over to zero
