Result: Two status messages display: "Waiting for Mobile Configuration" and then "Reading Data." A bar displays to show
progress. Profile data for the endpoint is extracted and the screen fills as shown below to confirm that the data has
been retrieved.

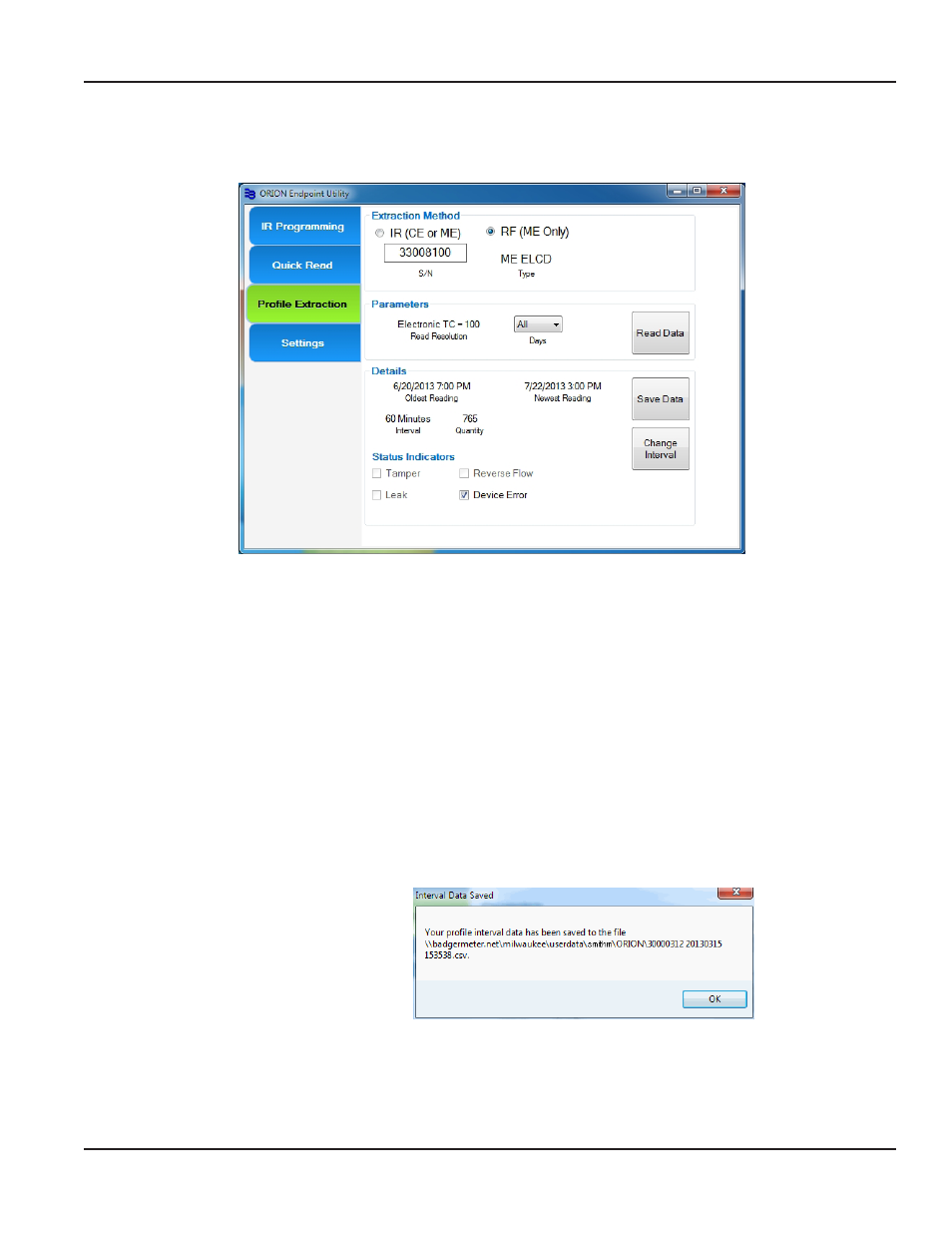

Figure 56: RF profile extraction complete
RF Profile Extraction Details
Field Label
Description
Oldest Reading
The date and time of the oldest reading in the data extracted
Newest Reading
The date and time of the newest reading in the data extracted
Interval
The reading interval at which the endpoint is set: 60 Minutes or 15 Minutes
Quantity
Displays the number of interval reads retrieved
Status Indicators
Displays potential exception issues such as a tamper or no usage If no exceptions are noted,
none of the boxes are checked
5 Use the button to Save Data You can also select Change Interval to change the time between historical interval
meter readings
Save Data
Select to save the profile data A window displays with a message that confirms the save and
the location of the file Click OK to close the window
Figure 57: Save file confirmation
Change Interval Select to change the interval (60 minutes or 15 minutes) for meter readings Changing the
interval clears any stored interval data A window opens, asking you to confirm the change
6 The RF Profile Extraction is complete To read another endpoint, repeat steps 2…5
