5 Using the keyboard,
enter the new value
in the Current
Reading field
Result: The field
background is
highlighted to indicate
an unprogrammed
value has been entered.

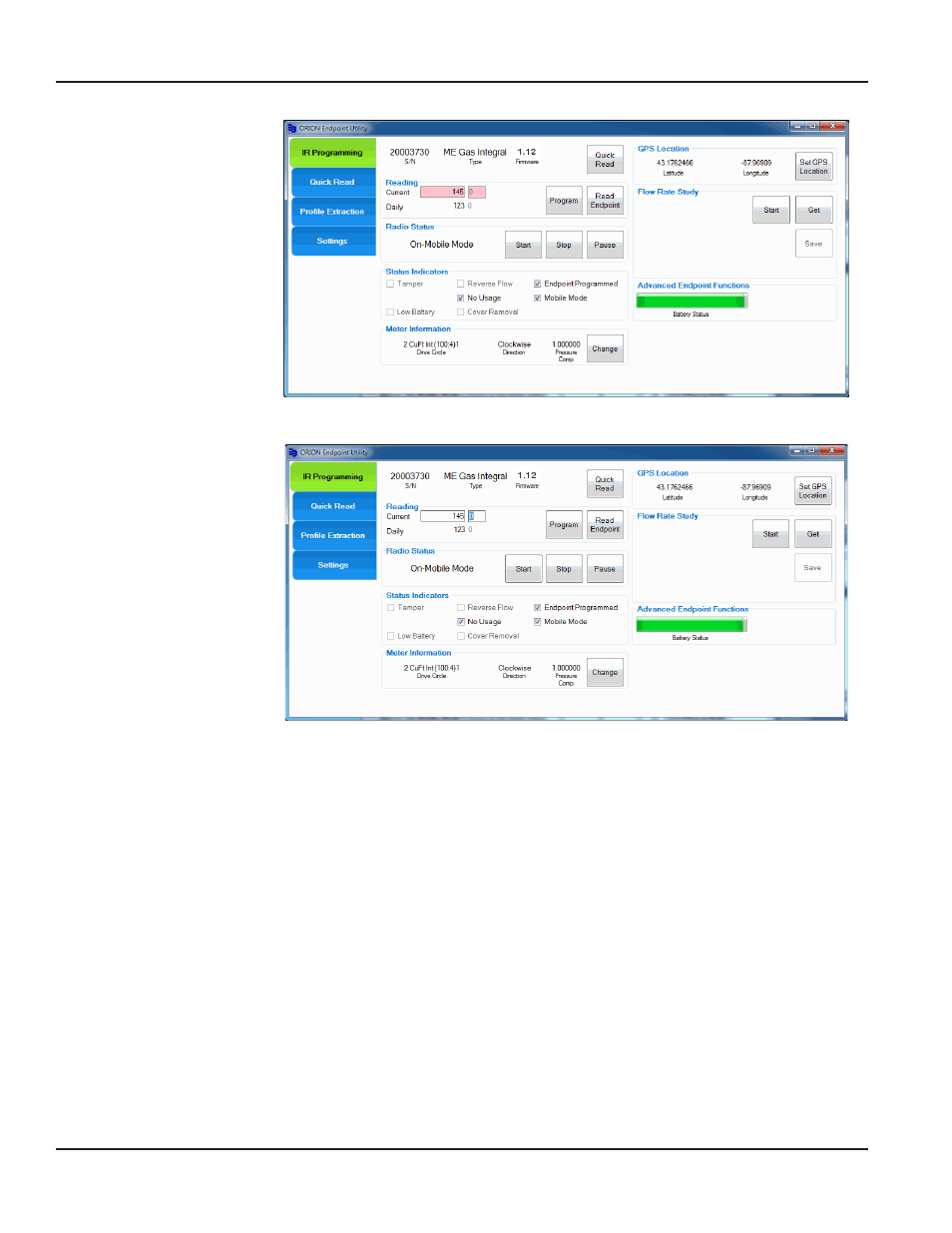

Figure 31: Current Reading field highlighted
6 Align the optical head
of the IR cable with
the endpoint IR LED
port and click the
Program button
Hold the optical head
of the IR cable steady
The endpoint read is
programmed when
the highlighted
background in the
Current Reading field
is cleared
Figure 32: Current Reading field clears when programmed
7. IMPORTANT: Visually verify the anticipated index reading is reflected in the Current Reading field If it is not, repeat
steps 4…6
