Force Read (Encoder Output)
When an ORION endpoint is connected to a device with encoder output (high resolution or ADE), the Force Read button
displays instead of the Program button
Force Read is used to view the real-time encoder odometer value and to verify a successful tamper repair
1 Align the optical head of the
IR cable with the endpoint
IR LED port
2 Click Force Read on the IR
Programming screen
Result: The reading value
updates to reflect the current
encoder odometer value.
If the tamper condition is
successfully repaired and the
tamper condition no longer
exists, the Tamper Status
Indicator clears.

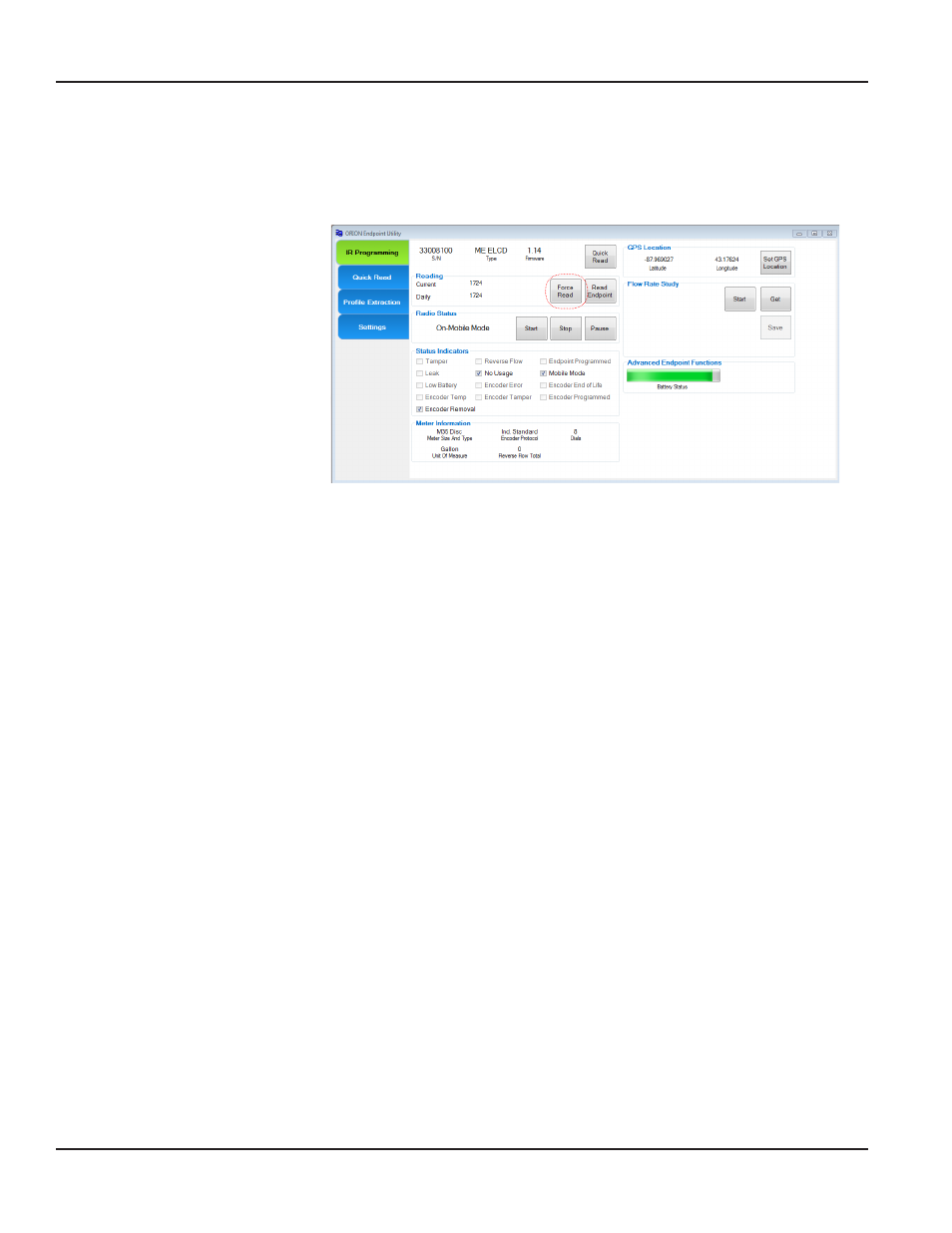

Figure 28: Force Read
IR PROGRAMMING
