COM PORTS
Before using the software application, make sure the correct COM (communication) ports are set for any equipment
connected to the computer to establish communication with the software
Check the COM Port(s)
Windows 7: Click Windows Start to open the menu Right-click Computer and select Properties> Device Manager
Windows XP: Click Windows Start to open the menu Right-click Computer and select Properties> Hardware tab>
Device Manager
A window similar to the one below opens
Click the small arrow next to Ports (COM & LPT) to expand the list In the example, the ORION mobile transceiver ("Orion SE
Mobile COM") is using COM 5 and the IR cable ("Prolific USB-to-Serial Comm Port") is using COM 7

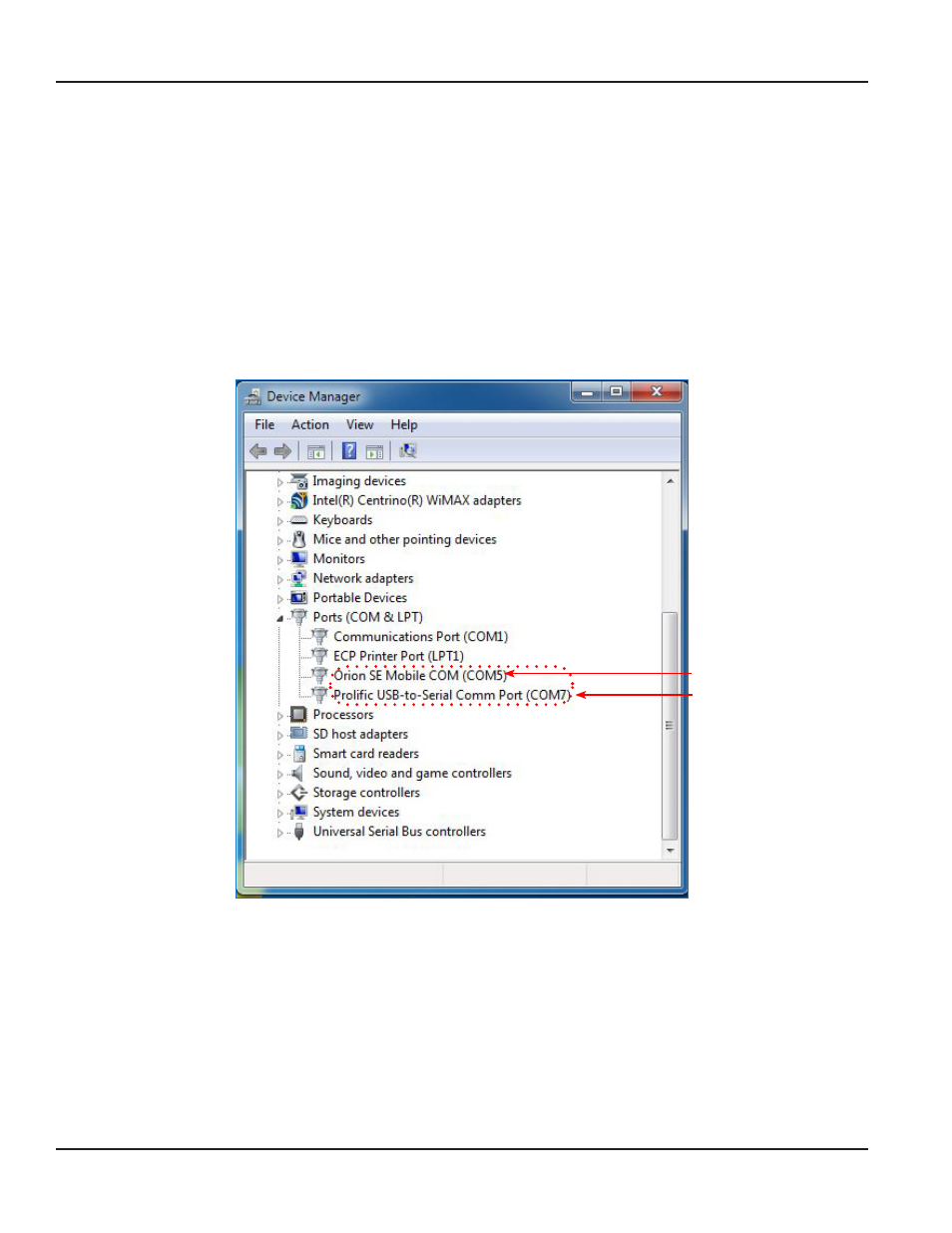

Figure 5: Device Manager screen showing COM ports
MPORTANT
I
Make a note of the COM ports. They will be needed to configure the settings for the software. See
.
IR programming cable
with a serial USB
adapter
ORION mobile transceiver
