QUICK READ
The Quick Read screen displays readings for all ORION Migratable and ORION Classic endpoints in range One endpoint may
display several readings during an RF (radio frequency) Quick Read

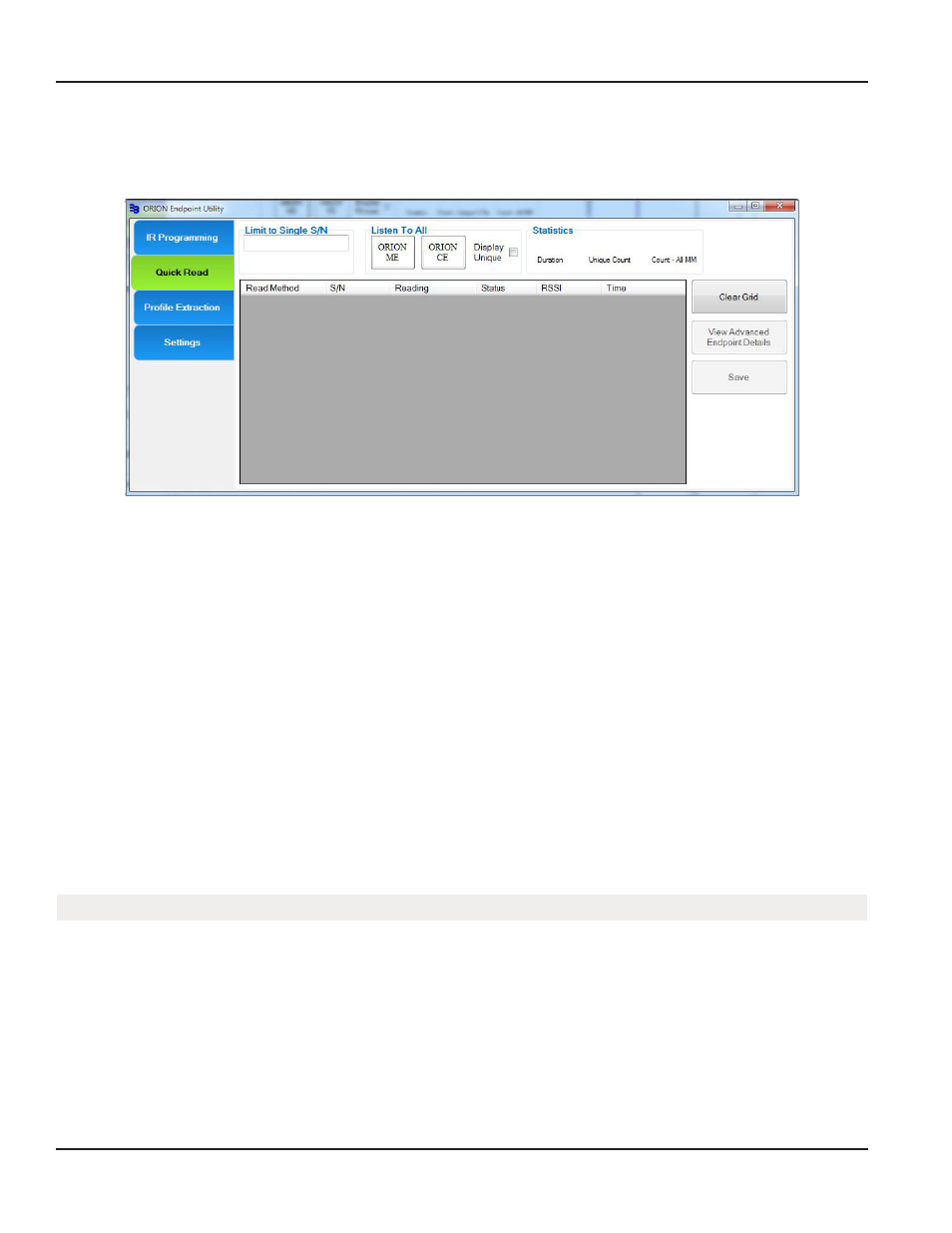

Figure 41: Quick Read screen
RF Quick Read Fields
Field Label Description
Limit to Single S/N When an endpoint serial number is entered, performs a Quick Read on the endpoint entered via RF
Click in the field and type the serial number for the endpoint you want to read
Display Unique Check the box to display each unique endpoint serial number once only
Read Method Displays endpoint and encoder type ”Gas“ is displayed for gas meters
S/N The endpoint serial number
Reading Current reading for the corresponding endpoint serial number The reading is the raw value without
reading resolution applied
Status Displays potential exception issues such as a tamper or no usage If no exceptions are noted, the Status
field is blank
RSSI Bar showing the relative signal strength of the endpoint to mobile transceiver or receiver
communication
Time The date and time of the Quick Read
Statistics
Field Label
Description
Duration The elapsed time in seconds since the Quick Read started This field continues to update during the
Quick Read
Unique Count The number of unique endpoint serial numbers heard This field continues to update during the
Quick Read
Count - All MM The number of endpoint messages heard by the mobile transceiver or receiver This field continues to
update during the Quick Read
QUICK READ
