RF Quick Read - All Endpoints
The example below is for ORION Migratable or Fixed Network (in mobile mode) endpoints If you are reading ORION Classic
endpoints, perform the same steps using the ORION CE button
OTEE: N To read both ORION Migratable and ORION Classic endpoints simultaneously, see "Changing Quick Read Technology"
on page 35
1 Click Quick Read on the main menu
2 Click the ORION ME button to start
Result: The ORION ME button becomes green to indicate communication with the endpoints.
The fields on the screen begin to fill with readings and the Statistics section changes to reflect the elapsed time and number
of readings.

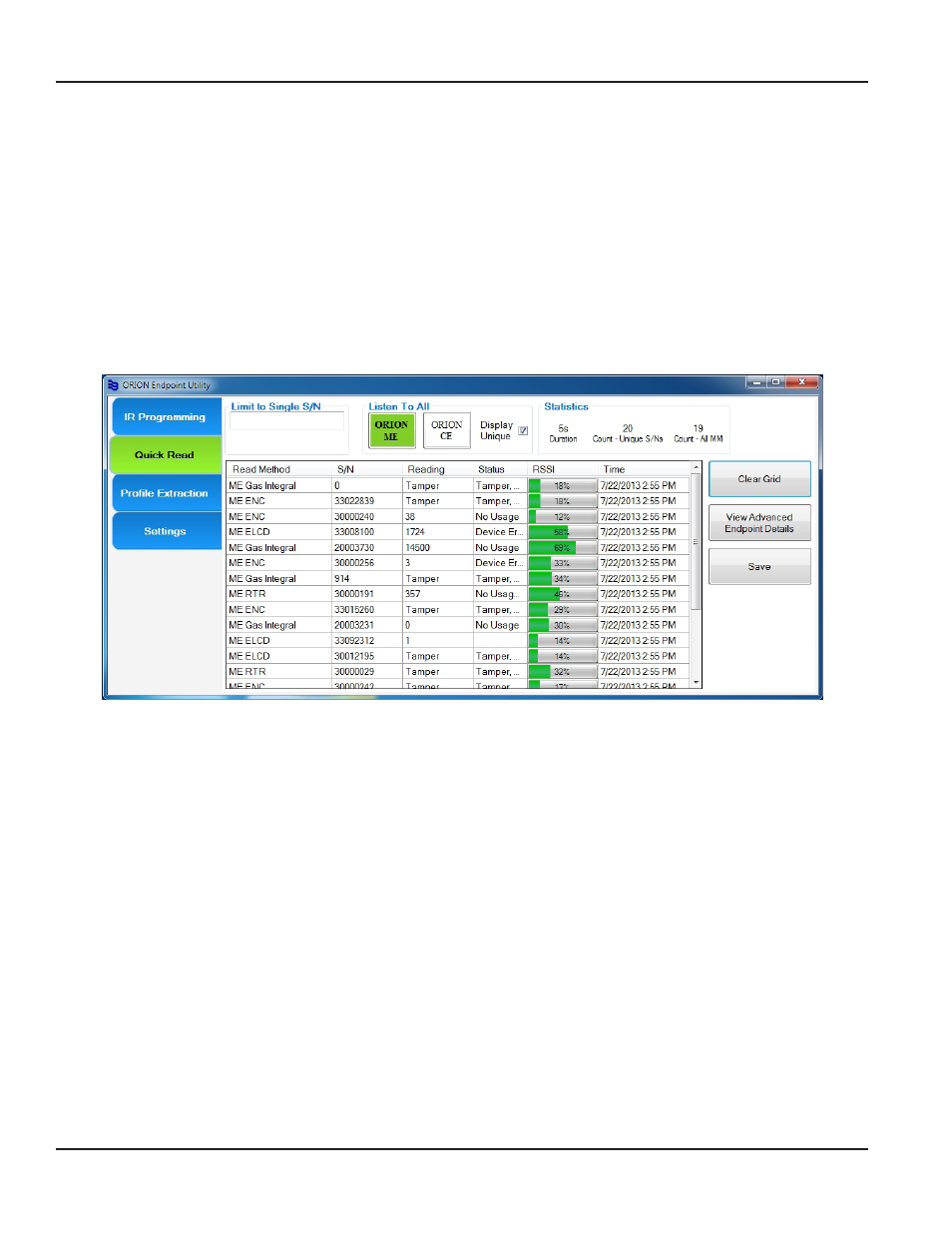

Figure 42: ORION ME Quick Read
3 Click the ORION ME button again to pause or stop the Quick Read
Result: The button becomes clear and the readings stop.
For a single endpoint read:
4 To view readings for a single endpoint serial number, click the row of the endpoint you want to read
Result: The endpoint serial number fills in the Limit to Single S/N field.
5 Click the ORION ME button again
Result: The button becomes green and the readings that are displayed are for the single endpoint serial number
you selected.
6 Click the ORION ME button again to stop the Quick Read
QUICK READ
Page 34 April 2014 ORION® Endpoint Utility
