RF Profile Extraction (ORION ME only)
To access profile data for an ORION Migratable endpoint using RF, follow these steps
1 Click to select the RF (ME only) radio button
2 Click in the S/N field and use the keyboard to enter the serial number of the ORION Migratable endpoint
Result: As the radio connection is made, you will see two status messages: "Waiting For Mobile Message" and then
"Waiting for Extended Status."

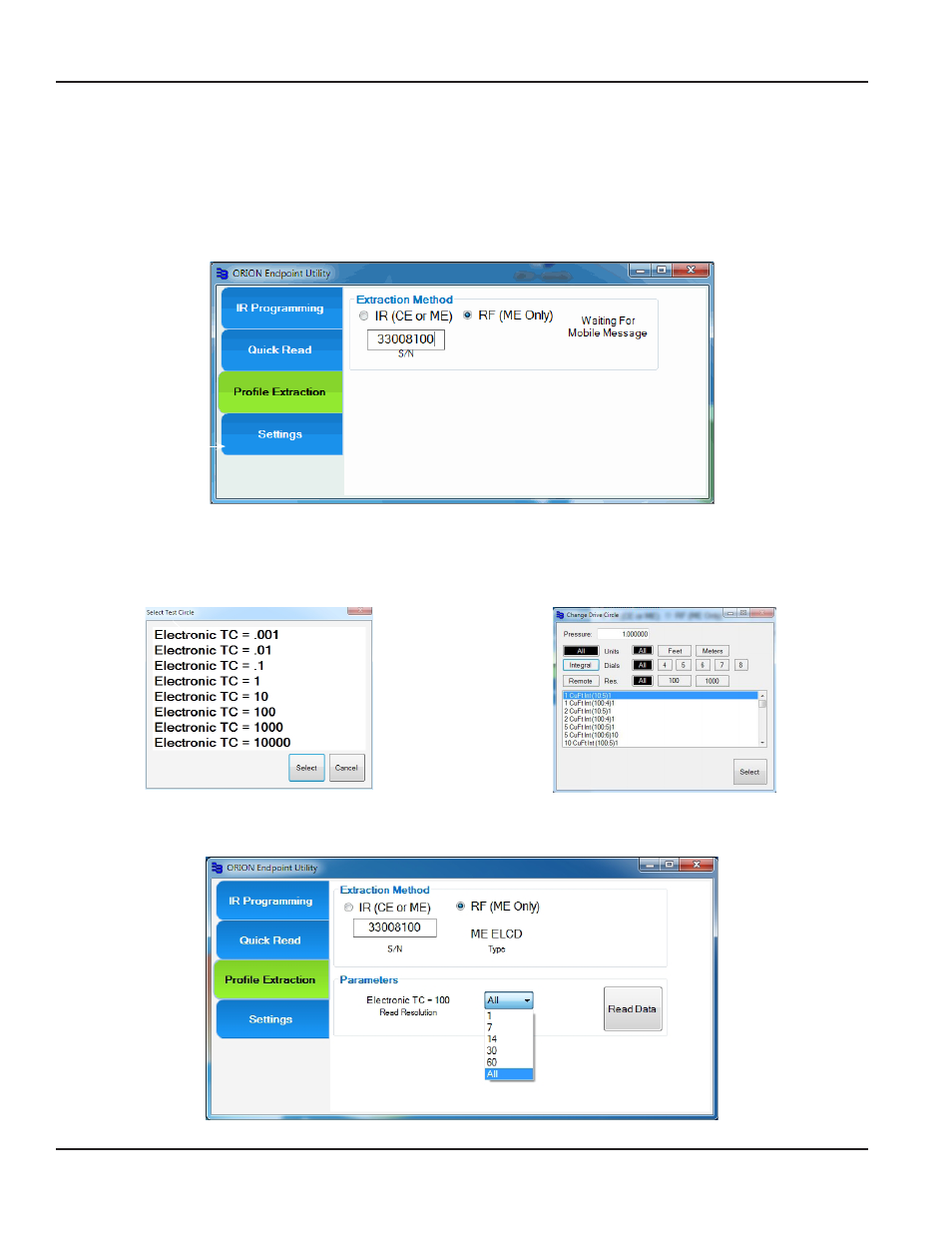

Figure 52: RF profile extraction
3 On the window that displays, select the appropriate meter size and unit of measure For water endpoints, the Test
Circle window will display For gas endpoints, the Drive Circle selection window will display An example of both
windows is shown (Figure 53, Figure 54)
Figure 53: Water - Test Circle selection Figure 54: Gas - Drive Circle selection
4 Choose the number of days of historical interval data to extract using the drop-down menu Then click Read Data
Figure 55: Choose number of days for profile extraction
PROFILE EXTRACTION
