4
- NG - OK OK +OK +NG
ENT
RST
PROG
SET MAS
SET MAS
◯ 3

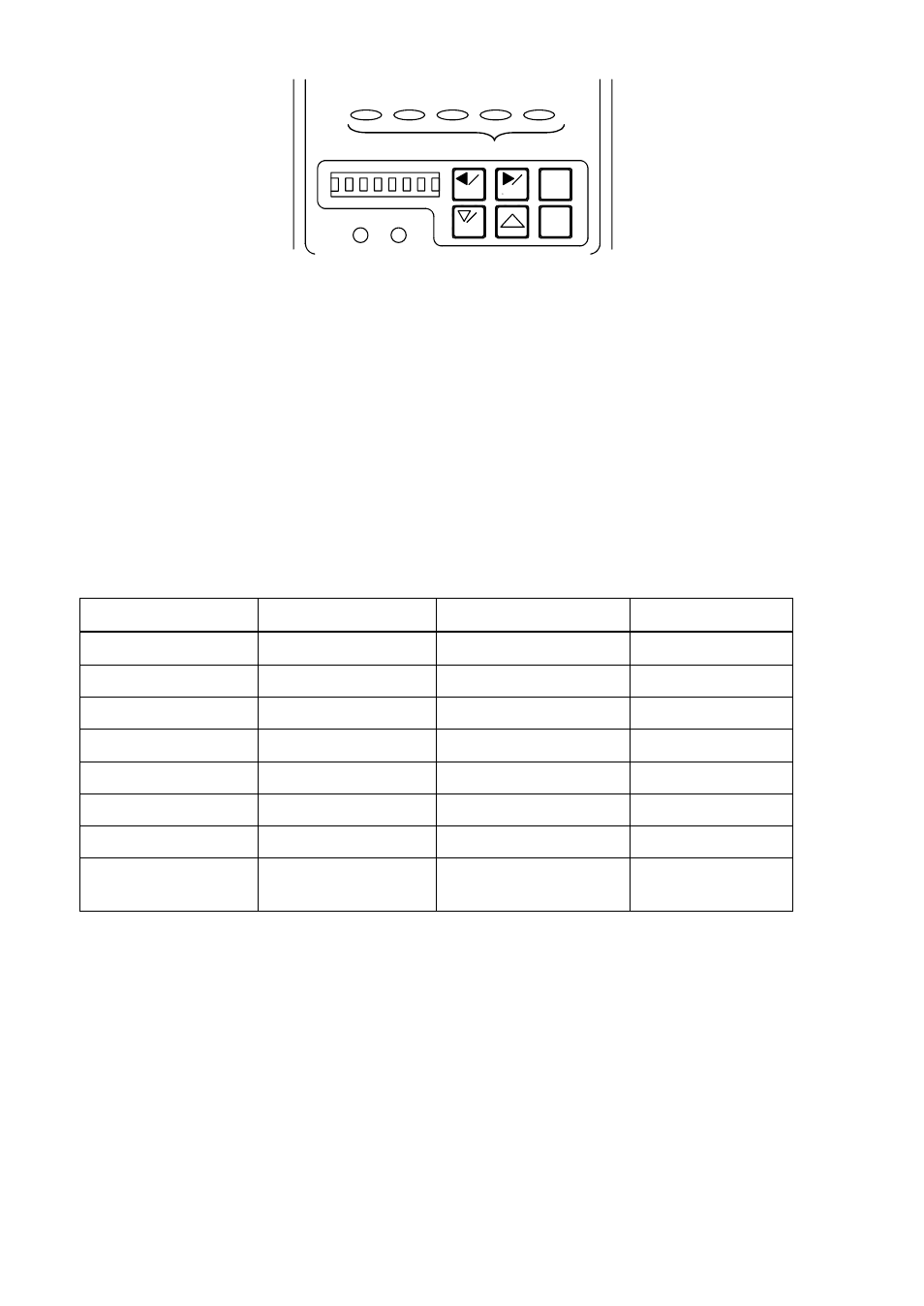

Display item judgment LEDs
Judge the data shown on the main display. OK is indicated by green, ±OK by orange,
and ±NG by red. ±OK is used only when the number of ranks is three.
◯ 4
Alphanumeric display
The measured value, set value, set description, and other data are indicated by 8-digit 7
× 5 dot characters.
◯ 5
Mode LEDs
Indicate the condition of the current mode and the mastering result. The LED lighting
colors, modes, and mastering results are as shown in Table 3.
Table 3. LED colors and conditions indicated.
SET mode LED MAS mode LED Mode Mastering result
Orange Off Set OK
Orange Red flashing Set NG
Green Off Change program OK
Green Red flashing Change program NG
Off Orange Master OK
Off Orange and red Master NG
Off Red flashing Measure NG
Off Off Measure,
Hold measured value OK
➂ ➃
➄
