22
7.3.4 Measuring procedure
(1) Description
In the measure mode, the instrument continues to produce the judgment result output.
In the case of static measurement, it holds the measured value display and judgment
result output when the measure command changes from off to on.
(2) Static measurement
➀ Check that “READY” is displayed.
➁ Check that “MAS OK” is displayed.
➂ Set the work in the measuring head.
➃ After about 2 sec of stabilization time, turn on the measure command. (The
measured value display and judgment result output are held, and “All OK/NG” is
output.)
➄ Read the data.
➅ Input the RESET signal. (The measured value display and judgment result output
hold is cleared.)
(3) Dynamic measurement
When “+PEAK”, “–PEAK”, “TIR”, or “TIR/2” is selected at [FUNCTION], the instrument
makes dynamic measurement. When any other item is selected, the instrument makes
static measurement.
The dynamic measurement differs from the static measurement in that the instrument
starts the measurement at the first measure command and holds the measured value at
the second measure command. When making a measurement at an external input
signal, usually set WaitTime and MeasTime both at 0 sec. Before the start of the
measurement, input the RESET signal to clear the peak value accumulation.

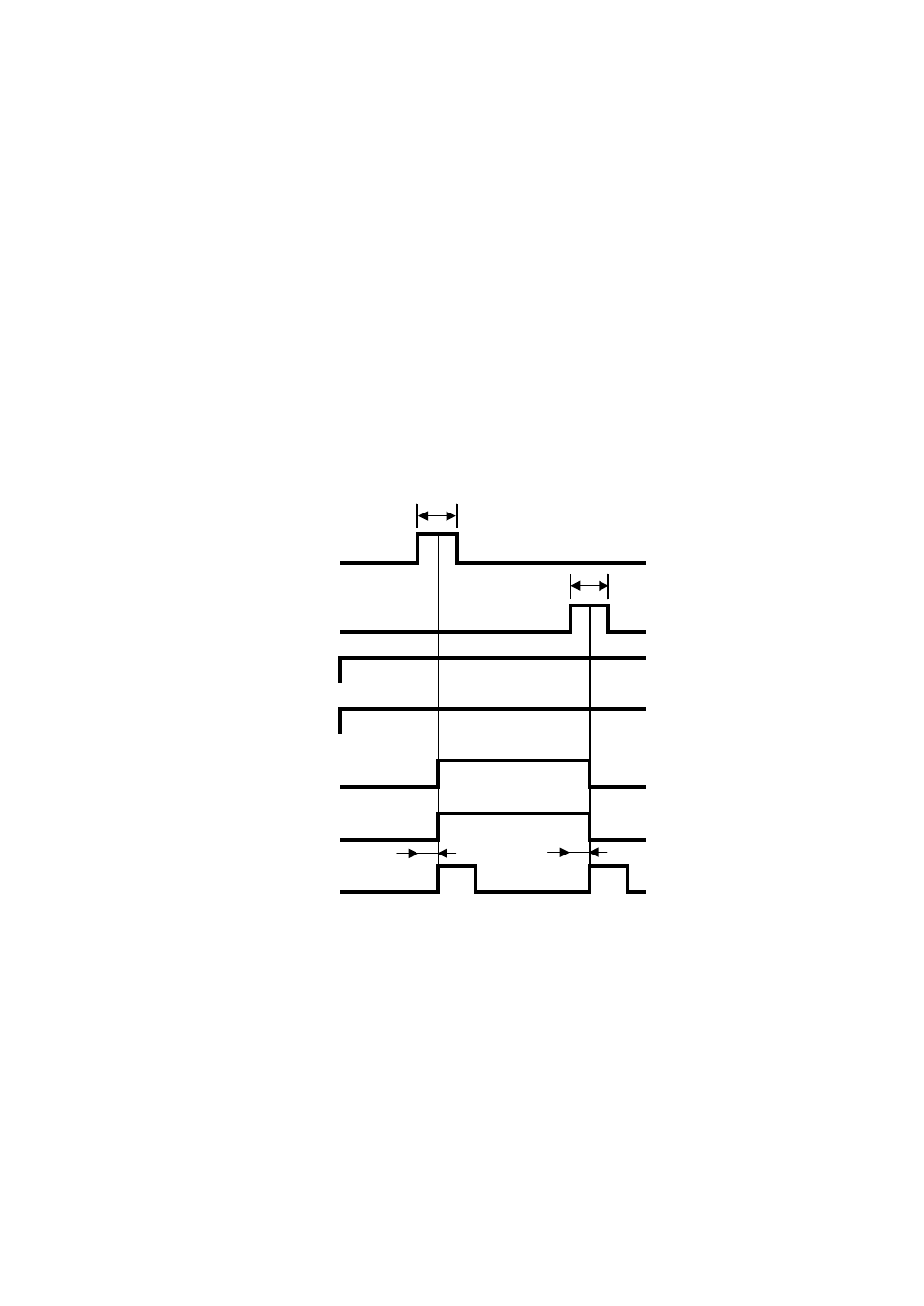

I: Measure command
I: RESET
O: READY
O: Master OK
O: All OK/NG
O: Hold measured value
O: Check input signal
0.1 sec or more
0.1 sec or more
0.05 sec or less 0.05 sec or less
