2

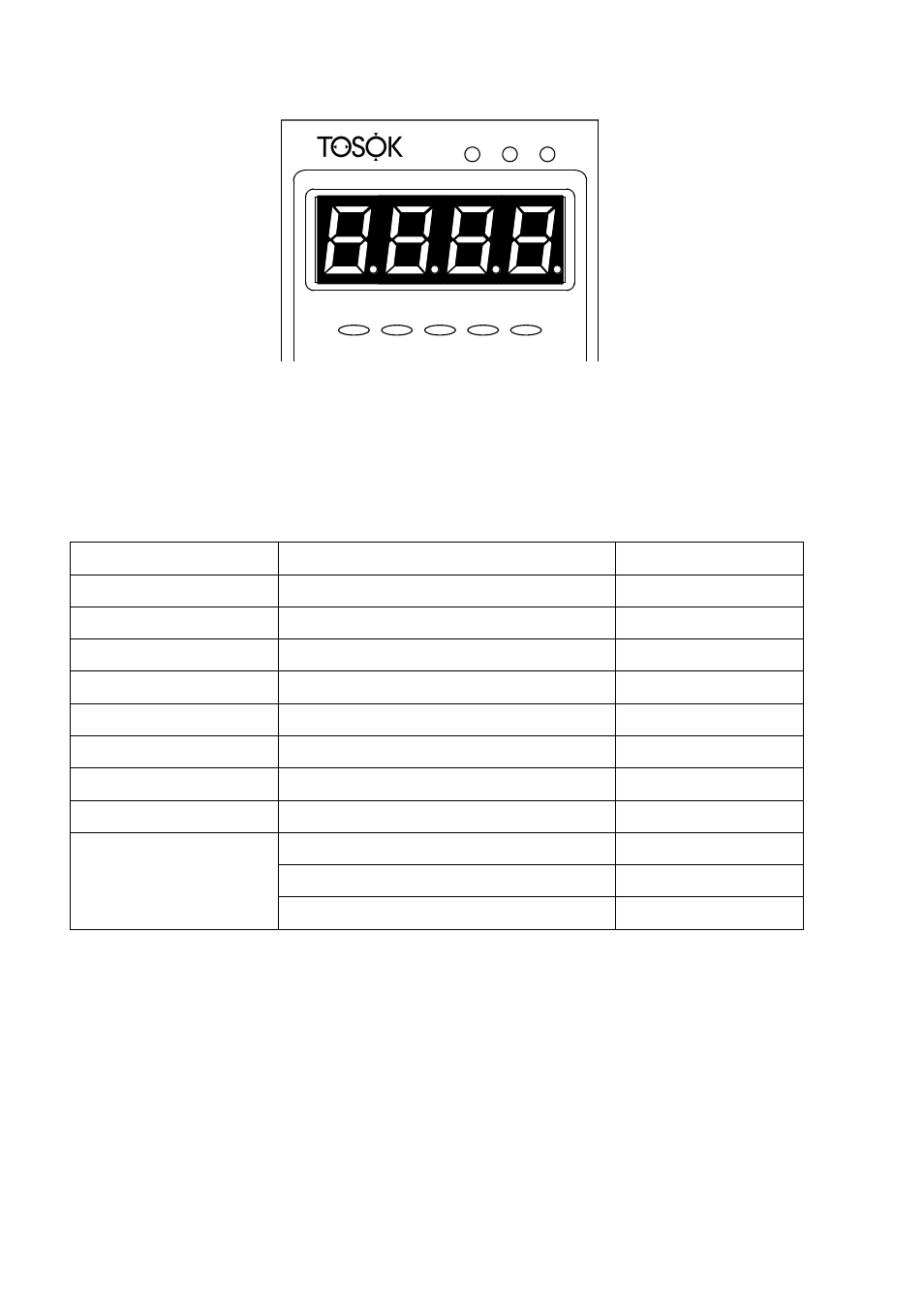

4. Names and Functions of Controls and Parts
- NG - OK OK +OK +NG
1 2 3
◯ 1
Item and judgment LEDs
Indicate the judgment result and measurement under way (as shown on the main
display), among other things. The conditions of Items 1 to 3 are indicated by LEDs 1 to
3, respectively. The lighting colors of the LEDs and the conditions indicated by them are
shown in Table 1.
Table 1. LED colors and conditions indicated.
Color Condition Mode
Green (light and dark) Judgment result OK; Main display item Measure
Green (light) Judgment result OK; Other item Measure
Green (dark) and blank Judgment result OK; Main display item Hold measured value
Green (dark) Judgment result OK; Other item Hold measured value
Red (light and dark) Judgment result NG; Main display item Measure
Red (light) Judgment result NG; Other item Measure
Red (dark) and blank Judgment result NG; Main display item Hold measured value
Red (dark) Judgment result NG; Other item Hold measured value
Set value of item being entered Set
Instrument being calibrated with master Master
Orange (light)
Detector being adjusted Adjust detector
