16
7. I/O Description
7.1 Serial output
(1) Description
This instrument can output the measured values to a printer and communicate with a
personal computer (PC) through RS232C.
Data to be transmitted from instrument to PC
Measurement item: Items 1 to 3
Measured value: Data displayed on instrument, NO USE
Judgment result: R 1 to R99, NJG (stabilizing timer in operation), or NDT (only
when NO USE is displayed)
(2) Preparation
The RS232C connector at the rear of the instrument is provided for the PC or printer.
Connect the D-sub 9-pin (male) plug of the optional communication cable to the RS232C
connector.

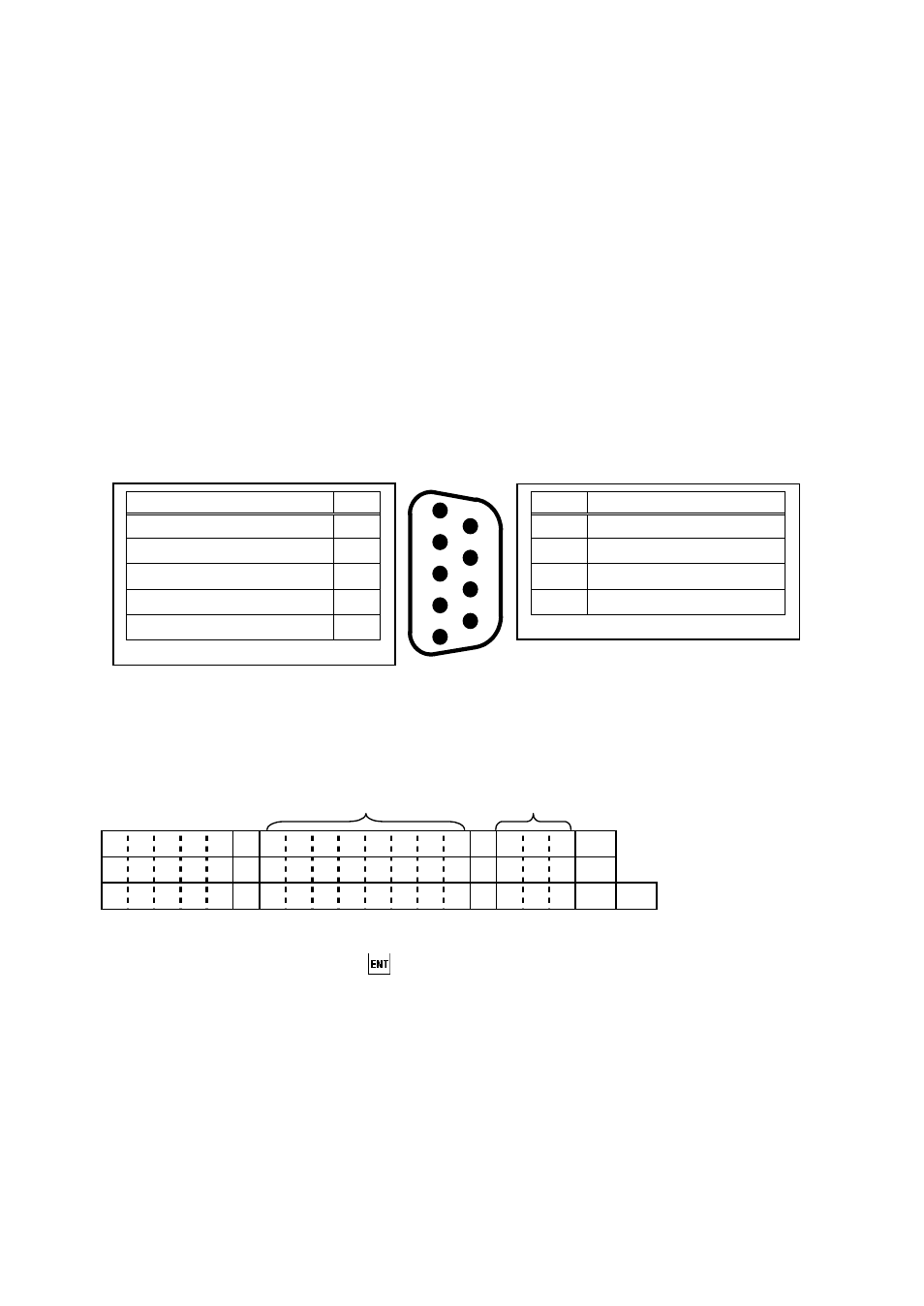

(3) Connector pin arrangement
(4) Serial port settings
Baud rate: 9600
Bits/character: 8
Stop bit: 1
Start bit: 1
Parity bit: None
(5) Transmission data composition
Item 1 (5 characters), space (1 character), measured value (8 characters), space (1
character), rank (3 characters), space (1 character);
Item 2 (5 characters), space (1 character), measured value (8 characters), space (1
character), rank (3 characters), space (1 character);
Item 3 (5 characters), space (1 character), measured value (8 characters), space (1
character), rank (3 characters), CR, LF
I T E M 1
I T E M 2
I T E M 3
CR LF
(6) Data transmission method to PC
In the measure mode, press the key. The instrument falls in the hold measured
value condition and transmits the measured value to the personal computer. The data
transmission is disabled when the mastering result is NG.
Description No.
1
R × D 2
T × D 3
4
GND 5
No. Description
6
7
RTS
8 CTS
9
Measured value Judgment result
