̶ 24 ̶

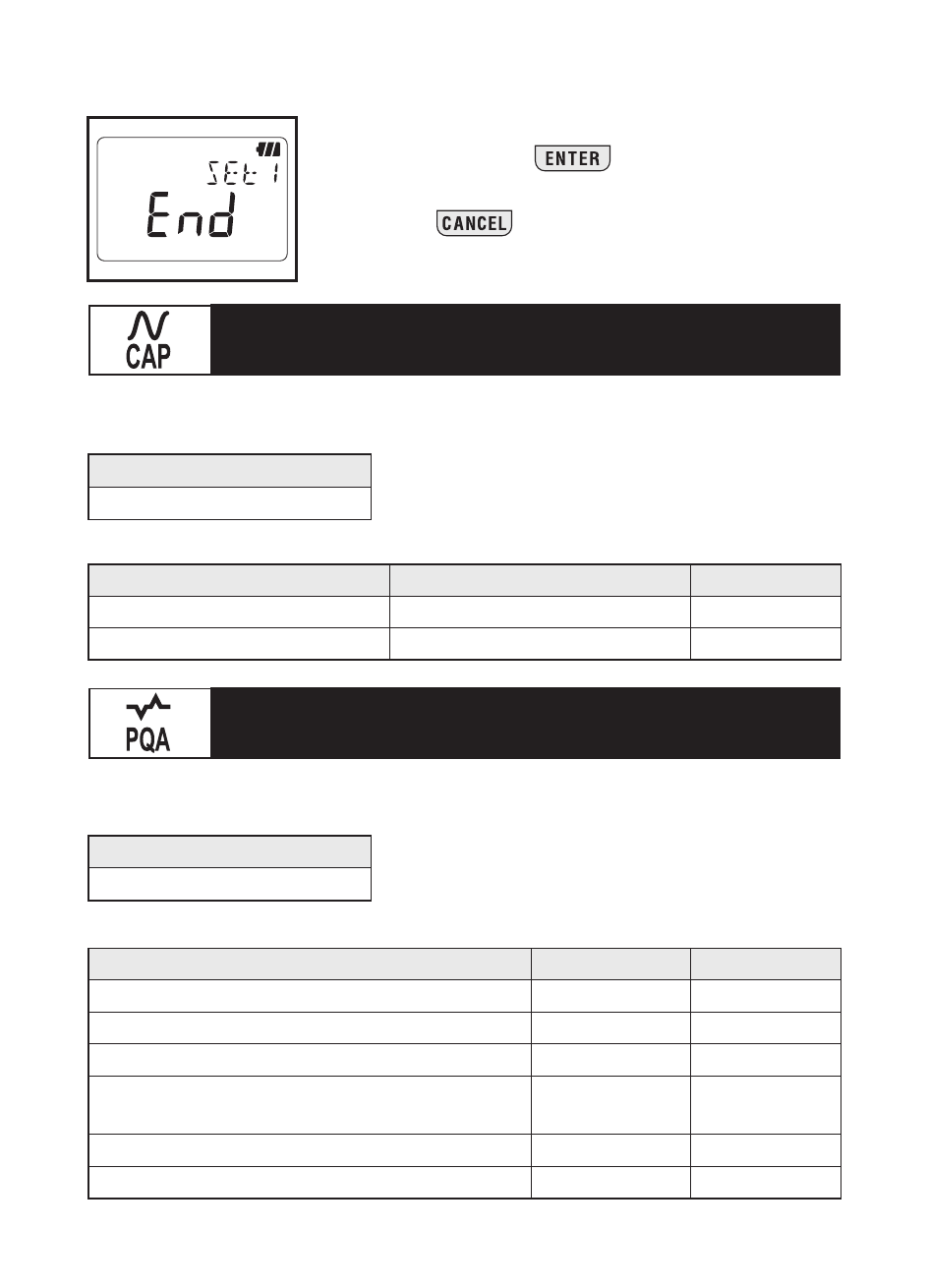

8. Now Setting 1 is completed; "End" is displayed on
the LCD. Press the button to return to the
screen on which "SEt.1" is displayed.
9. Press the button to get the instrument ready
for a measurement.
Max number of recorded data
* Setting is available only on PC.
Using only 1 channel
345 data
Setting item
Max number of recorded data
* Setting is available only on PC.
Using only 1 channel
4000 data
Setting item
Capture recording mode: （Setting on PC）
Power Quality Analysis [only 5020] （Setting on PC）
Item Range for Setting Default
CH1 Detection Level 0 ~ 1000 15
One-time/ Endless One-time/ Endless Endless
Item Range for Setting Default
Reference Voltage (System Supply Voltage) 100V ∼500V 100V
Swell Detection (Ratio against Reference Voltage) 100% ∼200% 110% (110V)
Dip Detection (Ratio against Reference Voltage)
0% ∼100% 90% (90V)
Short Interruption Detection
(Ratio against Reference Voltage)
0% ∼100% 10% (10V)
Hysteresis (Ratio against Reference Voltage) 0% ∼10% 1% (1V)
One-time/ Endless One-time/ Endless Endless
