̶ 22 ̶
Max. number of recorded data
Setting items
Setting procedure
Using all 3 channels Using 2 channels Using only 1 channel
1,600 data 2,400 data 4,800 data
Item Range for Setting Default
CH1 Detection Level 0 ~ 1000 (Unit depends on Sensor) 15
CH2 Detection Level 0 ~ 1000 (Unit depends on Sensor) 15
CH3 Detection Level 0 ~ 1000 (Unit depends on Sensor) 15
One-time/ Endless One-time/ Endless Endless
▼
▼

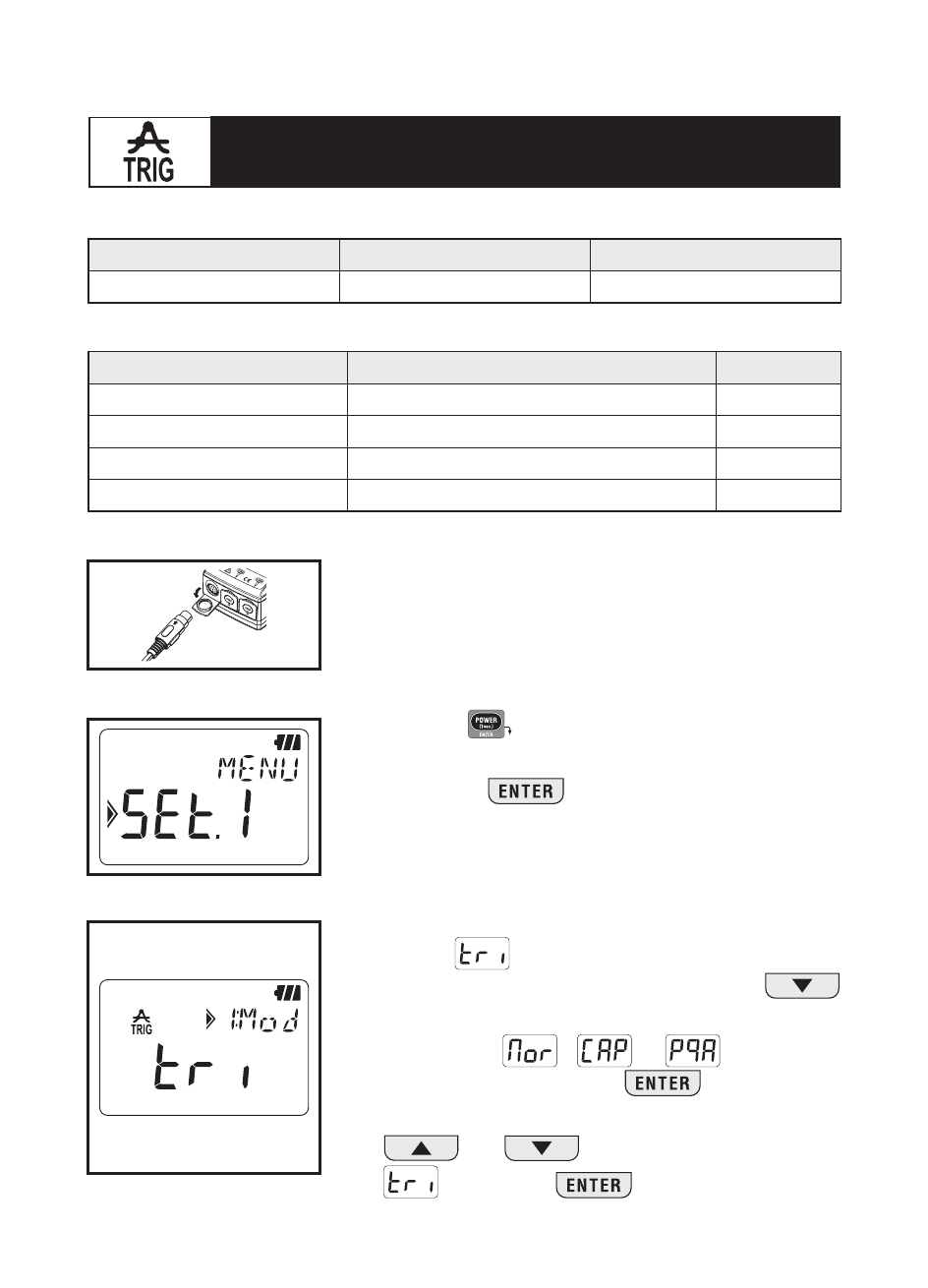

Trigger recording mode: Current set value of 15A
1. Connect a Sensor first prior to do setting.
When Sensor is not connected to the instrument
at setting, connect a Sensor, and then power
off once and on the instrument.
2. Press the button while instrument is on to
enter into Menu mode.
3. Press the button when "SEt.1" is
displayed on the LCD.
4. The selected recording mode is displayed.
◆
When (Trigger recording mode) is
displayed on the LCD, press the
button to proceed to the next setting.
◆ In case that , or is displayed
on the LCD, press the button. Then
the indication on the LCD flashes. Press the
or button to change it to
. Press the button.
▼
