Installation, 4 typical measuring point – KROHNE OPTISYS SLM 2100 EN User Manual
Page 18
3
INSTALLATION
18
OPTISYS SLM 2100
www.krohne.com
03/2014 - 4002737302 - MA OPTISYS SLM 2100 R02 en
Step 4: Adjusting
• Open the door of the meter for 45°.
• Adjust the meter horizontally using the last two screws that you screw in the lower part of the
frame.
• Turn the screws until the door does not move (open and close) any more from the 45° position.
3.4 Typical measuring point

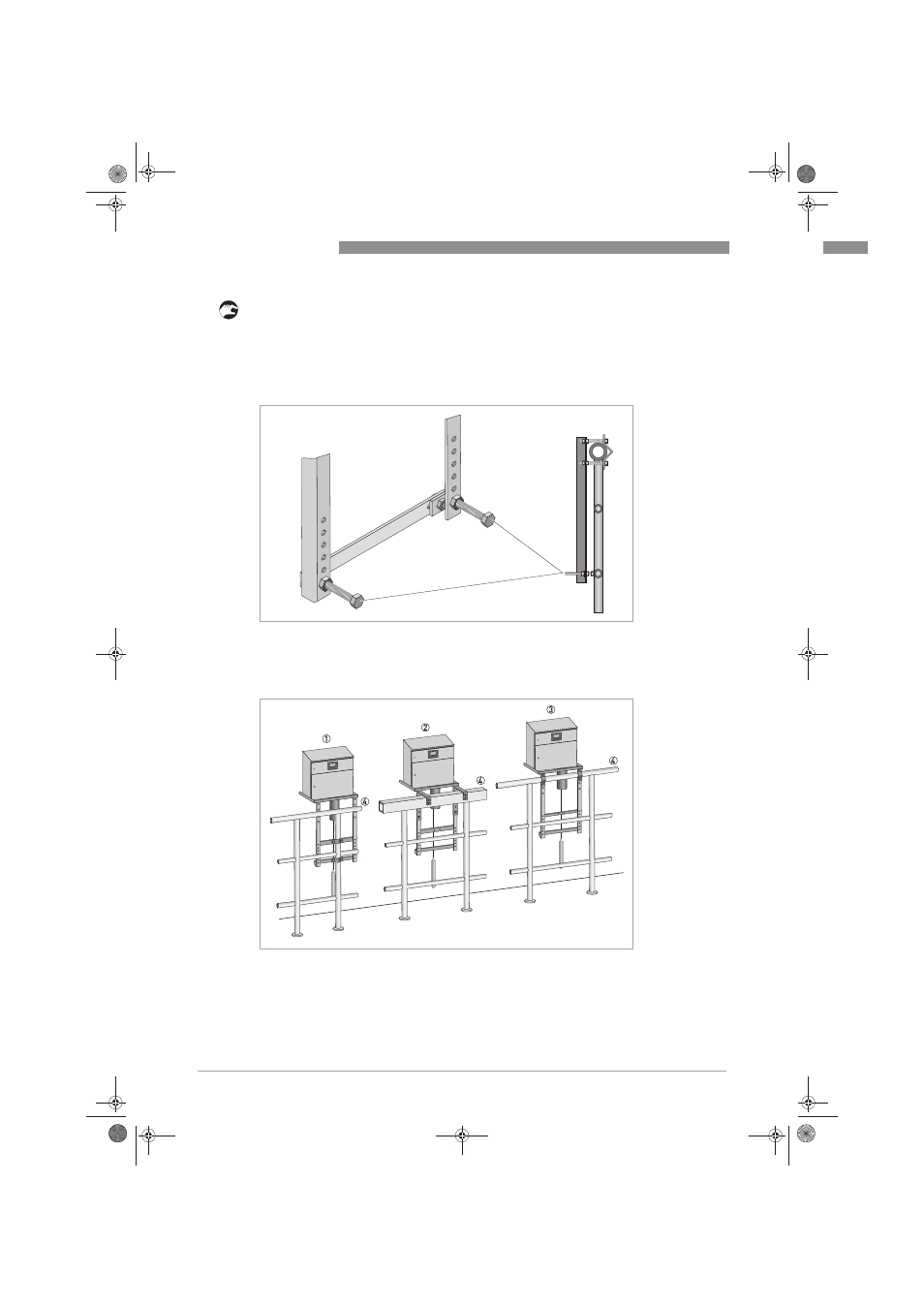

Figure 3-4: Adjusting frame
Figure 3-5: Typical measuring points
1 OPTISYS SLM 2100 with brackets for round handrail on vertical post
2 OPTISYS SLM 2100 with brackets for rectangular handrail
3 OPTISYS SLM 2100 with brackets for round handrail
4 Handrail
.book Page 18 Wednesday, April 30, 2014 1:39 PM
