2-4

SERIES EL 070312

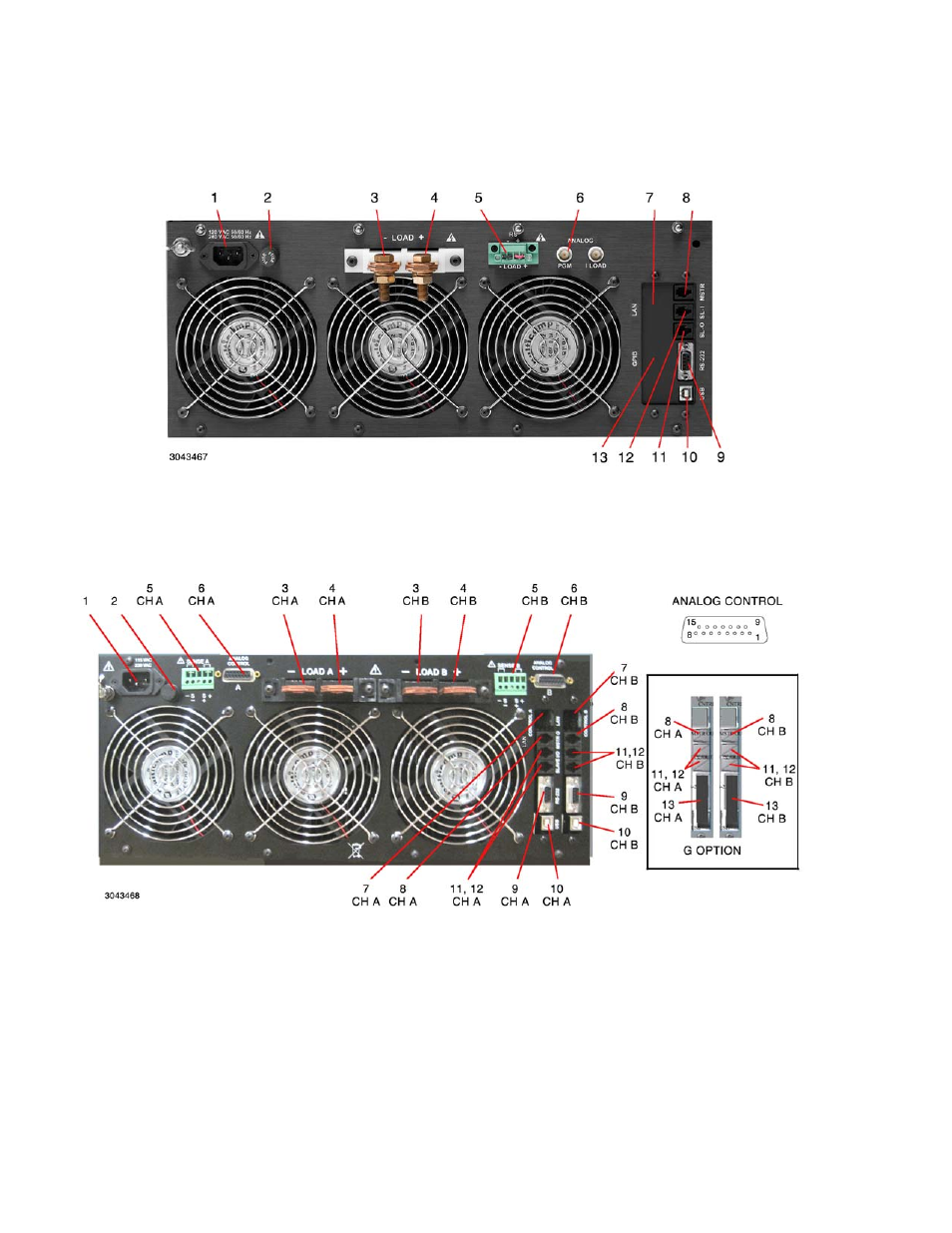

FIGURE 2-3. SERIES EL, REAR PANEL TERMINATIONS AND CONNECTORS

FIGURE 2-4. SERIES EL, DUAL MODELS, REAR PANEL TERMINATIONS AND CONNECTORS

NOTE: See Table 2-2 for callout descriptions.

NOTE: See Table 2-2 for callout descriptions.
