OPERATION

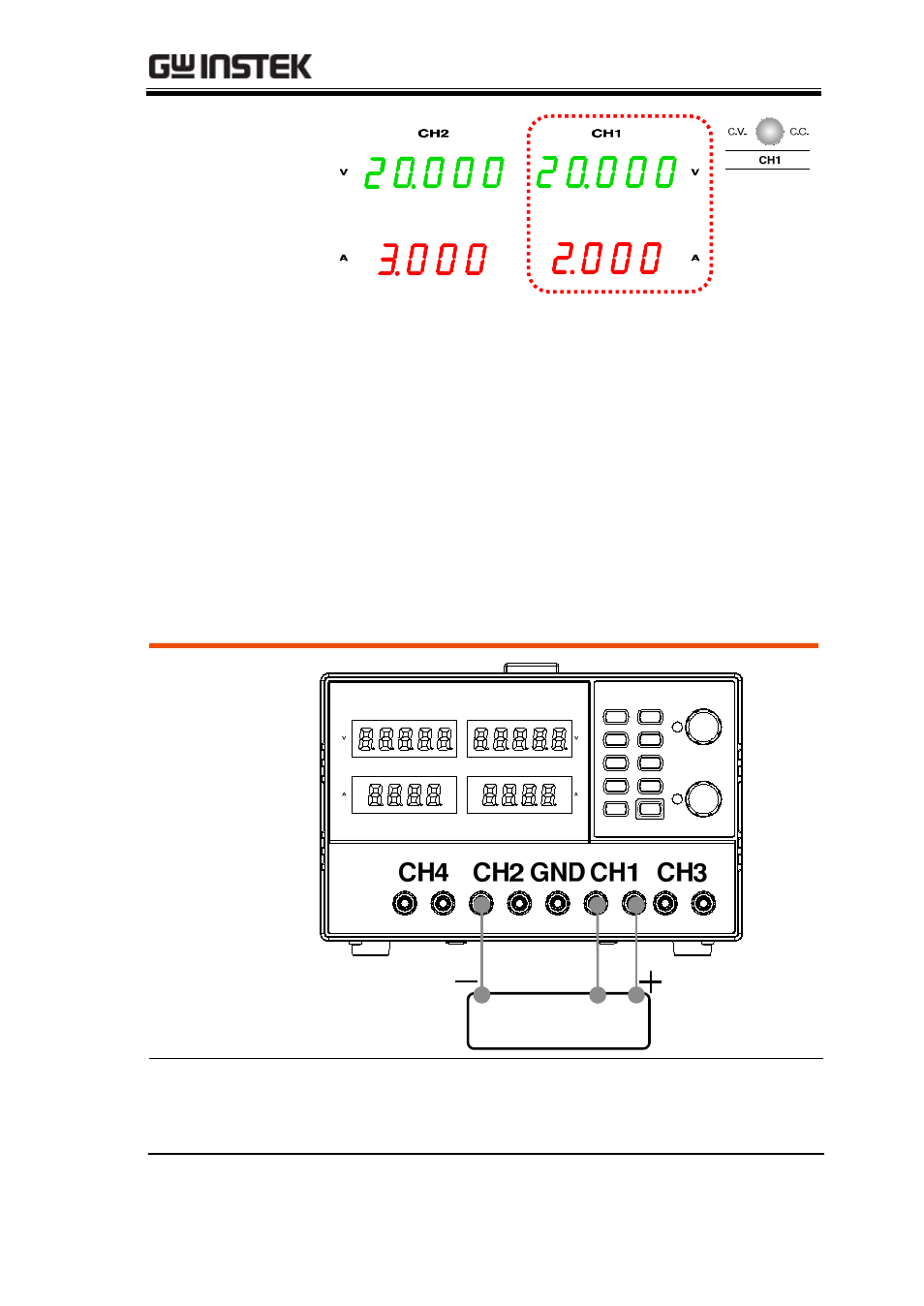

Voltage level Double the reading on the CH1
Voltage meter. In the above case,
the actual output is 20.0 x 2 =
40.0V.
Current level CH1 meter reading shows the
output Current. In the above
case, 2.000A. (CH2 Current
control must be in the Maximum
position=3.0A).
Tracking series with common terminal
Connection
LOAD
COM
Output rating 0~30V/0~3A for CH1 ~ COM
0~–30V/0~3A for CH2 ~ COM
35
