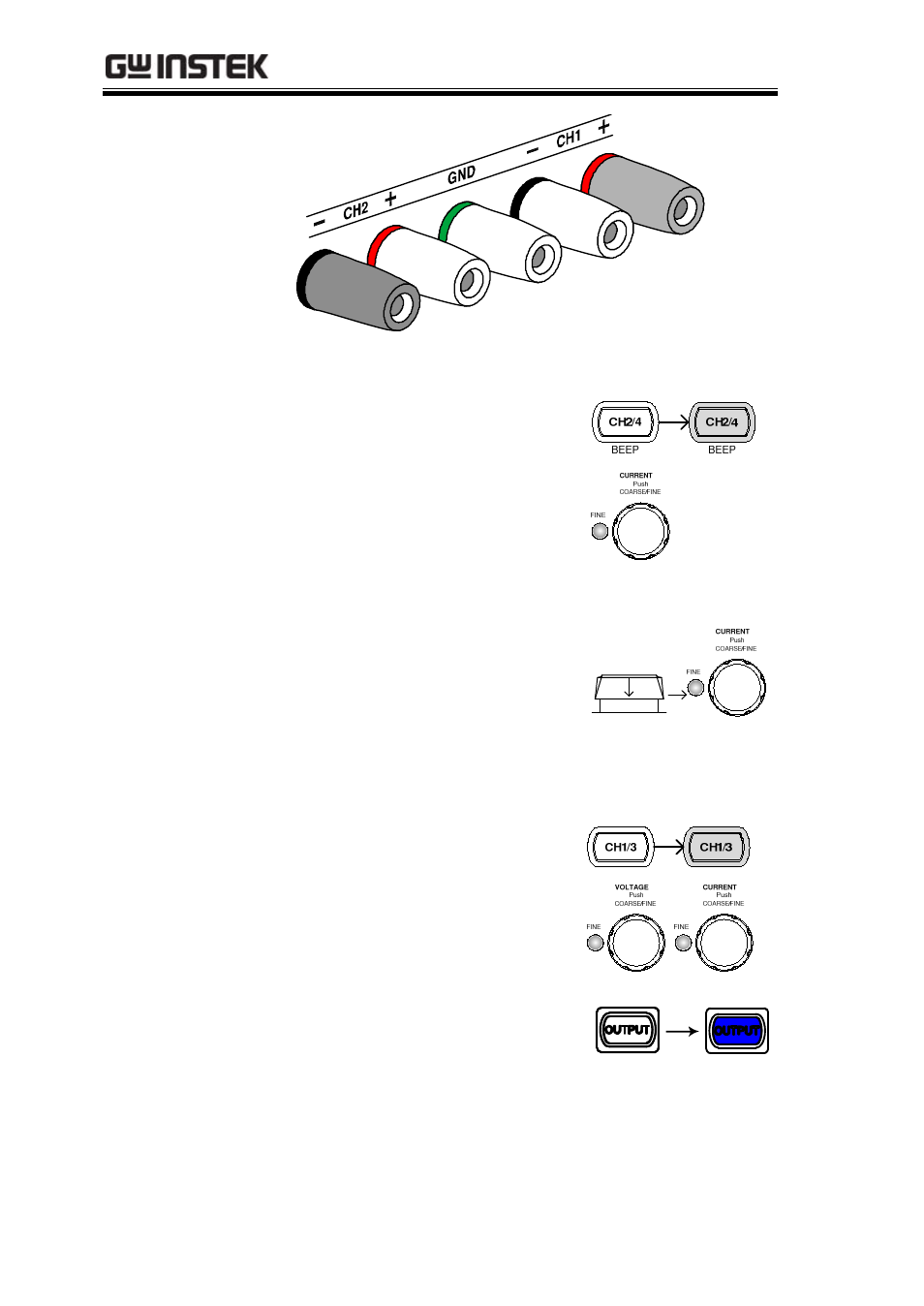

Note: this diagram shows non-European terminals.
3. Press the CH2 key (LED
turns on) and then use the
Current knob to set the CH2
output current to the
maximum level (3.0A).
By default, the Voltage and
Current knob work in the
coarse mode. To activate the
fine mode, press the knob to
turn the FINE LED on.
(Fine control)
• Coarse: 0.1V or 0.1A for each step
• Fine: 1mV or 1mA for each step
4. Press the CH1 key (LED
turns on) and then use the
Voltage and Current knob
to set the output voltage
and current level.
5. To turn on the output, press
the output key. The key LED
turns on.
6. Refer to the CH1 (Master) meter and indicator
for the output setting level and CV/CC status.
