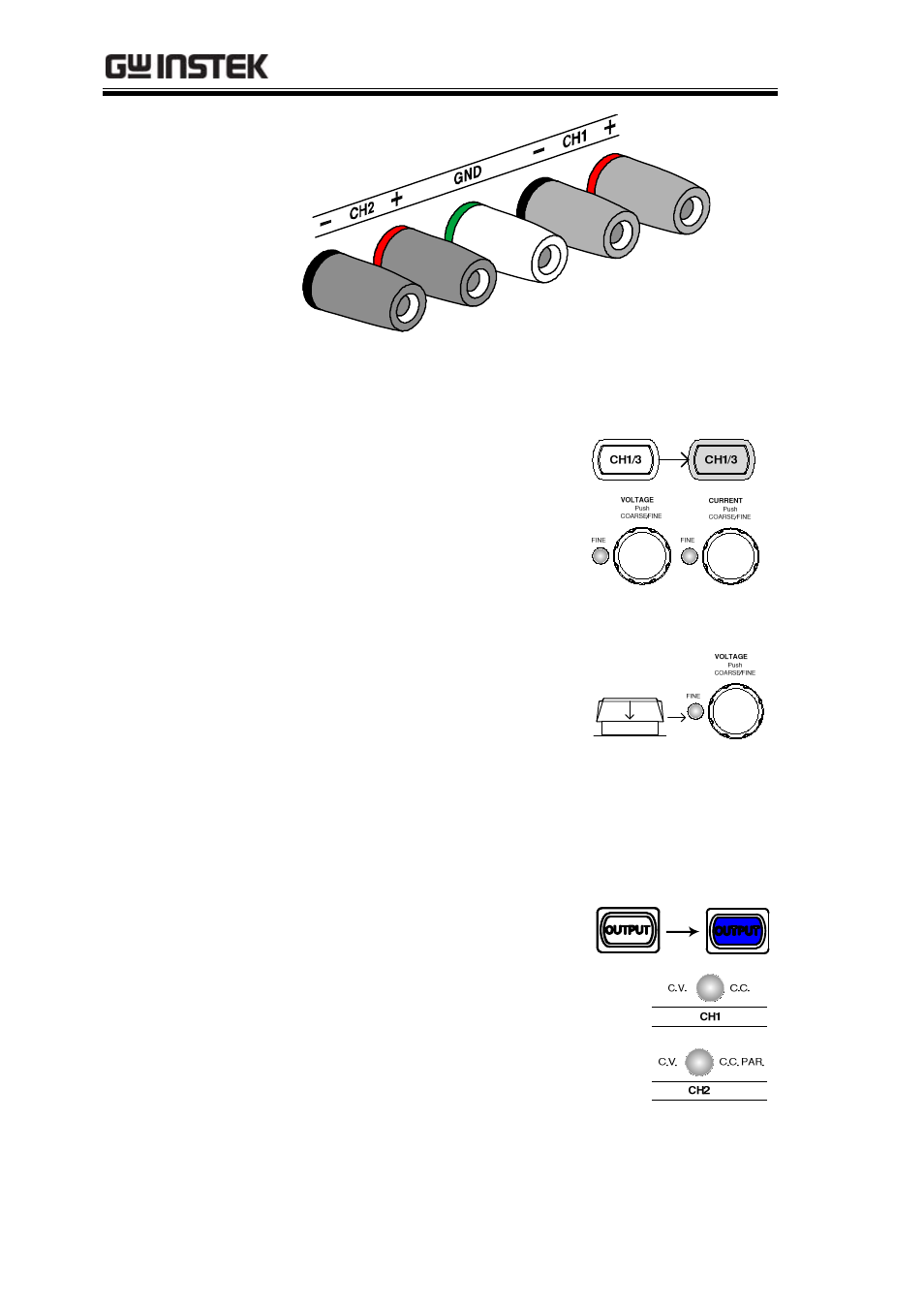

Note: this diagram shows non-European terminals.
3. Set the CH1 output voltage
and current. Press the CH1
key (LED turns on) and then
use the Voltage and Current
knob.
By default, the Voltage and
Current knob work in the
coarse mode. To activate the
fine mode, press the knob to
turn the FINE LED on.
(For CH1)
(Fine control)
• Coarse: 0.1V or 0.1A for each step
• Fine: 1mV or 1mA for each step
4. Repeat the above settings for the CH2.
5. To turn on the output, press
the output key. The key
LED turns on and the CH1
/ CH2 indicator shows the
output mode, CV or CC.
(CH1)
(CH2)
