OVERVIEW

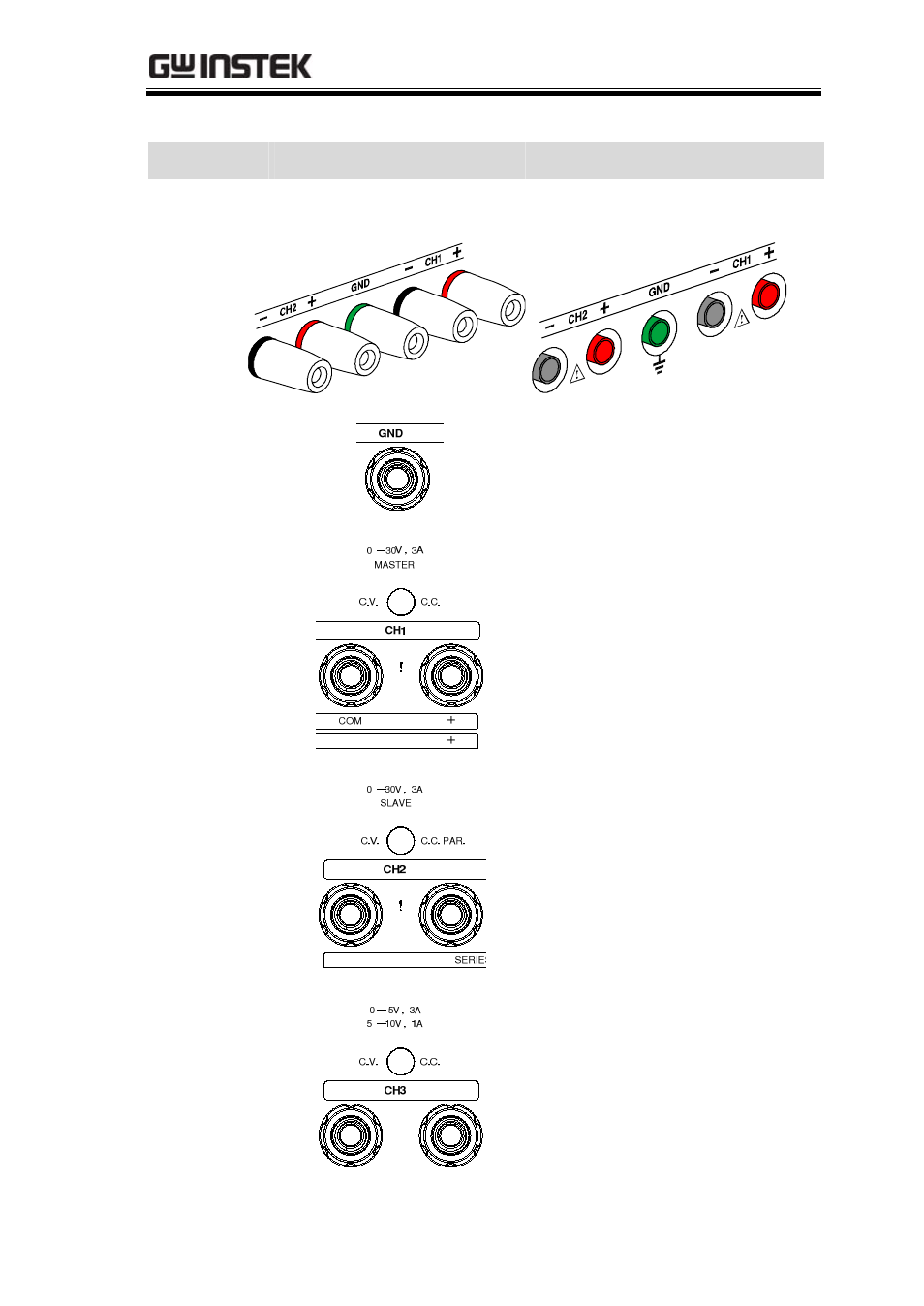

Terminals
Default Terminals European Terminals
GND
Terminal Accepts a grounding wire.
CH1 CV/CC
Indicator Indicates CH1 Constant
Voltage or Constant Current
state.
CH1 Output Outputs CH1 voltage and
current.
CH2
CV/CC/PAR
Indicator Indicates CH2 Constant
Voltage, Constant Current,
or Tracking Parallel
operation mode.
CH2 Output Outputs CH2 voltage and
current.
CH3 CV/CC
Indicator Indicates CH3 Constant
Voltage or Constant Current
state for the GPD-4303S.
CH3 Output Outputs CH3 voltage and
current.
