GPD-X303S Series User Manual

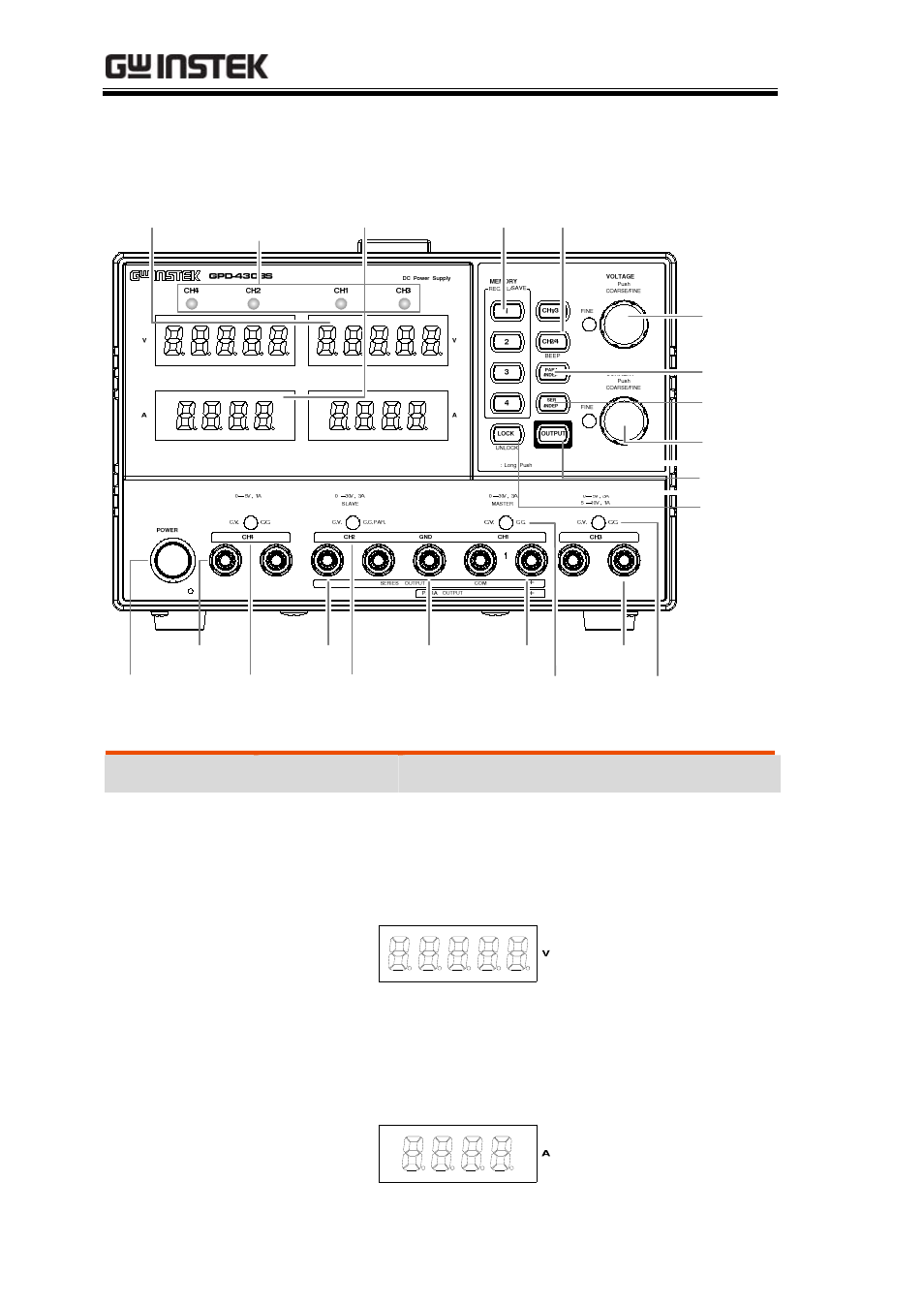

Front Panel Overview
VoltMeter Ammeter Memory Keys
Voltage
Knobs
Current
Knobs
Parallel
Keys
CH1/CH3, CH2/
CH4(Beep) Keys
Output Key
Lock Key
CH3 CV/CC
Indicator
CH3 Output
CH1 CV/CC
Indicator
CH1 Output CH2 Output
CH2 CV/CC/PAR
Indicator
CH4 Output
CH4 CV/CC
Indicator
GND Terminal
Series Keys
Power
Switch
Channel
Indicator
Display
Voltmeter Displays output voltage of each channel.
GPD-4303S: CH1/CH3 and CH2/CH4
GPD-2303S/3303S: CH1 and CH2
5 digits:
Ammeter Displays output current of each channel.
GPD-4303S: CH1/CH3 and CH2/CH4
GPD-2303S/3303S: CH1 and CH2
4 digits:
16
