PSM SERIES PROGRAMMABLE POWER SUPPLY

PROGRAMMER MANUAL

⎯ 59 ⎯

7. STATUS AND ERROR REPORTING

A set of status registers allows the user to quickly determine the power

supply’s internal processing status. The status register, as well as the status
and event reporting system, adhere to SCPI recommendations.

Structure of System

The sketch of the status and event reporting system is showed as figure
7. Each component of the sketch represents a set of registers and queues
that can read, report, or enable the occurrence of certain events within the
system.

If a specific event in the power supply sets a bit in a status register, reading
which can tell you what types of events have occurred.

Each bit in the status register corresponds to a bit in an enable register; the
enable bit must be high for the event to be reported to the Status Byte
Register.

A Service Request (SRQ) is the last event to occur. The SRQ requests an
interrupt on the GPIB to report events to the system controller.

Status Registers

There are two kinds of status registers are included to the programmable
power supplies.

z

OPERation Status Registers ( CONDition, EVENt, and ENABle)

z

QUEStionable Status Registers (CONDition, EVENt, and ENABle)

The lower level nodes: QUEStionable and OPERation each have three 16
bits registers: CONDition, EVENt, and ENABle. Figure 8 shows the
sequential relationship between these three types of registers and the
commands that relate to each register.

PSM SERIES PROGRAMMABLE POWER SUPPLY

PROGRAMMER MANUAL

⎯ 60 ⎯

Not Used

Not Used

Not Used

Not Used

Not Used

Not Used

Summary OVP

Not Used

Not Used

Not Used

Not Used

Not Used

Not Used

Not Used

Summary Voltage
Summary Current

QUEStionable

Status

0

1

2

3

9

15

14

13

12

11

10

8

7

6

5

4

Not Used

Not Used

Not Used

Not Used

Not Used

Not Used

Not Used

Not Used

OPERation

Status

Not Used

2
3

0

1

14

13

12

11

10

9

8

7

6

5

4

15

Command Error

Power On

User Request

Execution Error

Device Dependent Error

Query Error

Not Used

Standard Event Status Registers

Operation Complete

ESB

RQS/MSS

MAV

Not Used

Status Byte Register

Not Used

Summary of IEEE 488.2 Status Structure Registers

2

3

0

1

7

6

5

4

2

3

0

1

7

6

5

4

E/E

Not Used

Not Used
Not Used
Not Used
Not Used
Not Used
Not Used

QUES

OPER

SRQ

Error/Event Queue

Output Queue

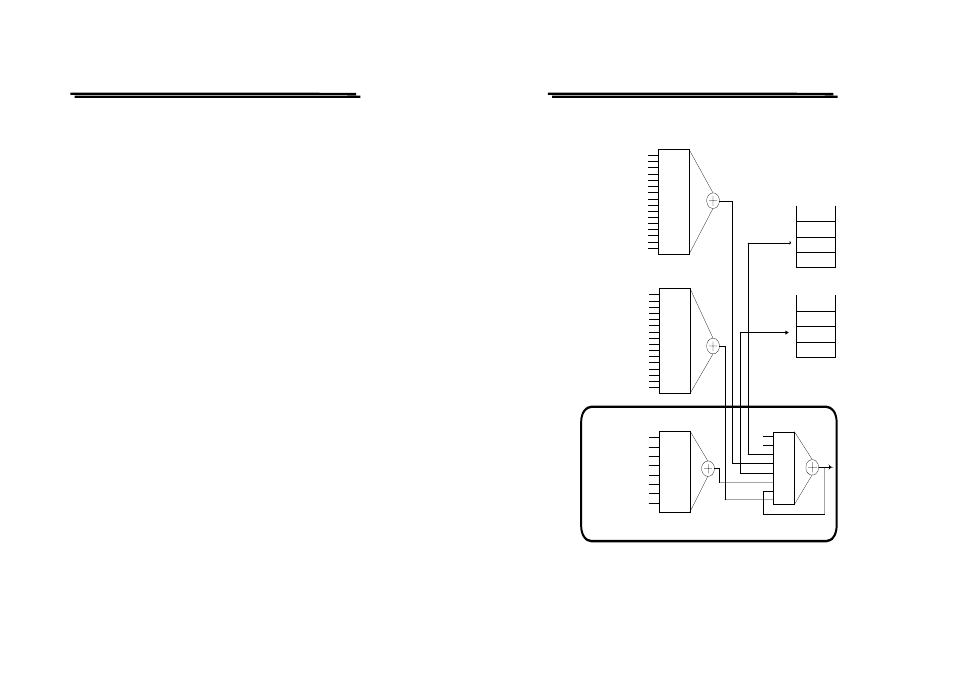

Figure 7. A graphic representation of the status registers and their connections.
