GOS-6051/6050/6031/6030 OSCILLOSCOPE
USER MANUAL
⎯ 10 ⎯

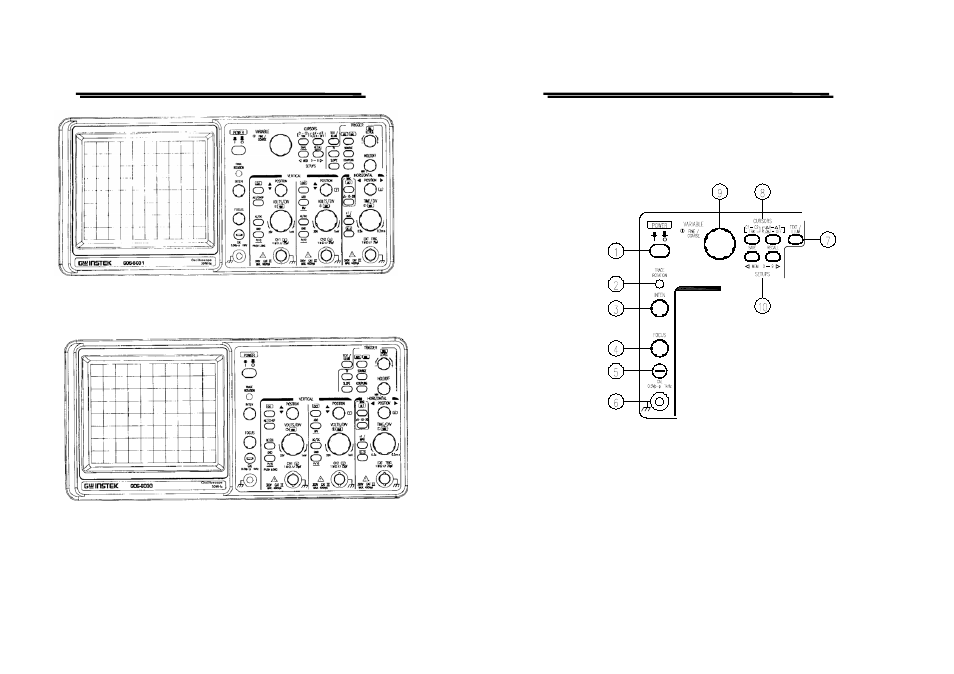

Front panel of GOS-6031/6051
Front panel of GOS-6030/6050
GOS-6051/6050/6031/6030 OSCILLOSCOPE
USER MANUAL
⎯ 11 ⎯
4-1.Front Panel
Display controls
The display controls adjust the on-screen appearance of the waveform and
provide a probe compensation signal source.
(1) POWER – Pushbutton
When switch on the oscilloscope to have all LEDs lighted and wait a few
seconds, the normal operation mode is present. Then the last settings
become activated and the LED indicates “ON” condition.
(2) TRACE ROTATION
The TRACE ROTATION is for aligning the horizontal trace in parallel with
graticule lines. This potentiometer can be adjusted with a small screwdriver.
