GOS-6051/6050/6031/6030 OSCILLOSCOPE
USER MANUAL
⎯ 28 ⎯
5. OPERATION METHOD
This section contains basic operation information and techniques that should be
considered before proceeding any measurement. As for the location and
function of instrument controls, connectors, and indicators, refer to the
“Instruction of Front Panel and Rear Panel” of this manual.
5-1.Readout Display
The CRT readout display indicates how to set up the instrument controls. No
physical marking shown on the rotating switches indicates the control setting.
A key to the location and type of readout information displayed is illustrated in
figure 5-1:
GOS-6051/6050/6031/6030 OSCILLOSCOPE
USER MANUAL
⎯ 29 ⎯

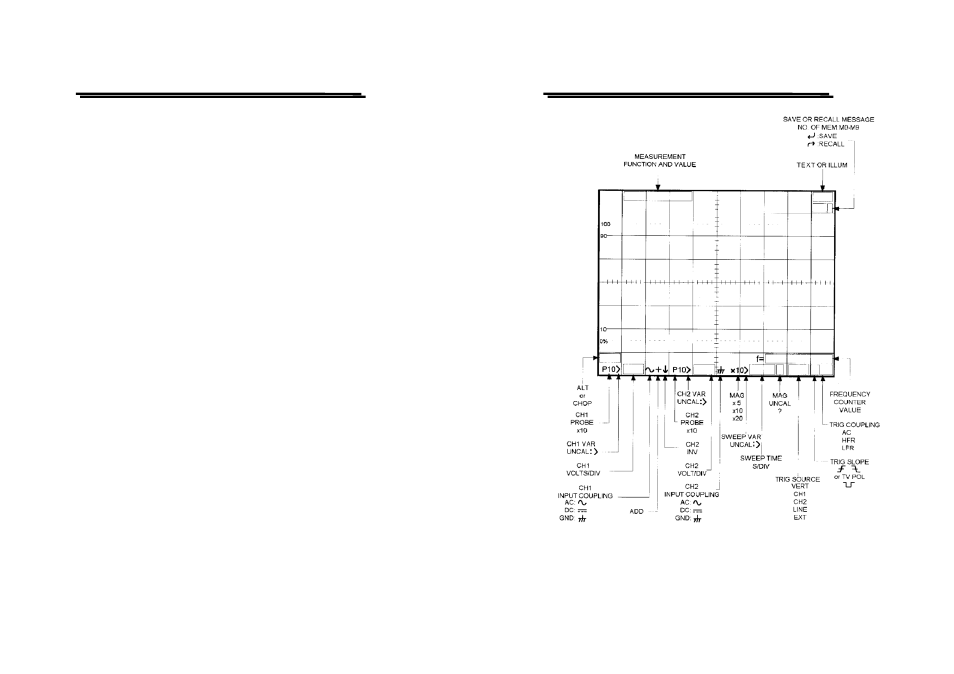

Figure 5-1 Readout Layout
