28 411UDAC Manual — P/N 51073:E 9/20/2013
Installation Optional Programmer
2.7 Optional Programmer
The Fire-Watch 411 Series DACT Programmer (Model PRO-411) is used to:
 switch between the digital alarm communicator's five Modes of operation
 set the digital alarm communicator's 24 hour internal clock in Real-Time Clock Mode
 program the 411UDAC digital alarm communicator in Program Mode
 test the status of input and output circuits (including telephone lines) in Troubleshoot Mode
 return all digital alarm communicator programming to the factory default settings in Default
Mode
To use the PRO-411 Programmer:
1. Remove all power from the 411UDAC.
2. Unlock and open the 411UDAC door.
3. Connect the Programmer cable to connector J2 located in the lower right corner of the
411UDAC. Note that the key on the connector must align with the slot in the J2 connector.
4. Reapply power to the 411UDAC.
5. Operate the Programmer by pressing the MODE key. Enter the appropriate four digit code
and then press the [ENTER/STORE] key.
Note that it is not possible to switch from Normal Mode to any other mode if any of the four Chan-
nels is programmed for fire alarm or fire supervisory and is active, that is, in alarm (shorted).
CAUTION!
HIGH VOLTAGE
COMM. FAIL
BATT FAULT
SYSTEM
TROUBLE
SUPV.
AC PWR
ALARM
GND FAULT

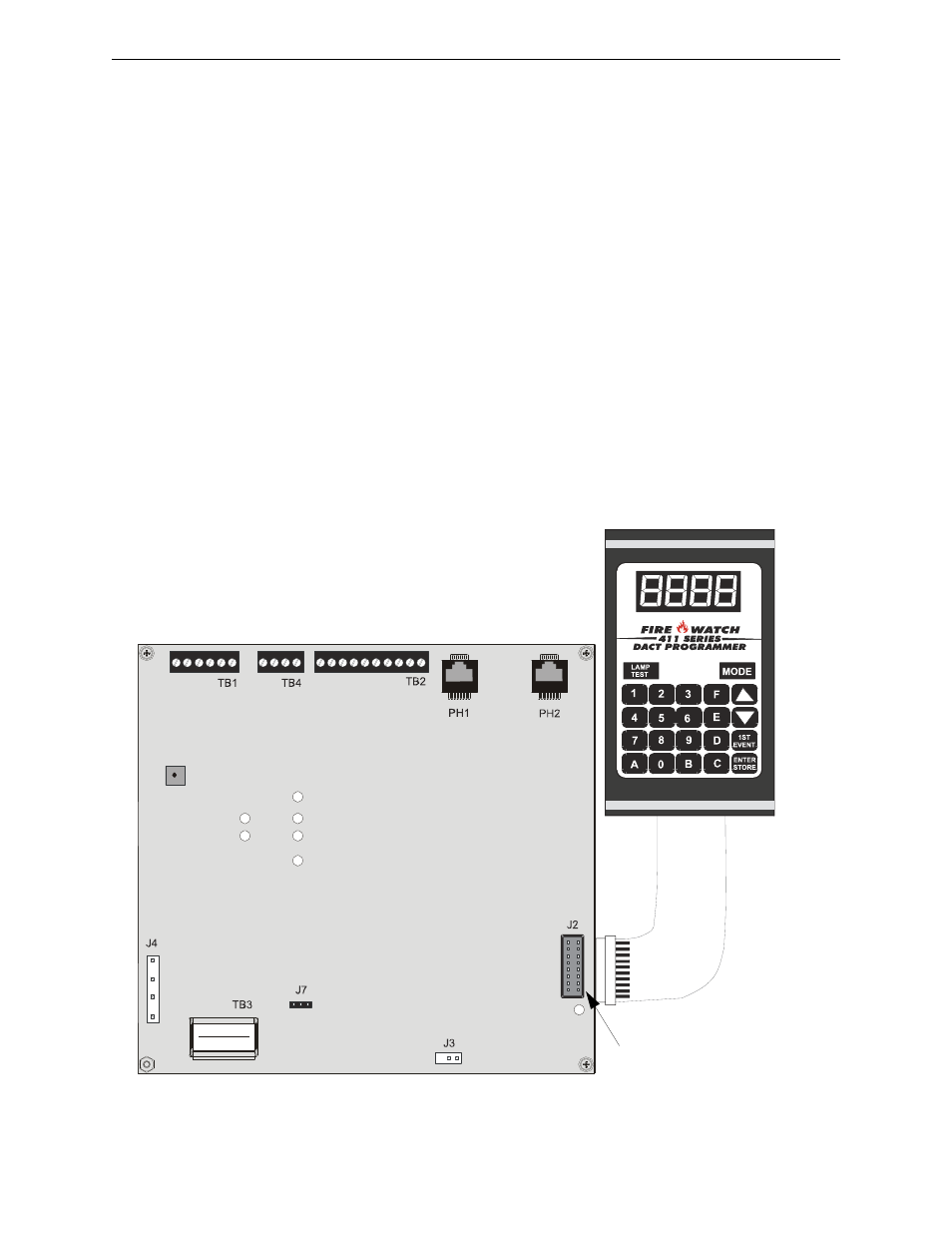

Figure 2.10 Programmer Connection to 411UDAC
Cable attached
to Programmer
411UDAC
Programmer
J2 connector
41
1a-
pr
o2
.w
m
f
- +
NOTE: The Fire•Watch 411 Series DACT
Programmer must be removed when not in use.
