Fire-Lite BB-55 Battery Box - Manual

Battery/Peripherals Enclosure PN 50295:B 07/24/2001
This cabinet consists of a backbox with an integral,
lockable door that is hinged on the bottom to swing
down for access.
It is designed to be mounted a minimum of 6 inches
(15.24 cm) below the fire alarm control panel
(FACP). When both cabinets are surface mounted,
the knockout in the bottom-right corner of the FACP
will line up directly above the knockout in the top-
right corner of this enclosure.
This enclosure should be mounted in a clean, dry,
vibration-free area, using the six holes provided.
Note: The enclosure has 0.875 in. (2.2225 cm)
knockouts which accept standard 0.75 in. (1.905 cm)
conduit.

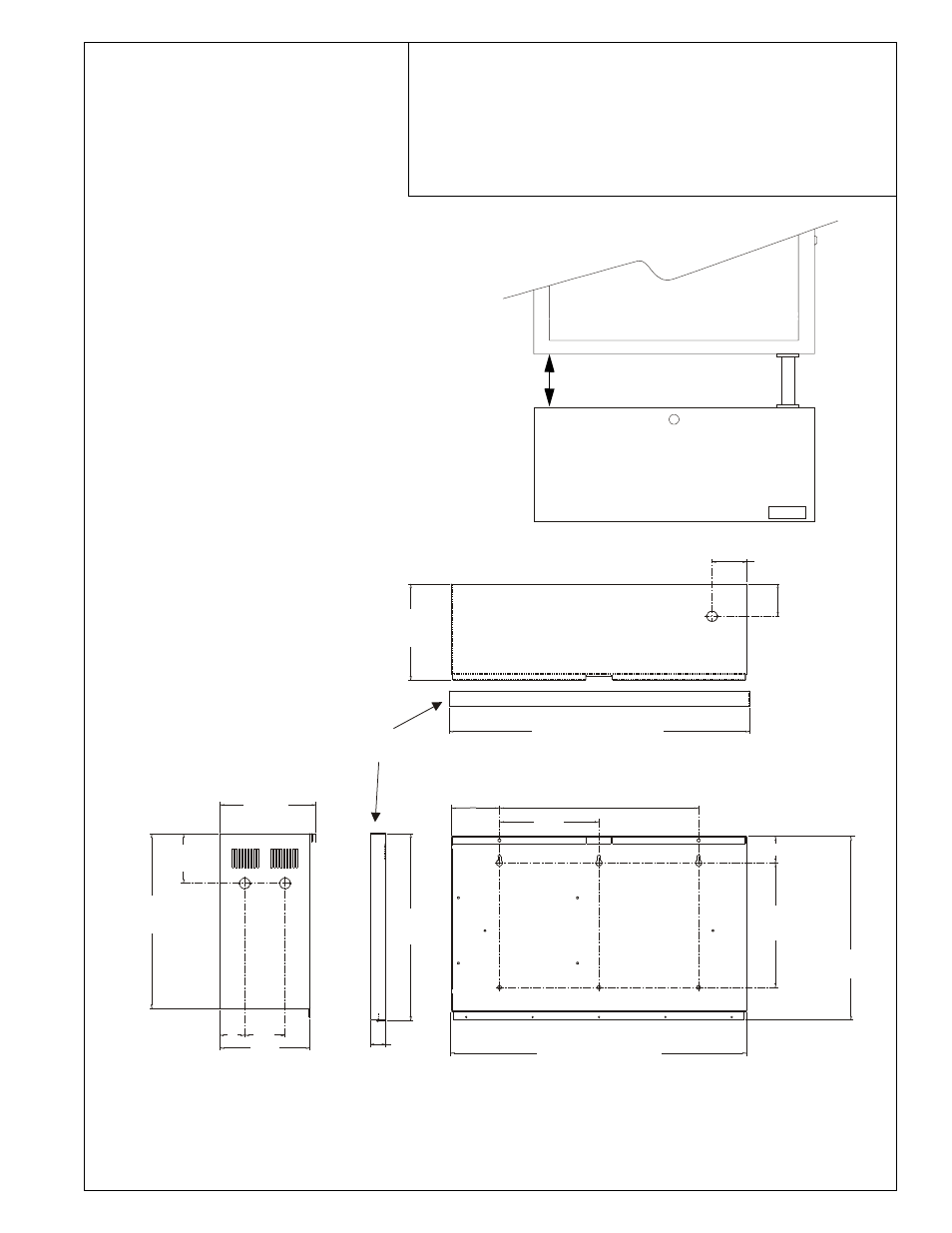

FACP
Battery/Peripherals Enclosure
6 inch
minimum
(15.24 cm)
Conduit
7.7 30 in.
(196.342 m m )
2.6 6 in .
(67.5 64 m m )
2.8 0 in . (71.12 m m )
24.125 in. (612 .775 m m )
23.750 in. (603 .25 m m )
16.00 in. (406.4 m m )
15.00 in.
(381 m m )
14.75 in
(374.65 m
10.00 in.
(254 m m )
8.0 0 in .
(203.2 m m )
2.1 25 in.
(53.9 75 m m )
3.8 75 in.
(98.4 25 m m )
1.2 5 in
(31.7 5 m m )
7.7 30 in.
(196.342 m m )
4.0 0 in .
(101.6 m m )
7.2 50 in.
(184.15 m m )
2.
00
i
n
.
(5
0
.8 m
m
)
3.
2
50 i
n
. (
82.
5
5
m
m
)
14.06 in.
(357.124 m m )
Top
Front (without door)
Door Left Side
Battery/Peripherals Enclosure
Product Installation Document
PN 50295:B 07/24/2001 ECN 01-250
