22 411UDAC Manual — P/N 51073:E 9/20/2013
Installation Input Channels
When the panel is ready to have power applied, connect the battery cable plug to connector J3 on
the 411UDAC main circuit board. The battery charger is capable of recharging sealed lead acid
type batteries. Refer to the battery calculations table to determine the correct battery rating.
2.4 Input Channels
The 411UDAC has four channel inputs. Channel/input field wiring is supervised for opens (trou-
ble), shorts (alarm) and ground faults (zero ohms impedance between panel and earth ground) by
the 411UDAC. All conditions are visually and audibly annunciated and, if programmed, communi-
cated to a Central Station.
Each channel is a Style B (Class B) Initiating Device Circuit with the exception of channel/input 3
which can be configured for Style B or Style D (Class A). All inputs can be connected to normally-
open contact type devices. In addition, inputs 1 and 3 can be connected to conventional 4-wire
smoke detectors. Figure 2.5, “Wiring Initiating Device Circuits” on page 23 for information on
wiring Style B and Style D circuits.
! CAUTION: BATTERY CONTAINS SULFURIC ACID
THE BATTERY CONTAINS SULFURIC ACID WHICH CAN CAUSE SEVERE BURNS TO THE
SKIN AND EYES, AND CAN DESTROY FABRICS. IF CONTACT IS MADE WITH SULFURIC
ACID, IMMEDIATELY FLUSH THE SKIN OR EYES WITH WATER FOR 15 MINUTES AND SEEK
IMMEDIATE MEDICAL ATTENTION.

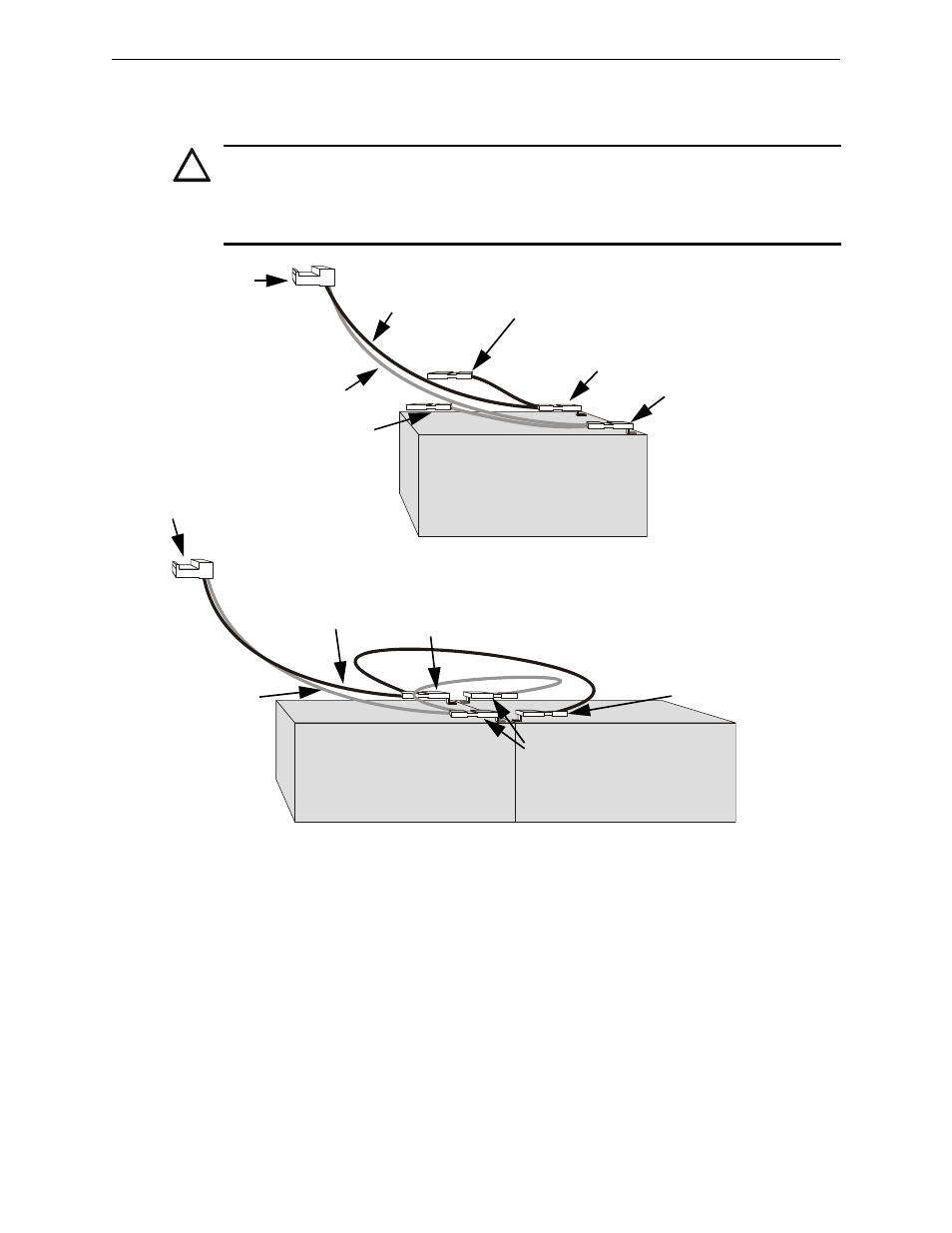

Figure 2.4 Battery Cable Connections
Two 12 Volt Batteries - Up to 14 Amp Hour Applications
One 12 Volt Battery - Up to 12 Amp Hour Applications
Black Wire
Red Wire
Negative (-) Terminal
Positive (+) Terminal
Unused wire - tie-wrap
or tape to long wires
Unused wire - tie-wrap
or tape to long wires
Connect to J3 on
411UDAC main circuit
board
Connect to J3 on 411UDAC
main circuit board
Black Wire
Red Wire
Negative (-)
Terminal
Negative (-)
Terminal
Positive (+)
Terminals
