Aquametrix AM-TBR Turbidimeter User Manual User Manual
Page 11
6

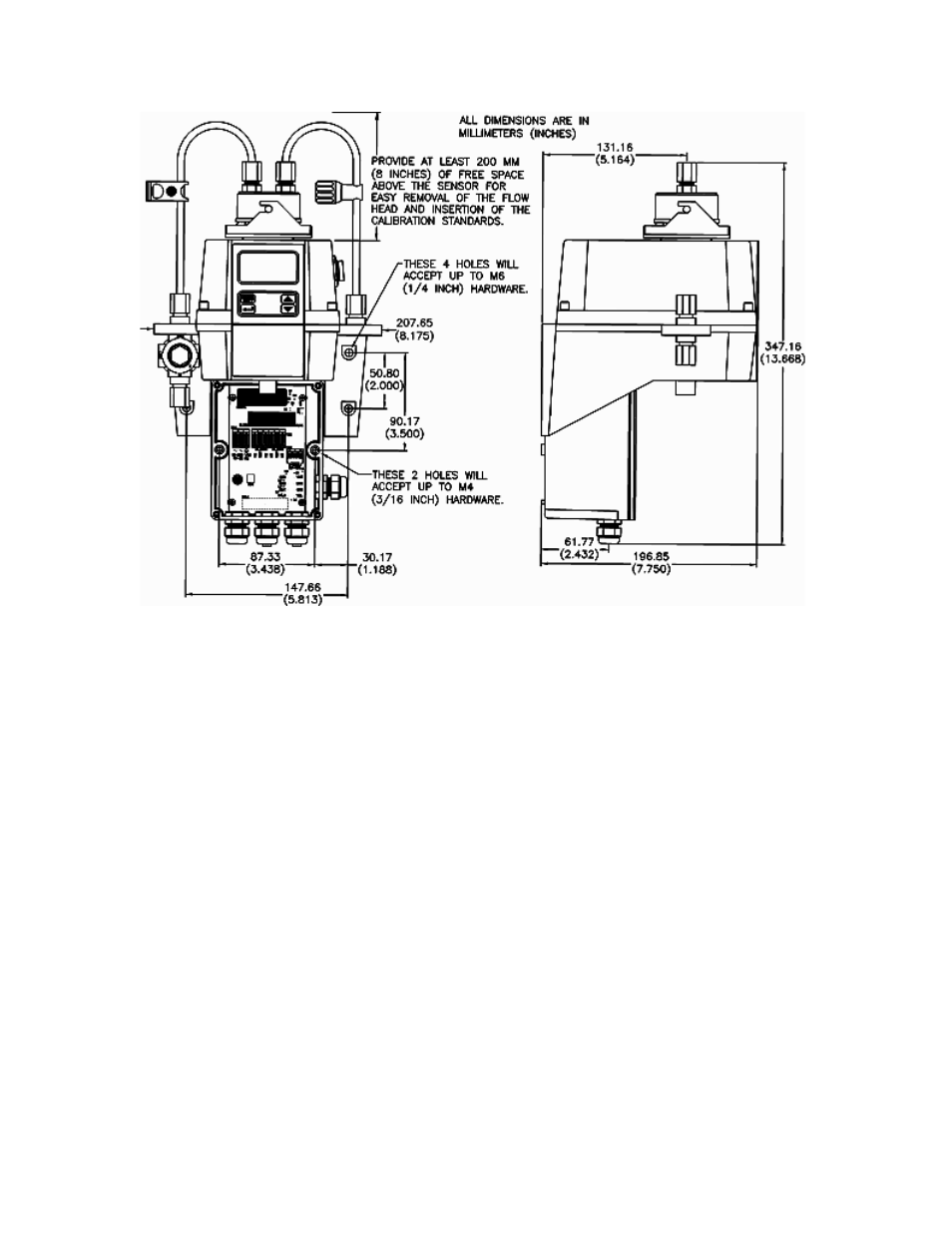

Figure 3 - Overall Mounting Dimensions of the Instrument
It is critical that the instrument be mounted as close as possible to the sampling point to ensure a
quick response time (within 2-3 meters (6-10 ft) of the sampling point).
3.2. Plumbing
The recommended plumbing for the instrument is shown in Figure 4. The instrument is designed
to require very little head pressure to operate; around 6.9kPa (1 PSI). The flow through cuvette is
rated for a flow of 100ml/min. – 1 liter/min. (0.026-0.26Gal/min). The integral pressure regulator
is rated for a maximum pressure of 1380 kPa (200 PSI.). The maximum allowable fluid
temperature is 50°C (122°F).
