Aquametrix EX100 Series Magmeter Sensors User Manual
Aquametrix, Model ex100 series magmeter flow sensor, Water analytics

by
Water Analytics
AquaMetrix
Features
•
No moving parts
•
Durable
•
Adjustable depth
•
Hot-tap available
•
Brass or stainless steel
•
Immersibility available
•
Reverse flow output available

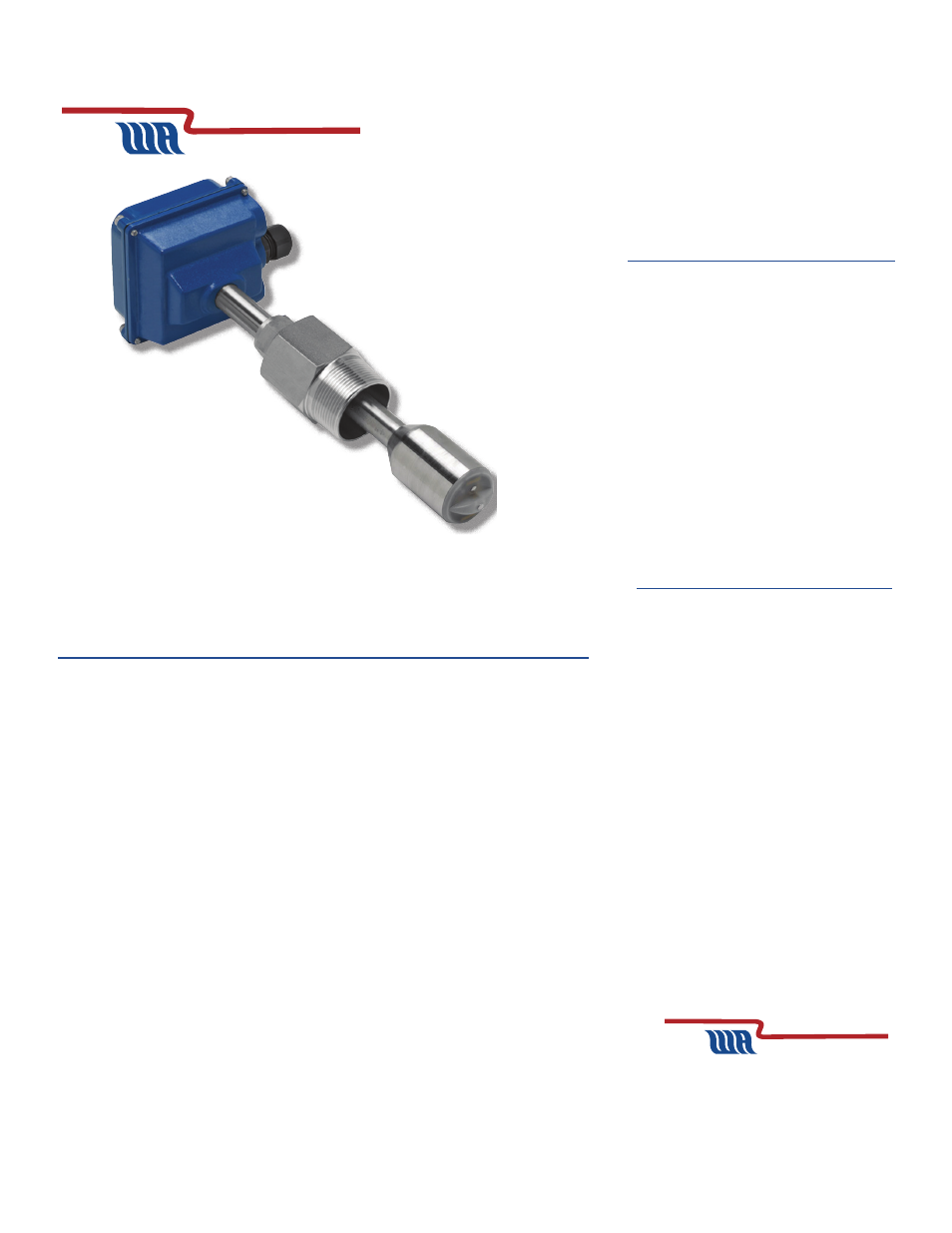

The complete lack of moving parts of the EX100/200-Series insertion flow
sensor is the source of its reliability. Brass and stainless steel models with-
stand a variety of temperature, pressure, and chemical conditions. The EX-
Series has no rotor to stop turning in dirty water and there are no bearings to
wear out. Like all meters, when used in chemical injection applications, they
should be installed upstream of the chemical line (or far enough downstream
to allow complete mixing of fluids before the meter).
A rapidly reversing magnetic field is produced in the lower housing. As the
fluid moves through this field, a voltage is generated that is measured and
translated into a frequency signal proportional to flow rate. This square wave
signal can be sent directly to a PLC or other control or can be converted us-
ing the Shark or other controllers and analyzers.
A modular system of electronics can be attached directly to the flow sensor
or remotely mounted. The adapter fitting of the EX sensor is standard male
NPT, and can be directly threaded into ordinary saddles or threaded weld
fittings. The EX115 and 215 (not shown) include an isolation valve, allowing
hot-tap installation, or installation and removal under pressure; a bronze ball
valve is standard, with a 316 stainless steel valve option if needed.
A hot tap version, reverse flow output and immersibility are all availablev.
Contact Water Analytics for information on these and other options.
Description
100 School Street
Andover, MA 01810
978-749-9949
Toll free - 855-747-7623
wwww.WaterAnalytics.net
Applications
•
3”- 48” pipe (up to 72” optional)
•
Clean or “dirty” liquids
•
Conductive liquids
•
Municipal
•
Industrial
•
Irrigation
Model EX100 Series
Magmeter Flow Sensor
