Aquametrix IP80 Series Paddle Wheel Sensors User Manual
Aquametrix, Model ip80 series impeller flow sensor, Water analytics

Features
• Low-friction, long-life jewel bearings
• Single moving part
• Six bladed impeller
• Fully field-repairable
• Choice of materials for compatibility
with variety of chemicals
• Integrated Tee and sensor
• Fits 1/2” to 8” pipe sizes
• Fixed depth in fitting ensures proper
placement in pipe
• High level signal can be sent up to
2000 feet
• Each fitting individually calibrated
and marked with K-factor (Pulses per
Gallon)

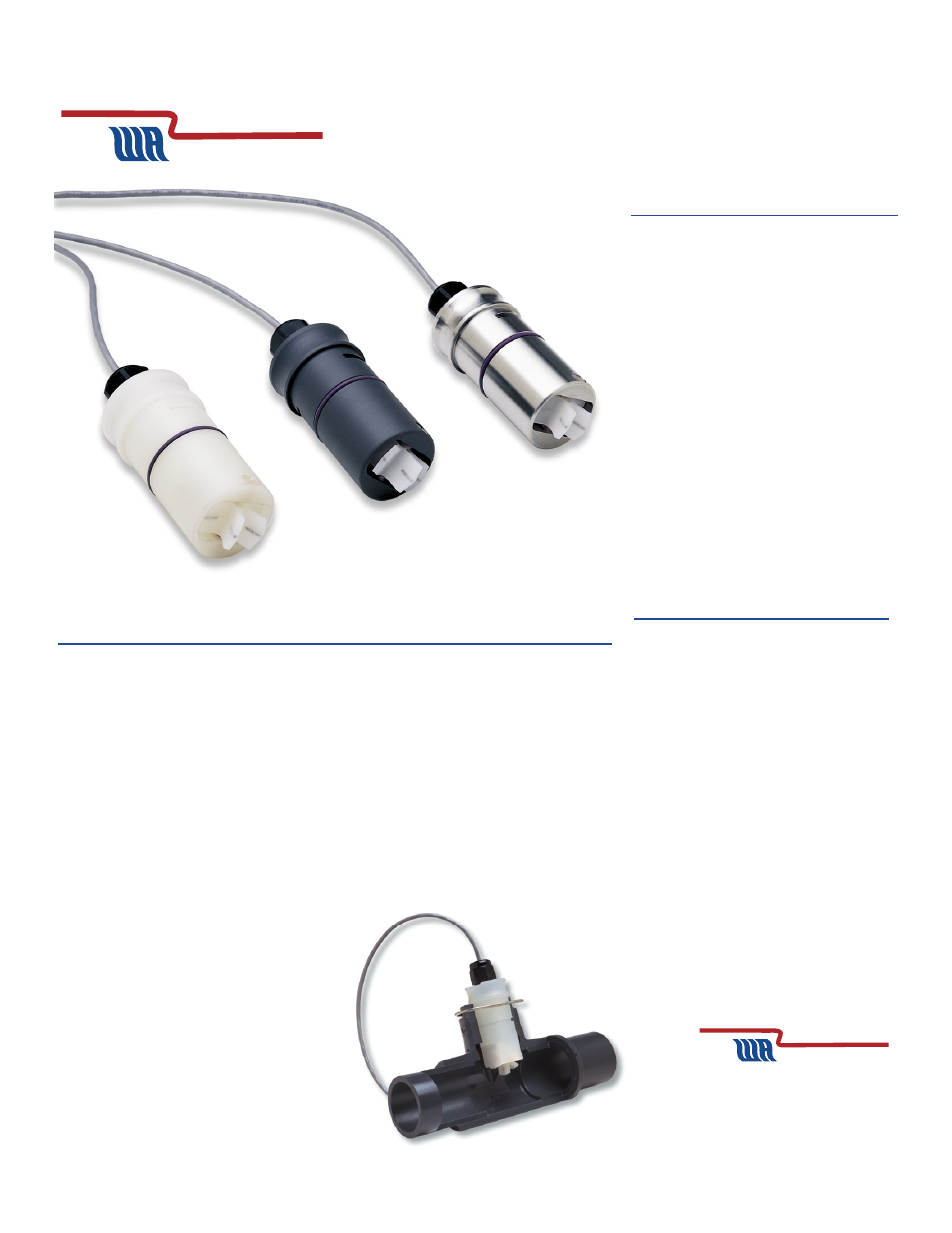

The IP80 series are impeller type (or “paddlewheel”) insertion meters de-
signed for use with a wide variety of liquids in pipe sizes 1/2” to 8”. Sensors
are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies
are machined from a solid rod for maximum precision. High-quality jewel
bearings and nickel-bound tungsten carbide shafts are used for extreme low
friction and long life.
The rotation of the rotor is detected by a non-drag Hall-effect sensor. Output
is a current-sinking pulse (square wave), which can be sent long distances
(up to 2,000 feet) without a transmitter. This signal can be connected directly
to PLC’s, counters, and computer cards, as well as a variety of AquaMetrix
controls and displays.
For rate and total display, the Shark-120/240 controller or Shark TX/P trans-
mitter (loop powered) models are compatible with IP80 series sensors. They
can be mounted in either surface, pipe
or panel configurations.
The IP80 series require special fittings
that ensure correct depth placement in
the pipe. Fittings come in a variety of
materials for compatibility with specific
applications. Tee fittings are individu-
ally wet-calibrated at the factory and
marked with the K-factor (pulses per
gallon). Saddle fittings must be field-
installed on the pipe and do not come
wet-calibrated. K-factors for saddles
are based on factory testing.
Description
100 School Street
Andover, MA 01810
978-749-9949
Toll free - 855-747-7623
www.WaterAnalytics.net
Applications
• Waste water flow
• Water Treatment systems
• Irrigation
• Groundwater Remediation
• Chemical Mixing
• Process cooling systems
• Neutralizaton Systems
• Process flow control
• Filtration systems
Model IP80 Series
Impeller Flow Sensor
