8.13 Drive Pipe Installation
After fastening the pipe sections together to form the drive pipe, lift the drive pipe and place it
onto the guide brackets at the top of the track units. (See Fig. 40)
Important!
The drive pipe is heavy and will require several workers to lift it into position.
Do not attempt to lift the drive pipe without a sufficient number of workers.
Note: For installation with very long drive pipes it may be necessary to leave one or more junctions of
the drive pipe unattached to create lighter drive pipe sections which can be more easily lifted onto the
guide brackets. Connect the loose junctions with pop rivets after the drive pipe is placed onto the guide
brackets.

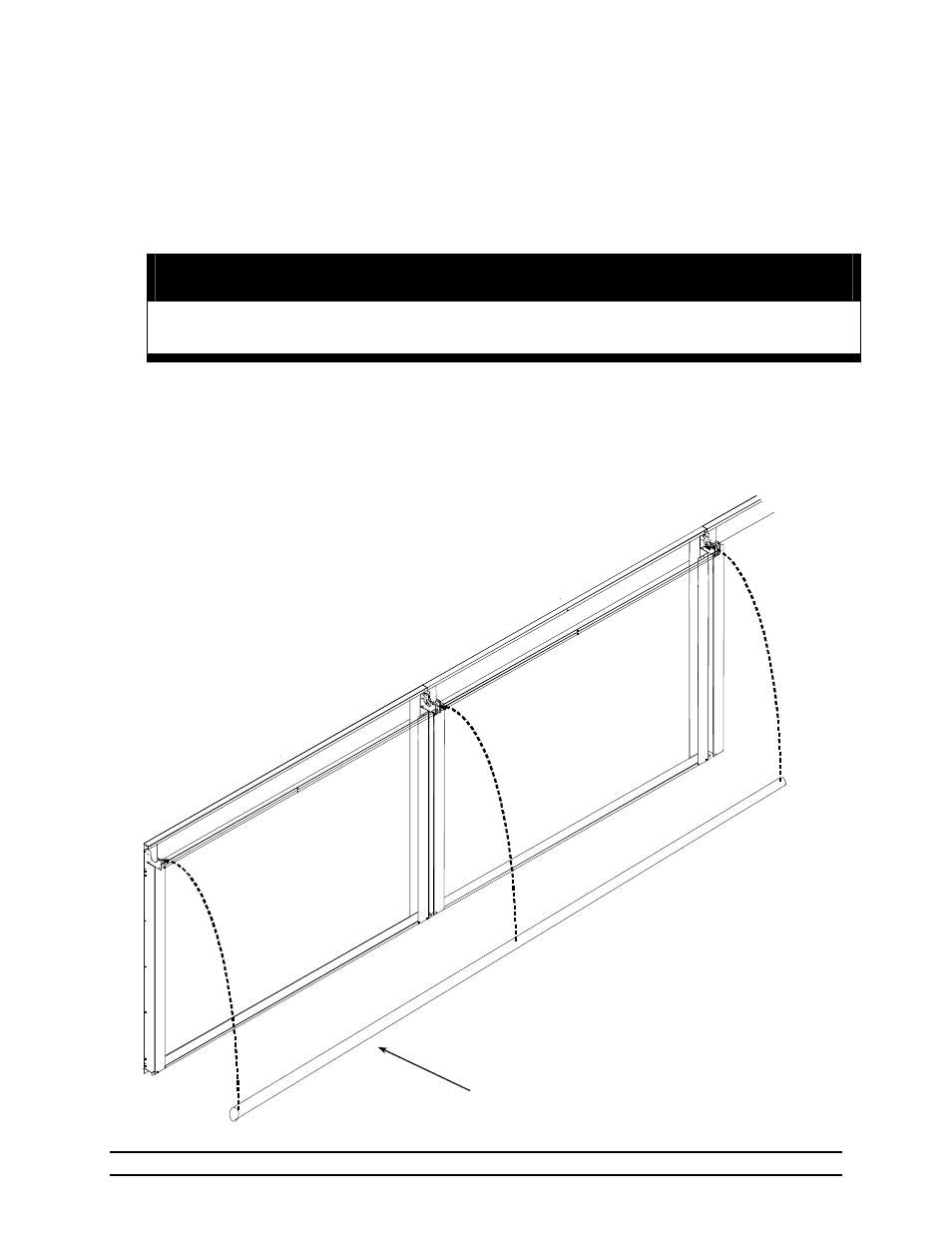

Figure 40
Drive pipe
Note: The drive pipe assembly is
heavy! Make sure that there are a
sufficient number of workers to lift
the drive pipe onto the guide
brackets.
Lift drive pipe assembly
and place onto the guide
brackets at the top of the
track units.
Assembled
drive pipe.
