Frame payload pattern
Flow Generator allows you to define the pattern to be used as the frame payload. The frame payload
pattern must be an alphanumeric ASCII string between 1 and 32 characters in length. The default
frame payload pattern value is 0, which produces a random pattern of alphanumeric ASCII characters
with a variable string length between 1 and 32 characters.
There are two ways to change a frame payload pattern; you can change the default payload pattern,
or you can change the payload pattern for a single flow.
To see the current generic payload pattern, enter flow --show -ctrlcfg; to see the payload pattern for
a specific flow, enter flow --show flow_name -ctrlcfg.
Changing the default frame payload pattern
Assigning a frame payload pattern without defining a flow creates a default that applies to all
subsequently-created flows. The following example sets the default payload pattern for all new flows to
“TestFlow”.
switch:admin> flow --control -feature generator -pattern "TestFlow"
Changing the frame payload pattern for a specific flow
Explicitly assigning a frame payload pattern to a flow overrides the existing frame payload pattern for
that flow, and affects only that flow. Changing a payload pattern can only be done to an inactive flow.
The following example sets the default payload pattern for the flow F2 to “a5a5a5”.
switch:admin> flow --control F2 -feature generator -pattern "a5a5a5"
Flow Generator examples
The following examples describe how to work with Flow Generator flows.
Creating a flow from a specific source ID to a specific destination ID
To create a flow between a specific source ID (SID) and a specific destination ID (DID), complete the
following steps.
1. Create two SIM ports.
2. Create an active flow from the SID to the DID.

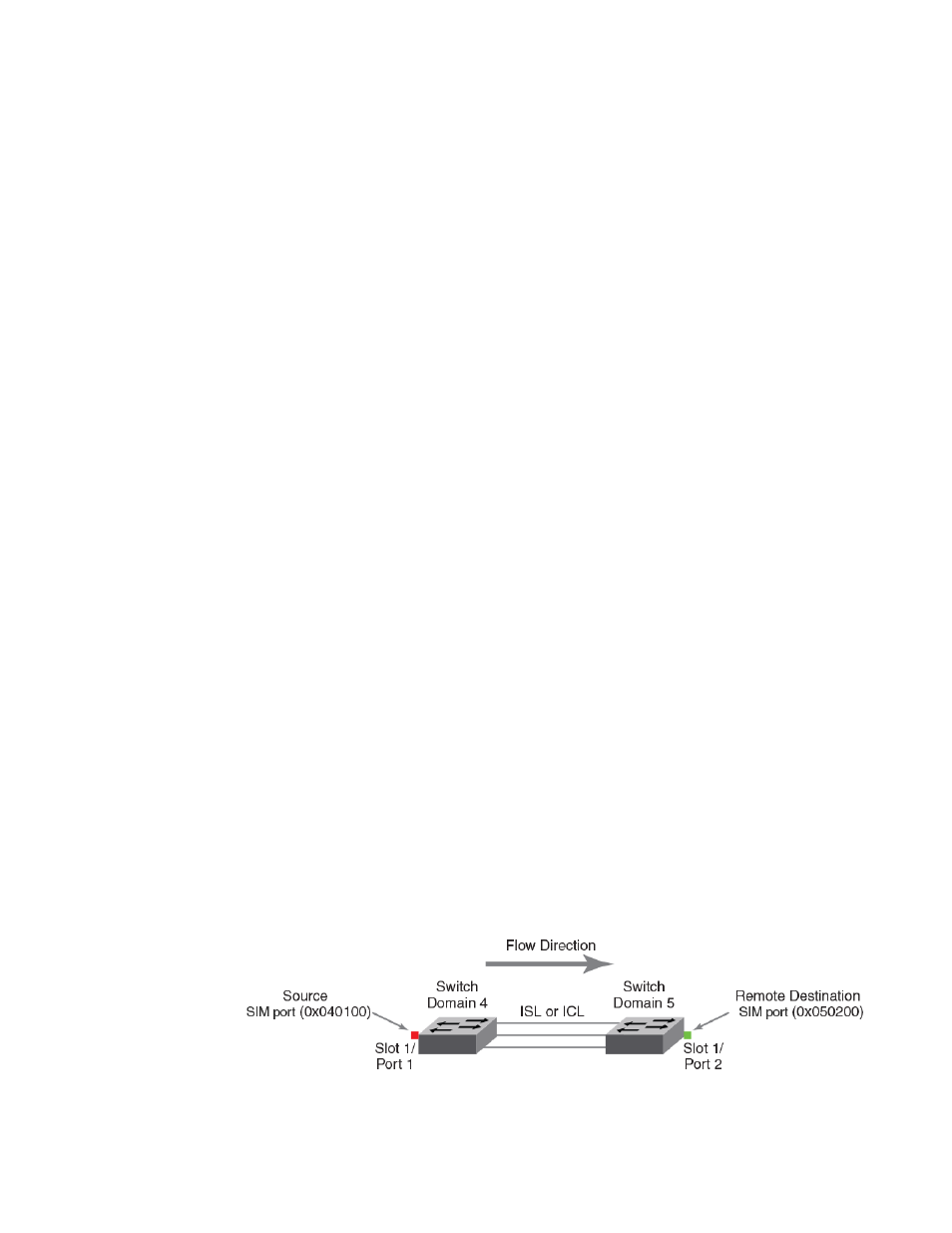

FIGURE 12 A flow from a specific source ID to a specific destination ID
Frame payload pattern
